2.2 GENERAL APPLICATION
2.2.1 USING INTEGRATED ANTENNA
Integrated antenna is applicable for small-scale rooms. This system is defaulted as integrated
antenna, which means the input signals are transmitted without using external mobile antenna. Refer
to the figure below:
SP-2110
Integrated Antenna
SP-2110
Integrated Antenna

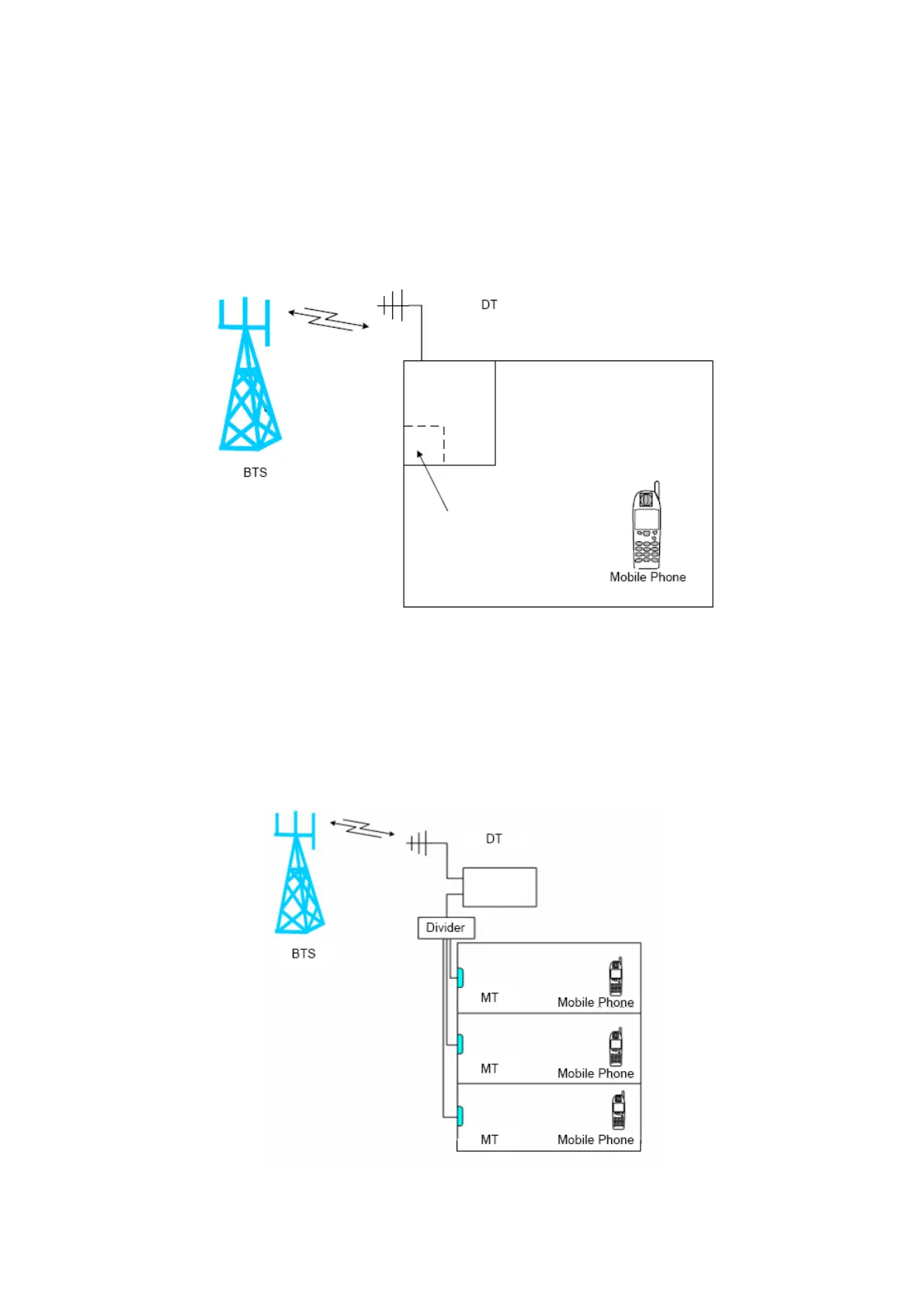

Fig 3: Application of Integrated Antenna
2.2.2 USING EXTERNAL ANTENNA (OPTIONAL)
For extended coverage, external antenna(s) can be used as per the coverage requirement. External
antenna is applicable for multi-room coverage. A power divider and the required quantity of
antennas are needed. In order to realize external antenna connection, a simple jumper cable is to be
installed within the system.
SP-2110SP-2110
Fig 4: Application of External Antenna
