4.1 MCU LED INDICATORS
On the front panel, locate beneath the removable LEDs cover are five diagnostic LEDs. There
indications are described in the following table separately:
Identifier Color Indication
HIGH Green RSSI indicator which indicates the input field strength.
ON= the DL input field strength is more than -40dBm.
OFF= the DL input field strength is less than -40dBm
MID Green RSSI indicator which indicates the input field strength.
ON= the DL input field strength is more than -50dBm.
OFF= the DL input field strength is less than -50dBm
LOW Green RSSI indicator which indicates the input field strength.
ON= the DL input field strength is more than -60dBm.
OFF= the DL input field strength is less than -60dBm
RUN Green Operation. ON= normal operation, flash= during initialization
OFF = no power supply / MCU operating problem
ALARM Red System Alarm, ON = Failure Alarm, OFF= operating normally
Table 6: LEDs colour and indication
Note: the LEDs LOW, MID and HIGH will be OFF when the input fileld strength is more than -30dBm,
while the ALARM will be ON to indicate an Input Power Over Alarm is generated.

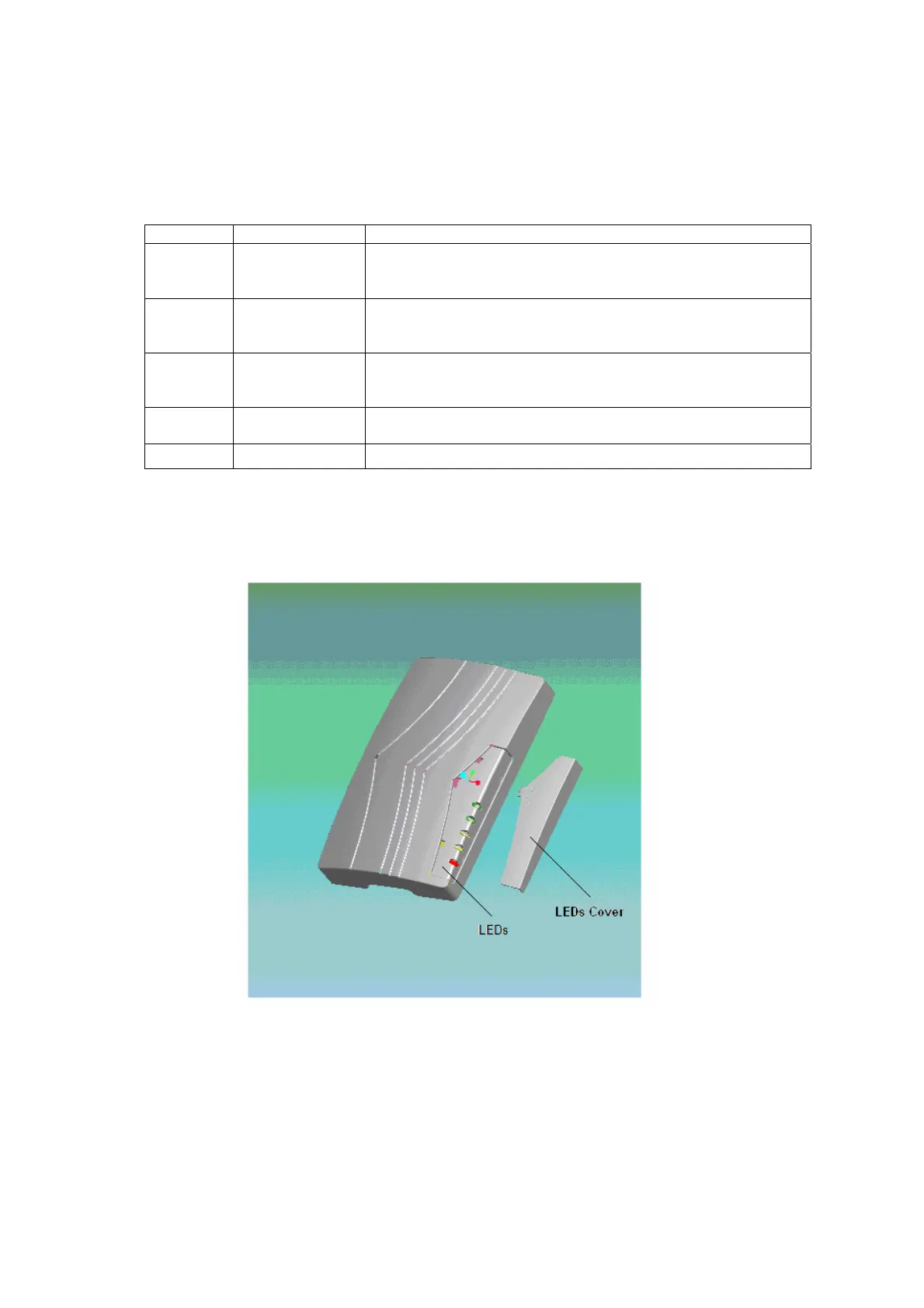

Fig 11: Location of LEDs
4.2 EQUIPMENT POWER-UP
Before applying power, make sure that the expected voltage, current, and power levels do not violate
any ratings. Double check all connections before applying power. Do not touch equipment internal
power units or make any changes to the equipment when the equipment is power up.
