MicroBlaster MB1000 Section 2: Getting Started
Comco Inc. 2-3 Issue Date: July 2016

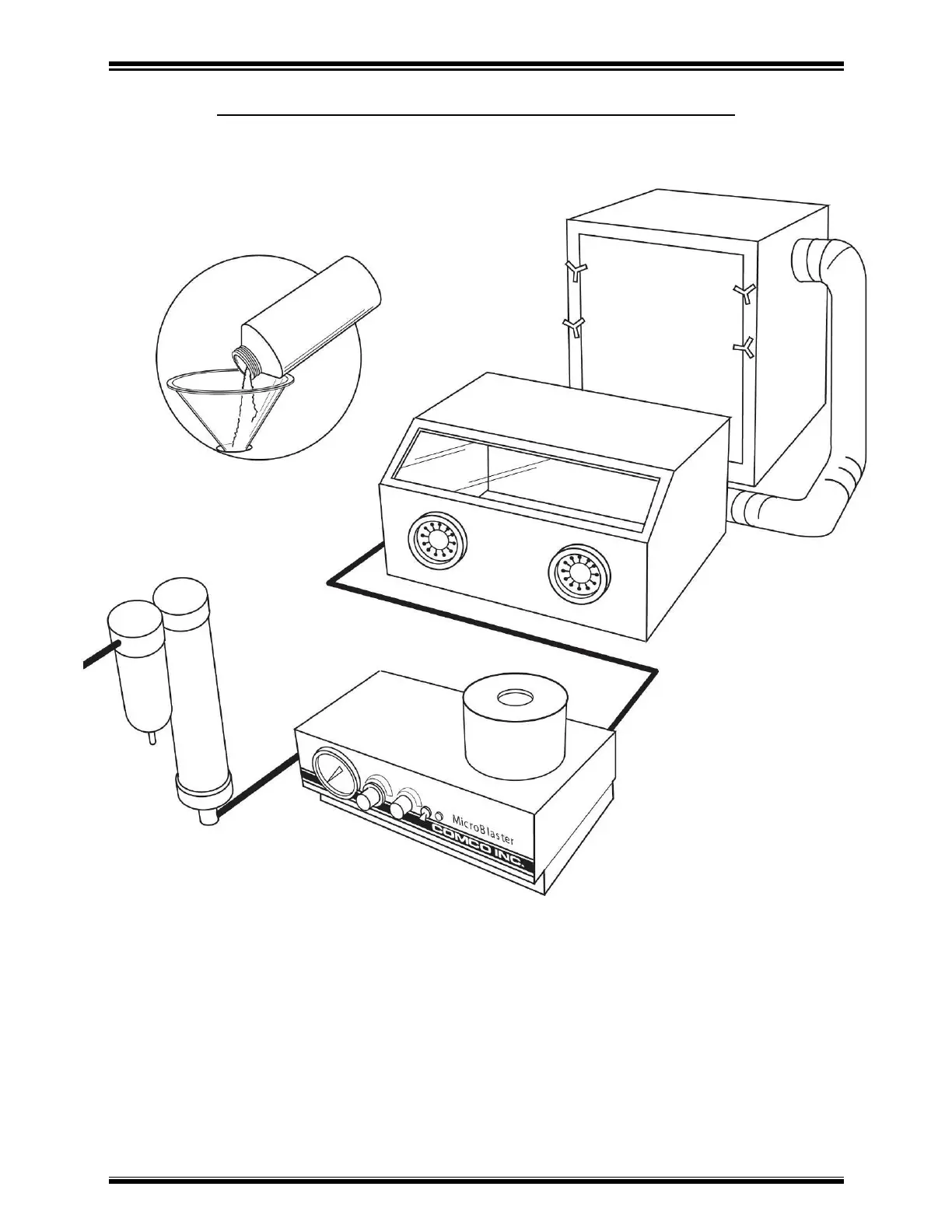

Figure 2-1: Micro-abrasive Blasting System Requirements
Electric Power
A source of 115 or 230 VAC, 50/60 Hz, capable of providing 100 watts is required for the
MB1000. If the WS2200 or WS6000 WorkStation is used, it requires 40 watts. The
DC2100 Dust Collector, if used, requires about 16 amps for its 1-HP motor. Actual
voltage required for each machine will be found on the nameplate.
