Comco MicroBlaster MB1000 - Figure 11: P;N MB1403-4 Cutting Speed Regulator

Appendix B: Drawings and Schematics MicroBlaster MB1000
Comco Inc. B-14 Issue Date: July 2016

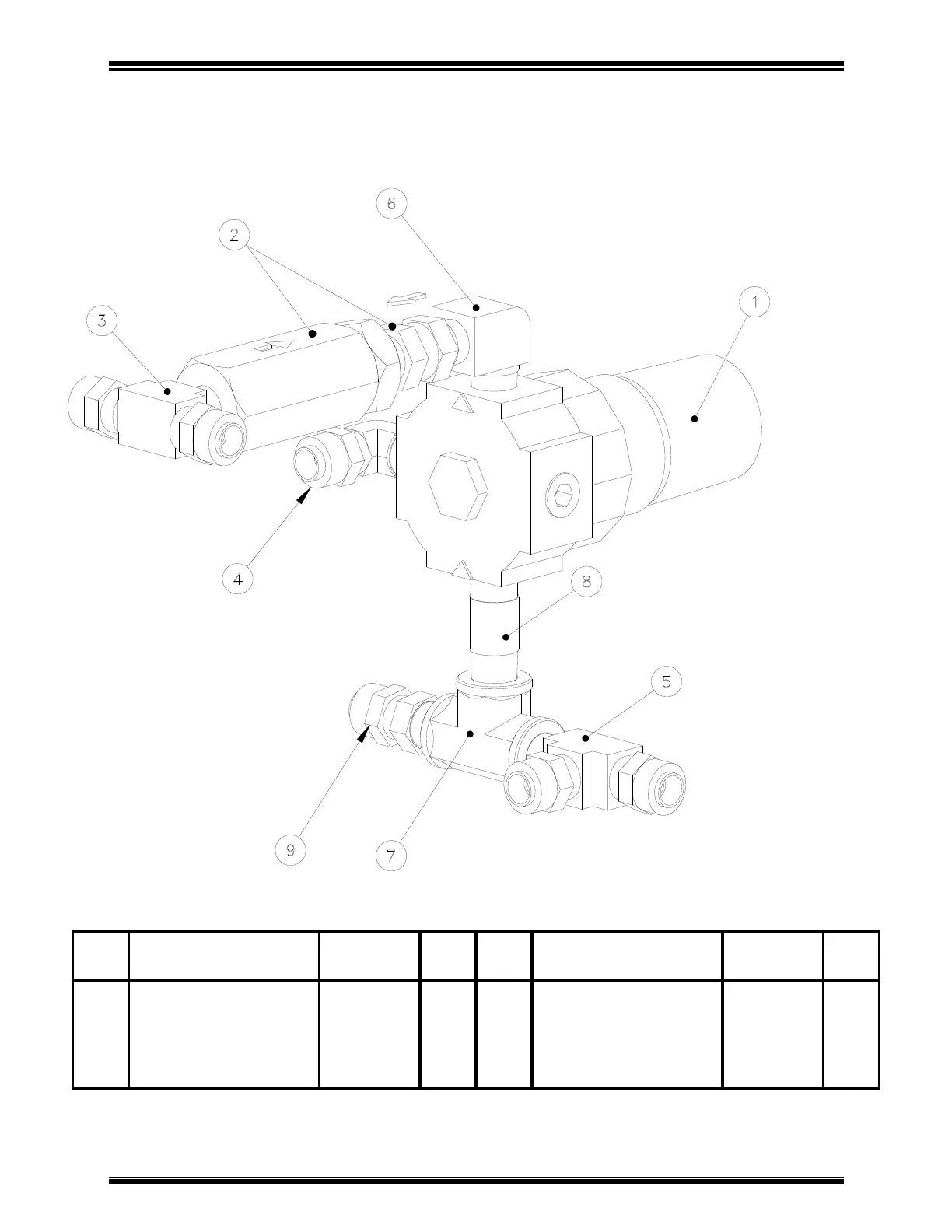

FIGURE 11: P/N MB1403-4 CUTTING SPEED REGULATOR
Item
No.
Description
Part No.
Qty
Item
No.
Description
Part No.
Qty
1
2
3
4
5
Pressure Regulator
Filter & Check Valve
Tee, Male 1/8 NPT
Elbow, 1/4T x 1/8NPT
Tee, 1/4T x 1/8 NPT
MB1376-1
MB1560
ST4018
ST4010
ST4011
1
1
1
1
2
6
7
8
9
Ell, Street, 1/8 NPT
Tee, Female, 1/8 NPT
Nipple, 1/8 NPT x 1.25
Conn. Male, 1/4Tx1/8P
ST4004
ST4036
ST4050
ST4006
1
1
1
1
