Comco MicroBlaster MB1000 - Figure 1: Front View

MicroBlaster MB1000 Appendix B: Drawings and Schematics
Comco Inc. B-3 Issue Date: July 2016

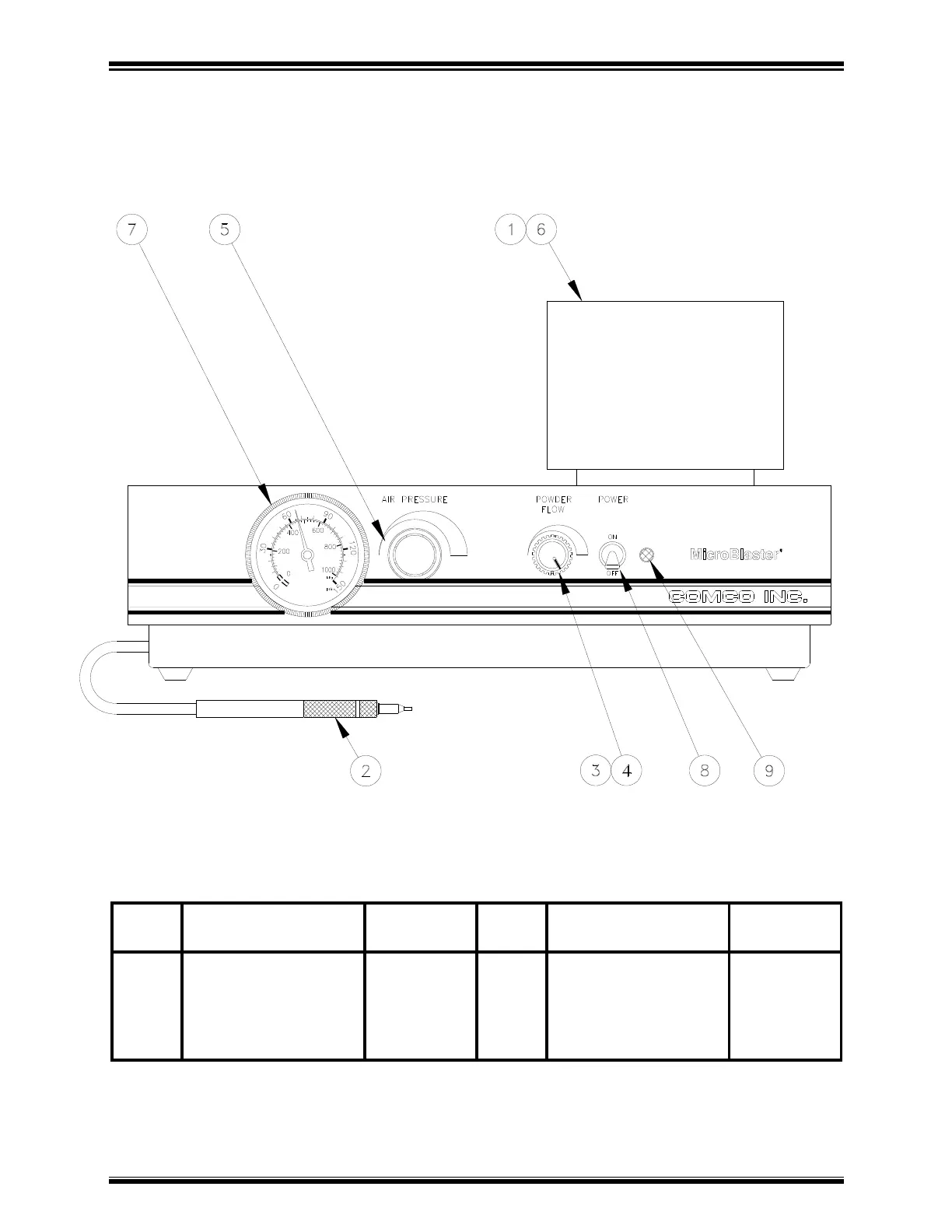

FIGURE 1: FRONT VIEW, MODEL MB1000
Item
No.
Description
Part #
Item
No.
Description
Part #
1
2
3
4
5
Tank Cover
Nozzle Handpiece
Knob Assy
Powder Adj Assy
Air Pressure Reg
MB1568
MB1083-3
MB1396
MB1397-1
[1]
6
7
8
9
Abrasive Tank
Gage, 2.5"
Power Switch
Indicator Lamp
[1]
MB1407-1
ST7003
ST7004
[1] See individual Part Drawing for Part Numbers.
