Comco MicroBlaster MB1000 - Figure 8: P;N MB1083-3 Handpiece Assembly

MicroBlaster MB1000 Appendix B: Drawings and Schematics
Comco Inc. B-11 Issue Date: July 2016

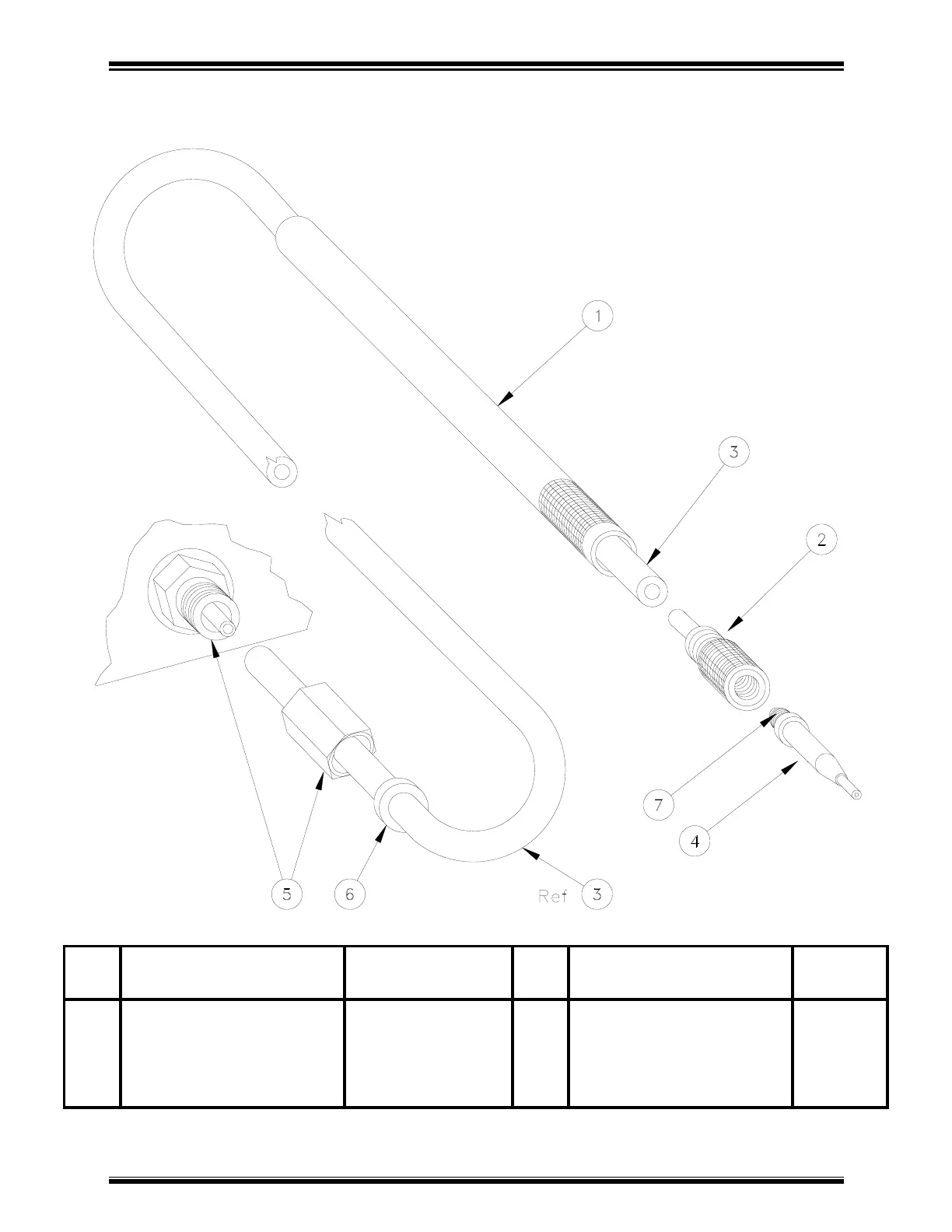

FIGURE 8: P/N MB1083-3 HANDPIECE ASSEMBLY
Item
No.
Description
Part No.
Item
No.
Description
Part No.
1
2
3
4
Handpiece Tube
Handpiece Nose
Abrasive Hose
Abrasive Nozzle
MB1012-6 [1]
MB1230-1 [1]
MB1233 [1]
MB15xx- (as req’d)
5
6
7
Quicknut , Connector (Ref)
Grommet, Rubber (Ref)
O-ring
MB1455
ST5010
ST5020
[1] MB1083-3 includes items 1, 2 & 3 only.
