Appendix B: Drawings and Schematics MicroBlaster MB1000
Comco Inc. B-12 Issue Date: July 2016

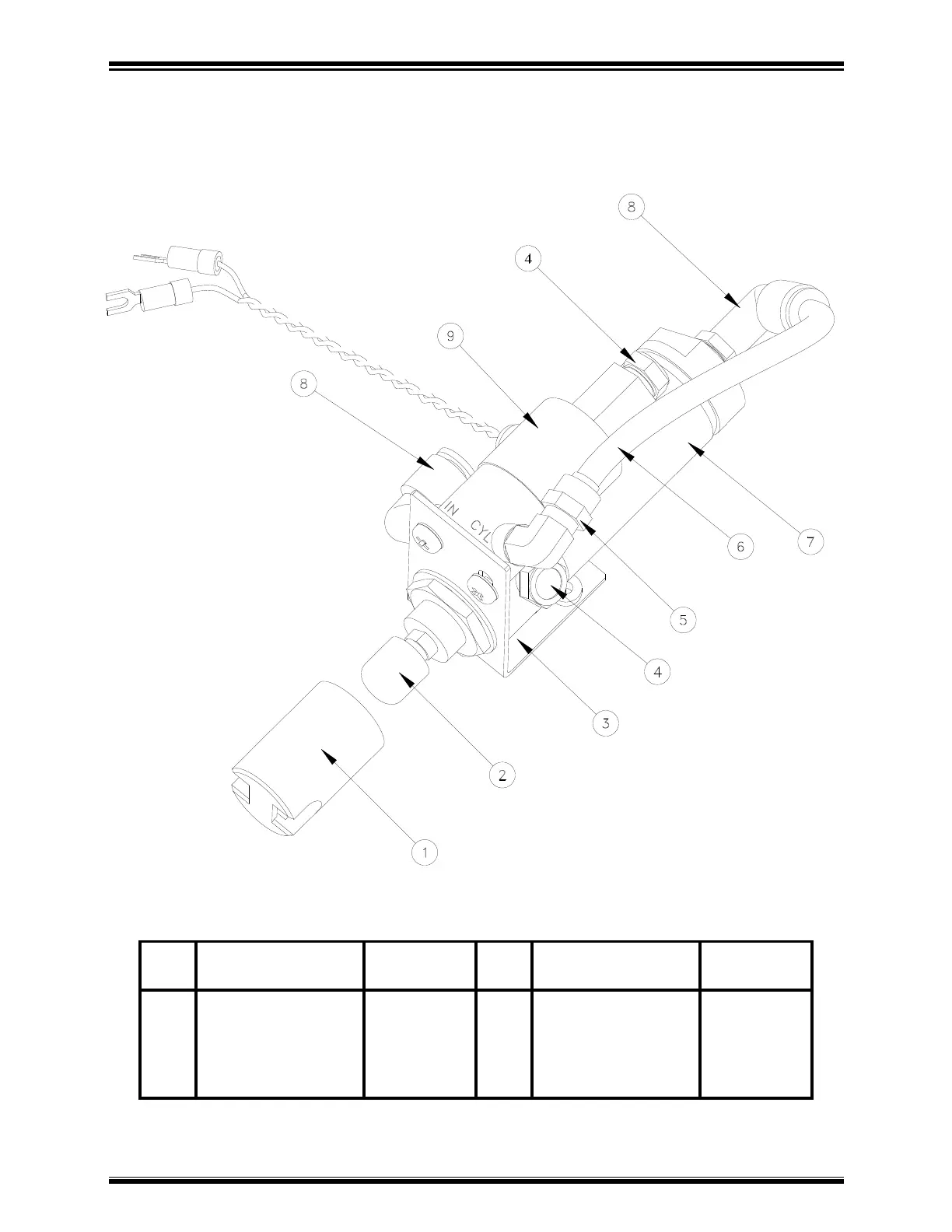

FIGURE 9: P/N MB1489-1
[1]
VENT PINCH ASSEMBLY
[1] MB1489-1 is 115V, MB1489-2 is 230V.
[2] ST6277-1 is 115V Valve, ST6277-2 is 230V Valve.
Item
No.
Description
Part No.
Item
No.
Description
Part No.
1
2
3
4
5
Tube, Pinch
Plunger, Pinch
Bracket, Pinch
Vent, Breather
Elbow, 1/4T x 1/8P
MB1282
MB1050-2
MB1384-1
ST4003
ST4010
6
7
8
9
Tube, ¼Tx.040Wall
Cylinder, ø1.06x1S
Elbow, ¼Tx1/8MPT
Valve, 3-Way,NC[2]
ST4012
ST6081
ST4144
ST6277-1
