MicroBlaster MB1000 Appendix B: Drawings and Schematics
Comco Inc. B-13 Issue Date: July 2016

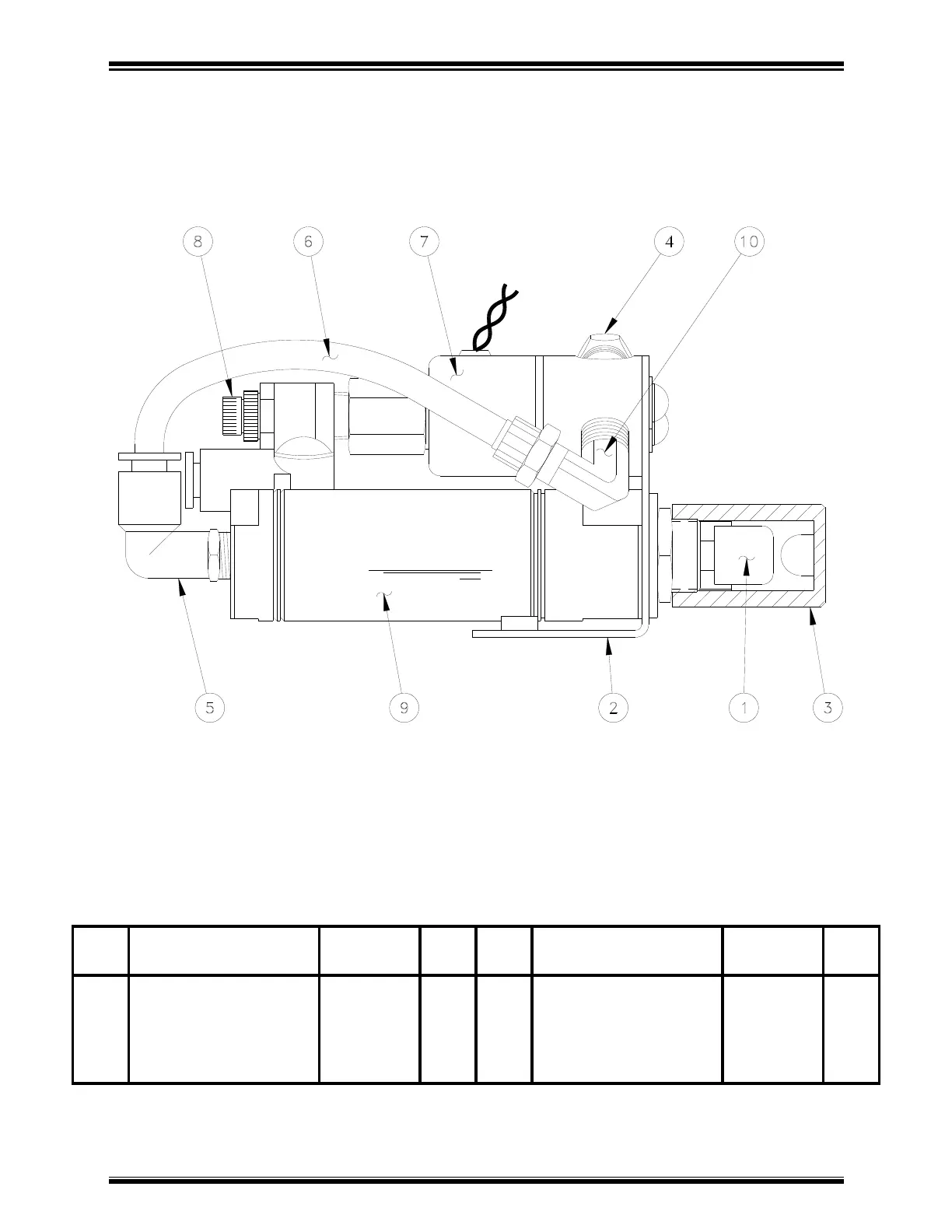

FIGURE 10: P/N MB1300-5
[1]
ABRASIVE PINCH ASSEMBLY
Item
No.
Description
Part No.
Qty
Item
No.
Description
Part No.
Qty
1
2
3
4
5
Plunger, Pinch
Bracket, Pinch
Tube, Pinch
Vent, Breather
Elbow, 1/4T x 1/8P
MB1050-2
MB1384-1
MB1282
ST4003
ST4144
1
1
1
2
1
6
7
8
9
10
Tube, .250 x .040
Valve, Sol, 115V [2]
Valve, FC w/Elbow
Cylinder, 1 1/8
Ell, Male 1/4T x 1/8P
ST4012
ST6003-1
ST6231
ST6081
ST4010
4.5"
1
1
1
1
[1] MB1300-5 is 115V, MB1300-6 is 230V.
[2] For 230V, Use Valve ST6003-5.
