MicroBlaster MB1000 Appendix B: Drawings and Schematics
Comco Inc. B-15 Issue Date: July 2016

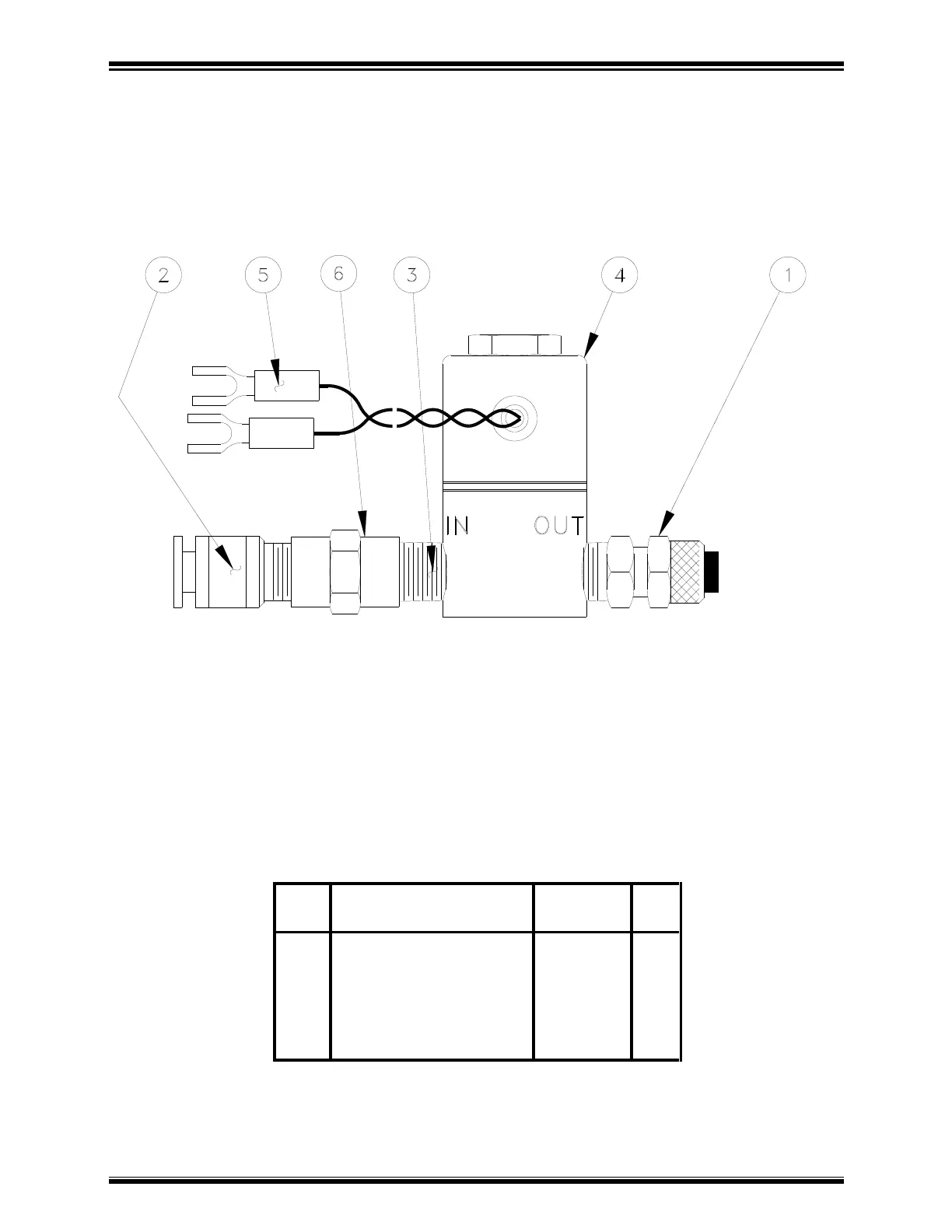

FIGURE 12: P/N MB1198-9
[1]
(-10) AIR VALVE ASSEMBLY
Item
No.
Description
Part No.
Qty
1
2
3
4
5
6
Conn. Male, 1/4T x 1/8P
Conn. Male, 1/4T x 1/8P
Nipple, Close, .125
Valve, Sol, 115V [2]
Term. Fork, Crimp
Coupling, .125P
ST4006
ST4166
ST4049
ST6013-1
ST7010-1
ST4029
1
1
1
1
2
1
[1] MB1198-9 is 115V, MB1198-10 is 230V.
[2] For 230V, use valve ST6013-5.
