Wiring diagrams

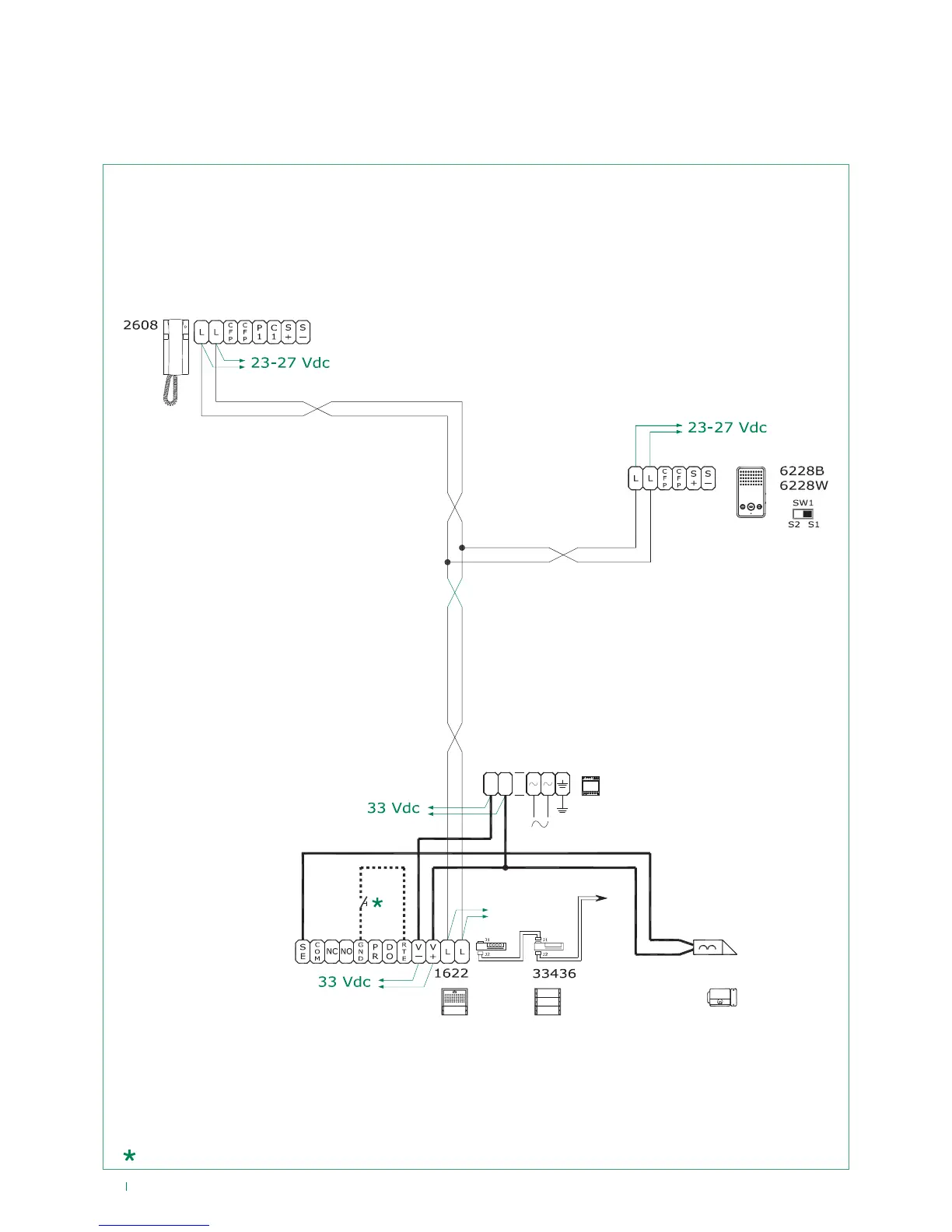

Door-entry phone system with 1 audio port, Ikall series. Switching on/voltage check with
system in standby.
-
+
1595
120-230V
26-28 Vdc
SB/TNP
Local lock release button.
