Comelit 1622 - Digital Call Module Art. 3360 Wiring; Safety Lock Wiring Diagram

Comelit 1622
20 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
16

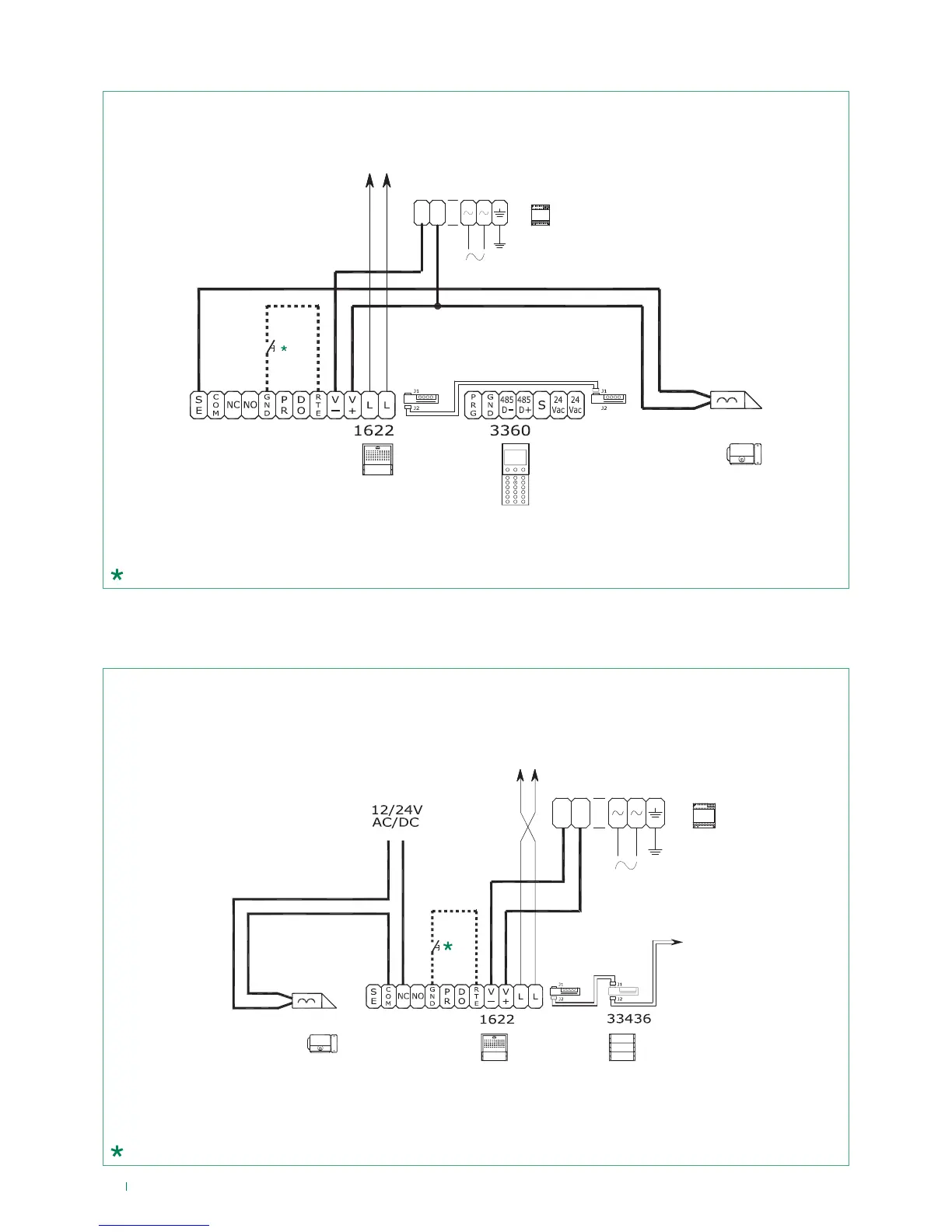

Wiring diagram for system with digital call module Art.3360
Wiring diagram with safety lock
Local lock release button.
1595
+
-
120-230V
SB/QNP
Local lock release button.
1595
+
-
120-230V
SB2/SNP
