Comelit Simplebus2 Mini 2738W/A - Product Description

3

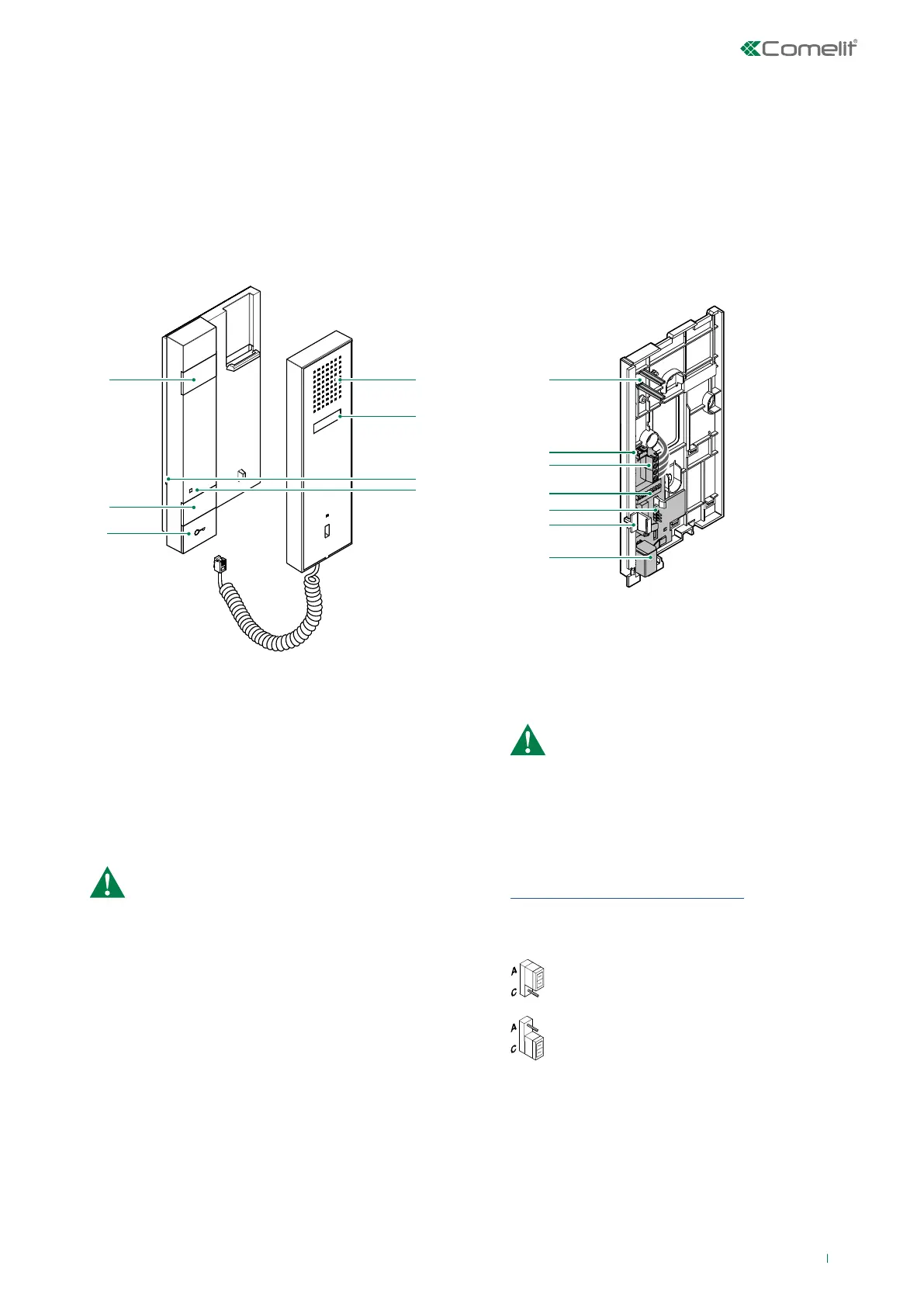

Description
1. Lock-release button
2. P1 button: Generic actuator/Switchboard call
3. Additional button
√ On card 2735, available to purchase separately.
4. Loudspeaker
5. Audio hook
Do not press and hold the audio hook while the
handset is lifted!
6. Ringtone volume adjuster
Top position = Ringtone at maximum volume
Central position = Ringtone at medium volume
Bottom position = Ringtone in silent mode (Privacy)
7. Red: silent mode enabled
8. Remove the 2 elements only if the additional
button on board art. 2735 is being used.
9. Connector for additional board art. 2735
10. Terminal block M1
CFP CFP Floor door call input
L L Bus line connection
11. DIP-switch for setting user code
Paragraph “Programming” on page 7.
12. JP1 jumper for selecting the Generic actuator or
Switchboard call function of button P1
A = Generic actuator
C = Switchboard call
13. 3-position ringtone volume selector
14. Handset connector
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Mini series door-entry phone with handset for Simplebus2 audio systems, equipped with call to floor, a key button and a button
for additional services such as intercom calls and calls to the porter switchboard. The call volume can be adjusted using the
relevant 3-position selector. Correct positioning of the handset on the base is facilitated by invisible magnetised panels.
The additional board art. 2735 is available to purchase separately, for an additional button with voltage free contacts and call
repetition.
1.
2.
3. 4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
