COMITRONIC-BTI AMX Series User Manual

Contactless safety sensor,
with two potential-free contacts
AMX 3, AMX 4, AMX 5
10

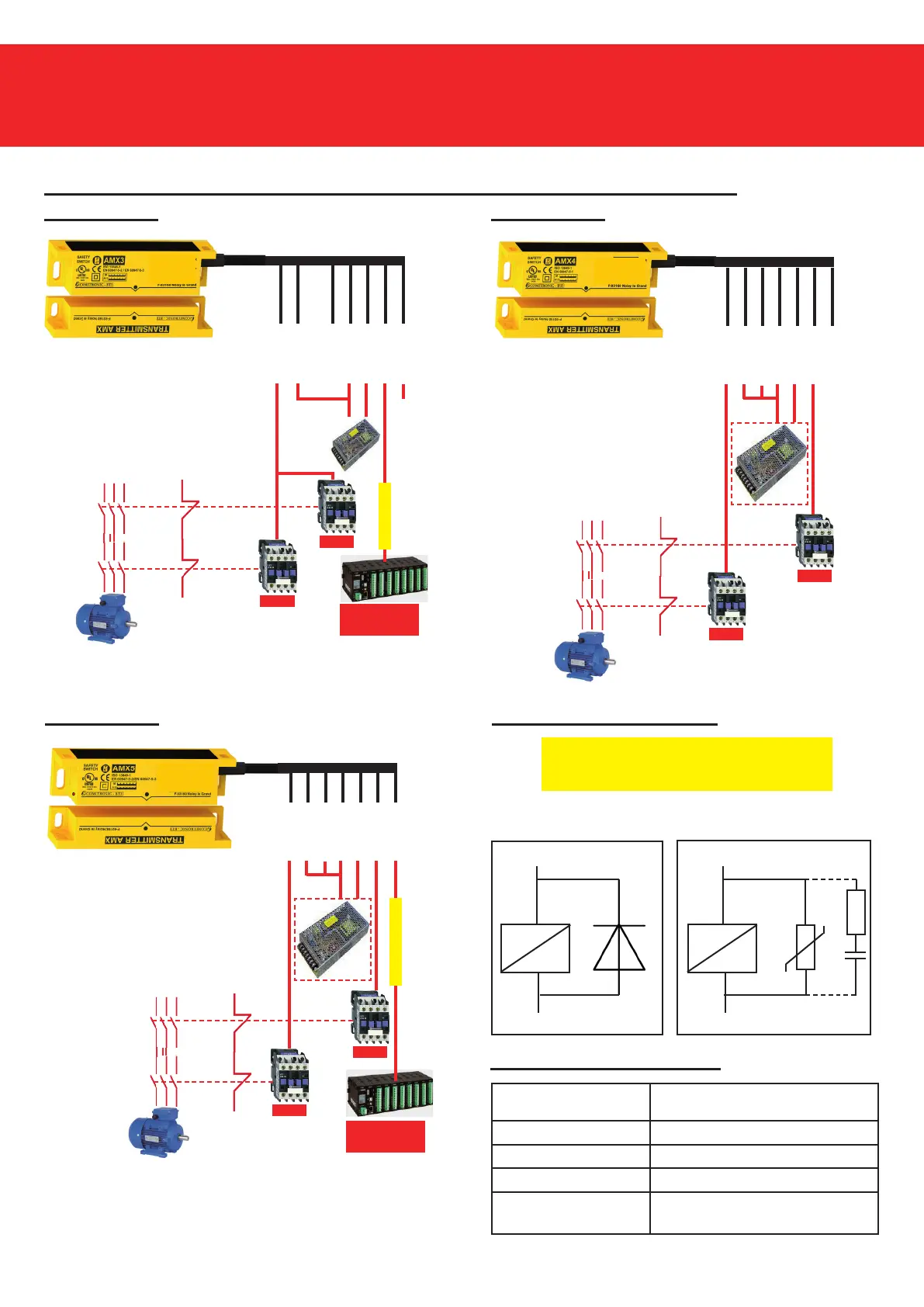

13. Installation principle with AMX3-4-5 for a PLd performance level
13.1. AMX3 13.2. AMX4
Black Red Orange
Gray
Brown
Blue
White
KM1
KM2
3F
24V
24V
Black Red Brown
Blue
White
Orange
+
KM1
KM2
testing
-
+
info
door open
Black Red Orange
Gray
Brown
Blue
White
KM1
KM2
3F
24V
24V
testing
info
door open
3F
24V
testing
13.3. AMX5 14.Preserving contact
Inductive loads such as contactors must
be equipped with a voltage limiter (diode,
lter, transil).
For DC For AC
+
-
~
~
or
NC PNP output
Gray
cable 3, 6, 12 m
cable 3, 6, 12 m
cable 3, 6, 12 m
NC contact
15. UL508 Compliance
Wiring Only copper 60/75° C
(140/167° F)
Size of wires 24 AWG
Clamping force 0.68 Nm
Safety contact 2A / 250V pilot duty
Diagnostics
contact
24 V / 250 mA General use
