7

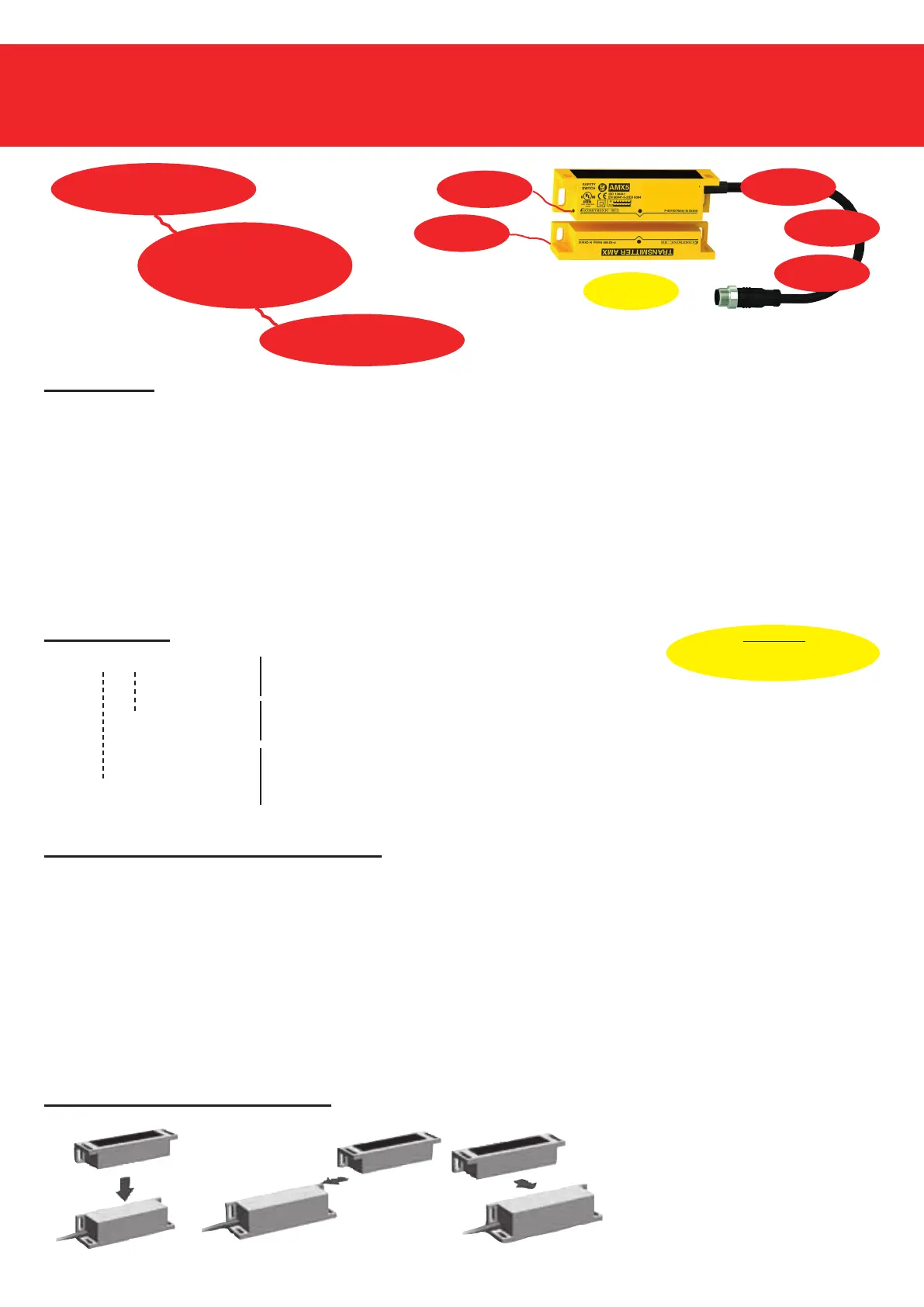

Contactless safety sensor,
with redundant duty pilot contacts
AMX 3, AMX 4, AMX 5
2.Benets
• Controls the opening of doors and movable guards on dangerous machines
• Finger protection thanks to a limited gap <14 mm
• Flush-mounted product, concealable behind a 6 mm aluminum/stainless steel wall
• Direct control of dangerous movement with 2 NO potential-free safety contacts
• 1 NC diagnostic output, independent of the number of sensors in sequence
• LED indication: yellow = active, o = inactive, independent of the number of sensors
• AMX5-MKT: connection to M12/8p connector compatible with T-SPLITTER
• Stainless steel 316L Version: IP 69K, laser etched marking, traceability through mechanical stamping
• PA6 version: IP 68
3. Item code
AMX-o-o-o------------- MKT : PUR cable 50cm M12 connection
xxM : PVC cable connection in meters: xx = 3, 6, 12
-------------------- OX : Stainless steel 316L Version (does not exist for AMX4)
- : PA6 Plastic PA6 version
3 : 1 NO safety contact and one NC auxiliary contact
-------------------------- 4 : 2 NO safety contacts
5 : 2 NO safety contacts and one NC auxiliary output
Connection
M12/8p
Suitable for applications
of machine safety
Stand alone solution
IEC 62061: SIL 2
ISO 13849-1: PL d
2 contacts
redundant
LED
diagnostic
1 output
auxiliary
A unique solution
in the international market
Acotom Process
3
Acotom
3: serialization
up to PL e with a
security box/API
Double leg
bracket
4. Precautions for Use/Assembly
• The box must be installed in an area where it is impossible for body parts, such as ngers or
hands to pass through the door into a hazardous area.
• This product should not be used as a mechanical stop between transmitter and receiver. Leave a
minimum space of 1 mm between transmitter and receiver.
• Use the supplied stainless steel washers and our optional OBH4 stainless steel tamper-proof
screws.
• This product should be tested once a year according to the "Test Instructions" chapter described
later in the manual. Each test must be formalized and archived.
5. Wide alignment tolerance
OX Version
Stainless steel mirror-polished 316L
special agri-food
Conforms to
ISO 14119
X
Y
Z
X (PA6) sao=15.7mm
sar=17.4mm
Y (PA6) sao=13.1mm
sar=15.9mm
Z (PA6) sao=8.7mm
sar=8.8 mm
