COMITRONIC-BTI AMX Series User Manual

Associated locking devices
for guards: ISO 14119
3. The ACOTOM process
3.1. The birth of a revolutionary technology
We put the rst contactless encoded security sensor with a revolutionary process on the market in 1993.
It uses a double-coded magnetic eld and a diagnostic output, independent of the safety contacts, which
traces the product's position. Today, this device is still leading thanks to many benets that remain
unmatched to date; it is called the "ACOTOM process3".

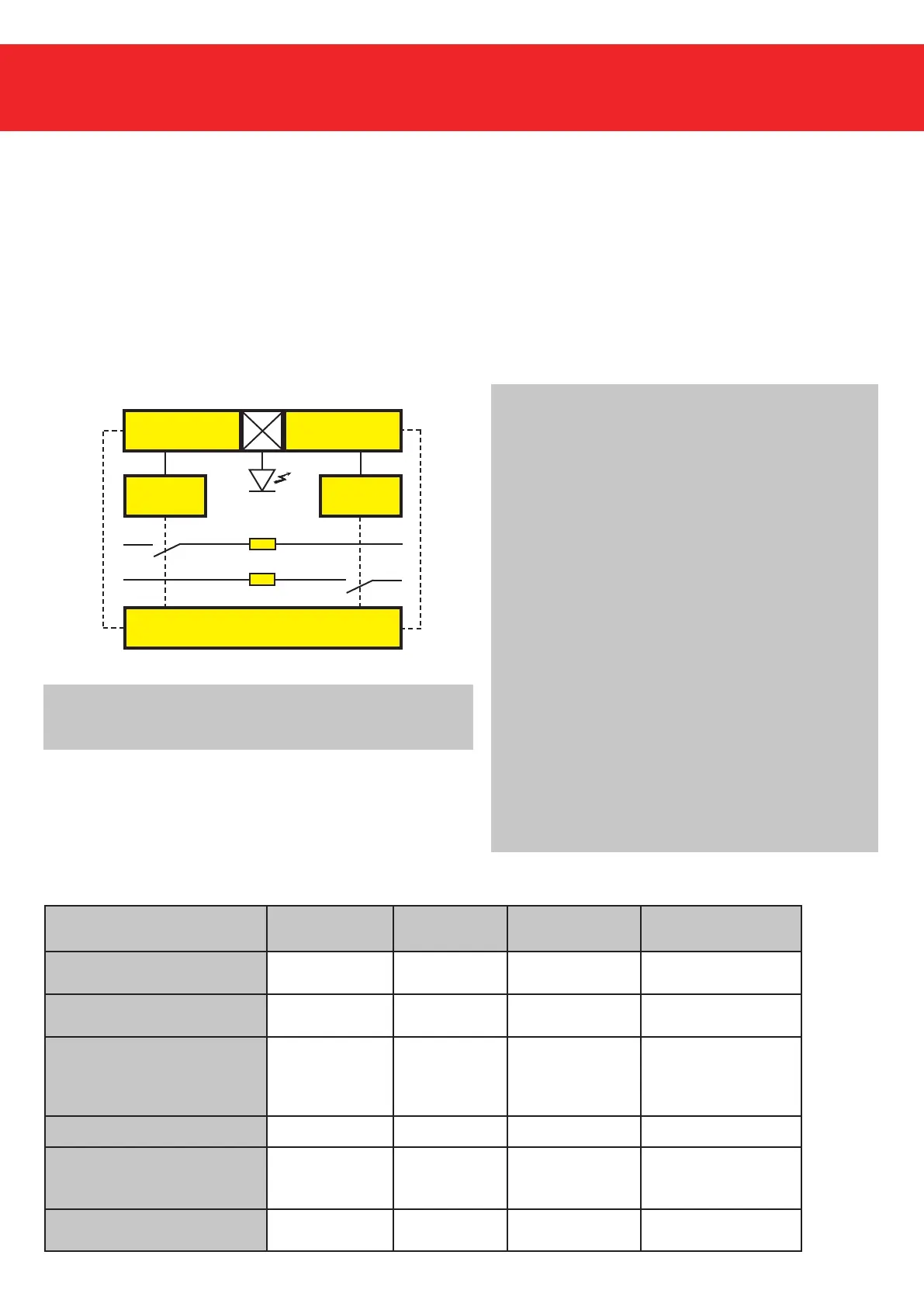

3.2. Principle of the ACOTOM process3
The system consists of:
- Two inviolable and independently coded ma-
gnetic eld detectors (redundancy)
- A hysteresis control circuit at 2 mm
- A circuit that guarantees a distance of less
than 14 mm, for the prevention of the passage
of the ngers
- An automatic periodic safety check
- Protection of the safety contacts at 1/4 of their
breaking capacity to avoid any sticking
- A LED which indicates that the decoding is
done, without any anomaly
- A diagnostic output that indicates an error or
that the door is not in the closed position
- Serialization up to 65 sensors without loss of
performance level
- Direct control of dangerous movement without
using an intermediate safety box, with PL d and
SIL 2.
3.3. BenetsoftheACOTOM3 process
5
Criteria Sensor with
ACOTOM3
Reed switch Mechanical key
switch
RFID sensor
OSSD
Distance with ON action 8 mm 5 mm 5 mm Depends on the envi-
ronment ~ 20 mm
Distance with OFF action 10 mm 15 to 20 mm 10 mm Depends on the envi-
ronment ~ 20 mm
Direct drive of movement Yes
pilot duty
2A/50V AC/DC
No Yes
pilot duty
2A/50V AC/DC
Subject to conditions
otherwise external
safety module
DC: 50mA~250mA
Independent diagnostic output Yes + LED No No Yes + LED
Tolerance to misalignment High Average
(unsuitable for
sliding doors)
Weak
(risk of damage)
High
DS (indicative)
Finger protection
320 mm
Yes
490 mm
No
330 mm
No
650 mm
Possible
!!! SD: Safety distance !!!
SD is the safety distance for the positioning of a door
relative to the dangerous movement.
DECODING
2
DECODING
1
RELAY RELAY
SELF-MONITORING
