COMITRONIC-BTI AMX Series User Manual

Contactless safety sensor,
with two potential-free contacts
AMX 3, AMX 4, AMX 5
8
6. Assembly instructions
a) Drill the holes of the mounting bracket at F= 4.5
mm, with a center distance of 83 mm
b) Use optional stainless steel BH4 tamper-proof
c) Use the stainless steel washers supplied
d) Once the door or casing is closed, the distance
between the transmitter and the receiver must be at
least 1 mm. This product should never be used as
a mechanical stop.
e) Each element can be hidden behind a metal wall
with a thickness of 3 mm
f) The bending radius of the cable must be greater
than 50 mm.
g) Connect the cord according to the diagrams in
the manual
h) Test the installation
25
16
24.5
12.5
16.5
9.5
24.5
15
92
F 6
83
7. Annual periodic inspection
This product should be checked periodically at
least once a year. Record the results on a form:
Example of an assembly on a door:
• Move the transmitter 12 mm
• Observe that the LED turns o󰀨
• Check that the safety contacts are open
• Check that the auxiliary contact is closed
• Approach the transmitter at 8 mm
• Observe that the LED lights up green
• Check that the safety contacts are closed
• Check that the auxiliary contact is open
• Close access
Safety line
(5 VDC/10 mA minimum)
AC1-AC15-DC13:
50 VAC / DC / 2 A
Auxiliary output NC: 24 V / 250 mA
Diagnostic output
External protection
Internal protection
250 mA fuse
Detecting distance (mm)
PA6 / 316L X
PA6 / 316L Y
PA6 / 316L Z
Classication
sao=15.7/9,sar=17.4/14.8
sao=13.1/14.4, sar=15.9/16.2
sao=8.7/7.5, sar=8.8/8.4
M3C25AU1
Weight PA6 3/6/12m
Weight OX 3/6/12m
335g / 515g / 810g
605g / 785g / 1080g
Power supply
IEC 60204-1 : PELV/SELV
24 VAC -15% / +10% 50/60Hz
24 VDC -15% / +10%
Operating current 50 mA (DC) / 115 mA (AC)
Protection Class Protection II, Pollution 3
Room temperature -25°C to +60°C (-13° to +140° F)
Water tightness PA6: IP 68, OX: IP69K, M12: IP67
Vibration resistance 10~55 Hz, 1.5 mm double amplitude
Shock resistance 10 g
Frequency switching < 2 Hz
Response time < 400 ms (Ton)
Risk period <15ms(To󰀨)
10.Generalspecications

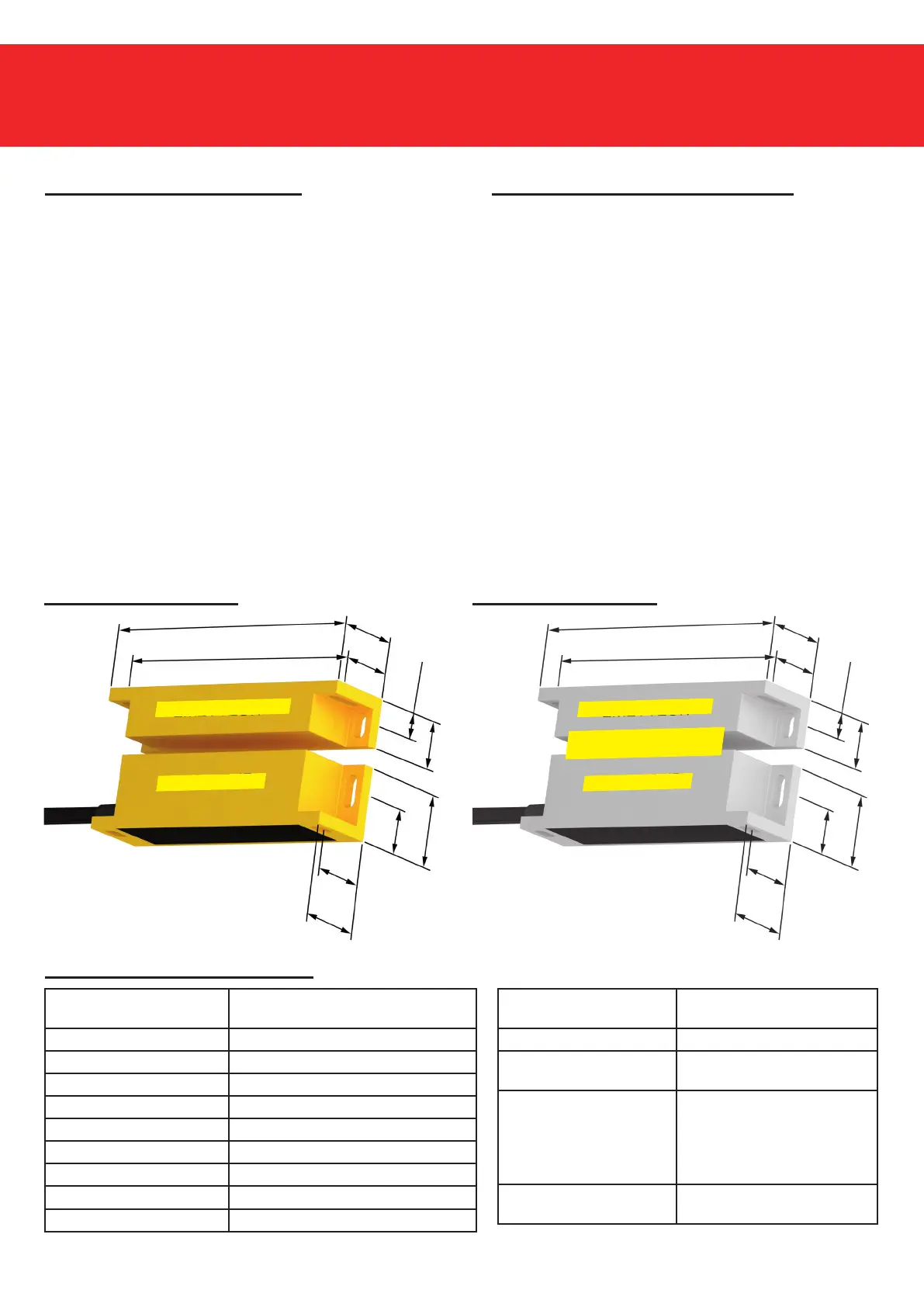

8. PA6 Dimensions
25
16.5
28
20
18.5
12.5
28
20.5
92.5
F 6
83
9. OX Dimensions
The overall side dimensions
are given at +/- 0.5mm
TRANSMITTER
RECEIVER
TRANSMITTER
RECEIVER
