Dante interface 2x2

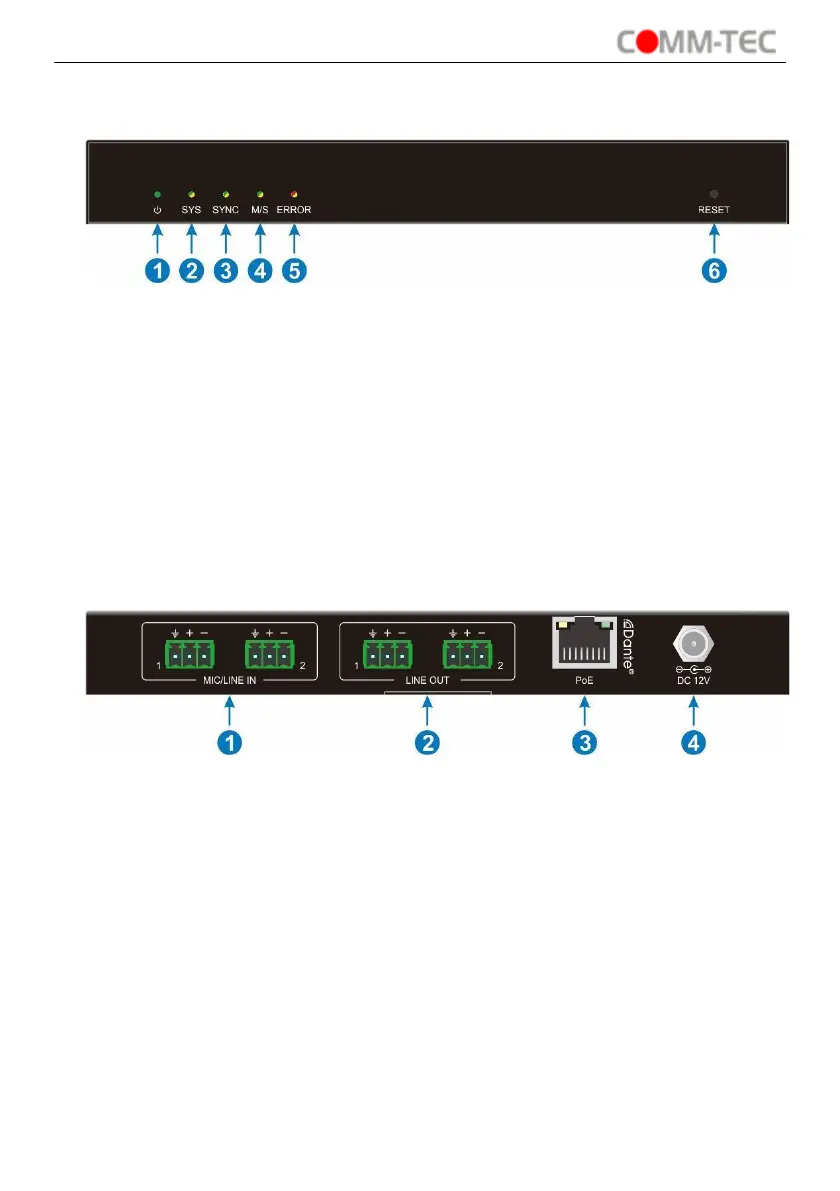

Panel Description

2.1

Front Panel

① POWER LED: Illuminates green when power is applied.

② SYS LED: Illuminates yellow when system starts, and green when system is ready.

③ SYNC LED: Illuminates green when the clocks are synchronized between

master and slave devices, and yellow when the clocks are out of sync.

④ M/S LED: Illuminates yellow when the unit works as master device, and green

when it is as slave master.

⑤ ERROR LED: Illuminates yellow when known errors occur, and red when unknown

errors occur.

2.2

Rear Panel

① MIC/LINE IN: 2 x Balanced audio input.

② LINE OUT: 2 x Balanced audio output.

③ Dante: Dante® Ethernet interface connector.

④ DC 12V: DC connector for DC12V1A power adapter connection.
