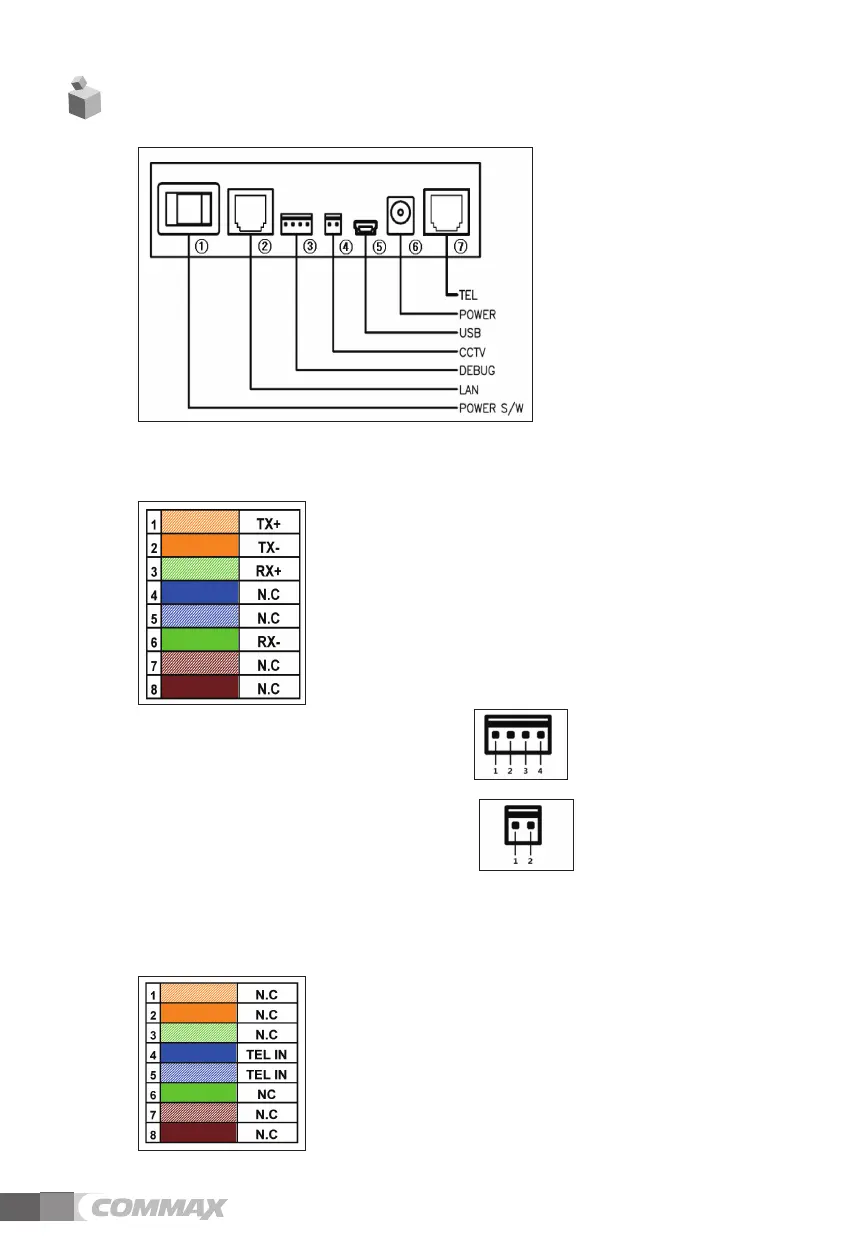

10. Wiring.
①
power switch : On/ Off
②
Local port : Local network connectable
③
Consol Port : Consol Debug
1 : TX, 2 : GND, 3 : RX, 4 : VCC
④
CCTV : CCTV Image check and saving function
1 : VIDEO_OUT, 2 : GND
⑤
USB Port : USB Debug
⑥
Power DC JACK : Input power (DC 14V / 2.1A)
7 Telephone Port : Local Telephone
