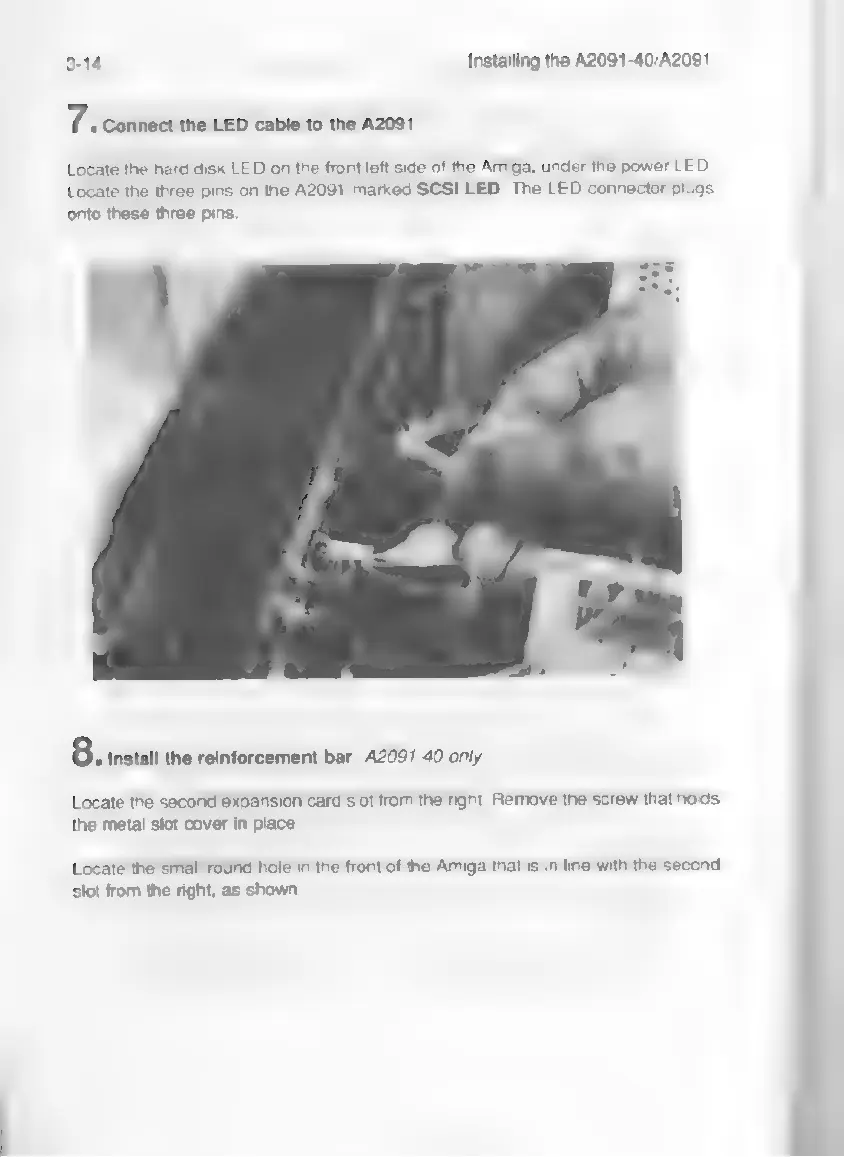

7. Connect the LED cable to the A2091
Locate
the
hard
disk
LED
on
the
front
left
side
of
the
Amiga,
under
the
power
LED.
Locate
the
three
pins
on
the
A2091
marked
SCSI
LED.
The
LED
connector
plugs
onto these three pins.
8.
Install
the
reinforcement
bar
A2097-40
only
Locate the second expansion card slot from the right. Remove the screw that holds
the metal slot cover in place.
Locate
the
small
round
hole
in
the
front
of
the
Amiga
that
is
in
line
with
the
second
slot
from
the
right,
as shown.
