Installing

the

A2091-40/A2091

3-13

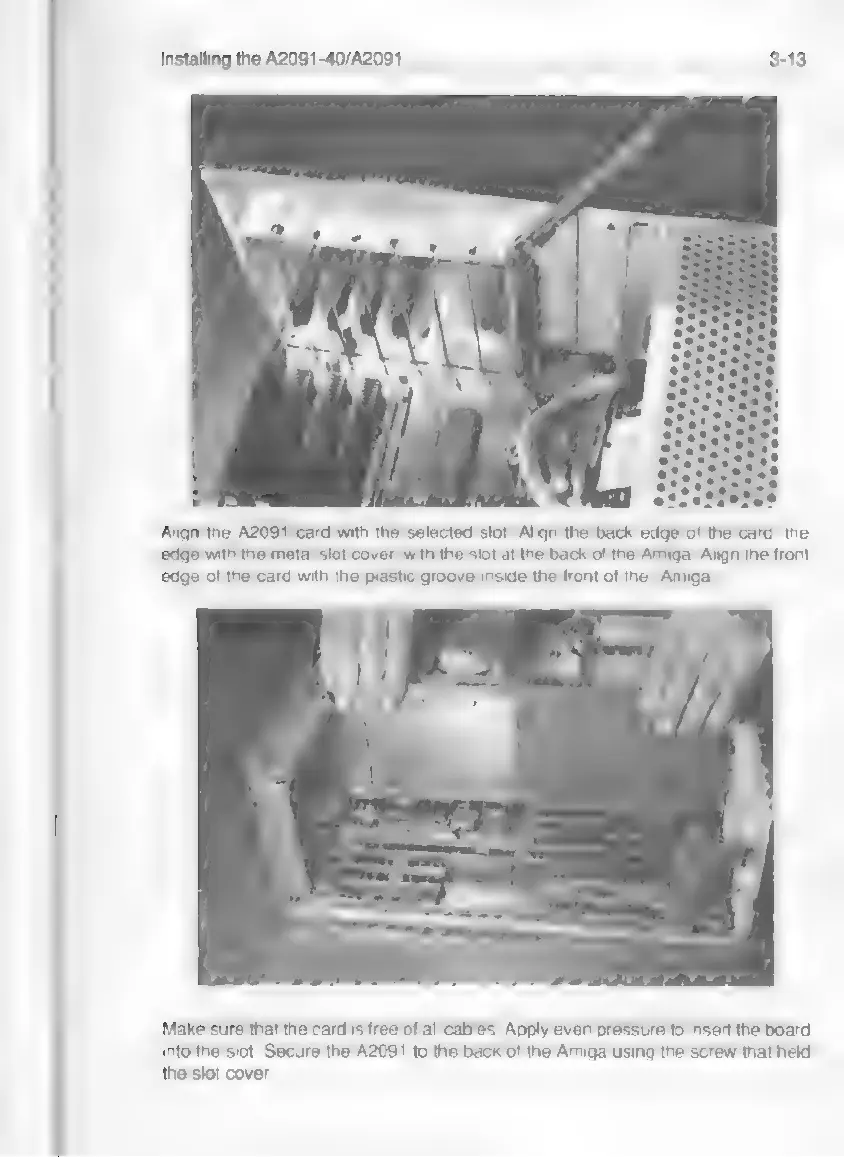

Align

the

A2091

card

with

the

selected

slot.

Align

the

back

edge

of

the

card,

the

edge

with

the

metal

slot

cover,

with

the

slot

at

the

back

of

the

Amiga.

Align

the

front

edge

of

the

card

with

the

plastic

groove

inside

the

front

of

the

Amiga.

Make

sure

that

the

card

is

free

of

all

cables.

Apply

even

pressure

to

insert

the

board

into

the

slot.

Secure

the

A2091

to

the

back

of

the

Amiga

using

the

screw

that

held

the

slot

cover.
