3-12

E

Installing

the

A2091-40/A2091

6.

instan

the

A2091

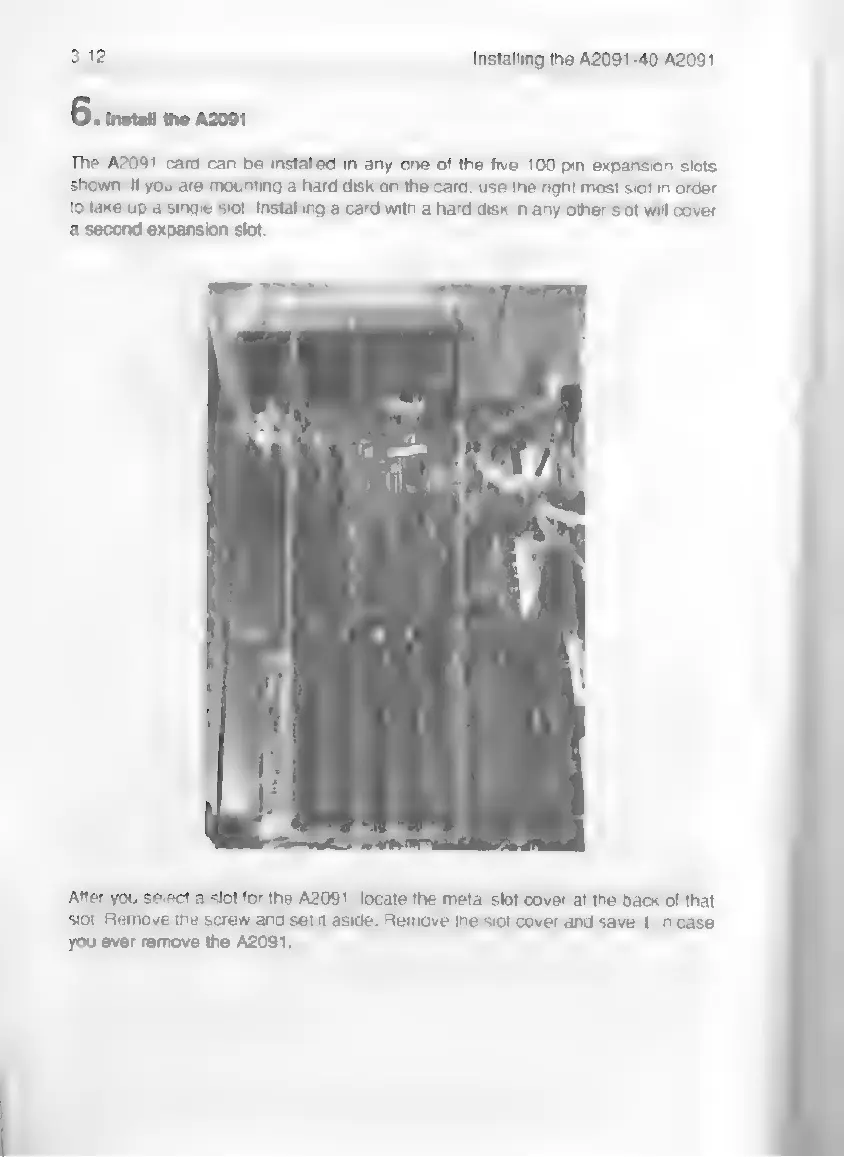

The

A2091

card

can

be

installed

in

any

one

of

the

five

100-pin

expansion

slots

shown.

If

you

are

mounting

a

hard

disk

on

the

card,

use

the

right

most

slot

in

order

to

take

up

a

single

slot.

Installing

a

card

with

a

hard

disk

in

any

other

slot

will

cover

a

second

expansion

slot.

i

Í

1a

az

i

V

ey

|

|

|

After

you

select

a

slot

for

the

A2091,

locate

the

metal

slot

cover

at

the

back

of

that

slot.

Remove

the

screw

and

set

it

aside.

Remove

the

slot

cover

and

save

it,

In

case

you

ever

remove

the

A2091.
