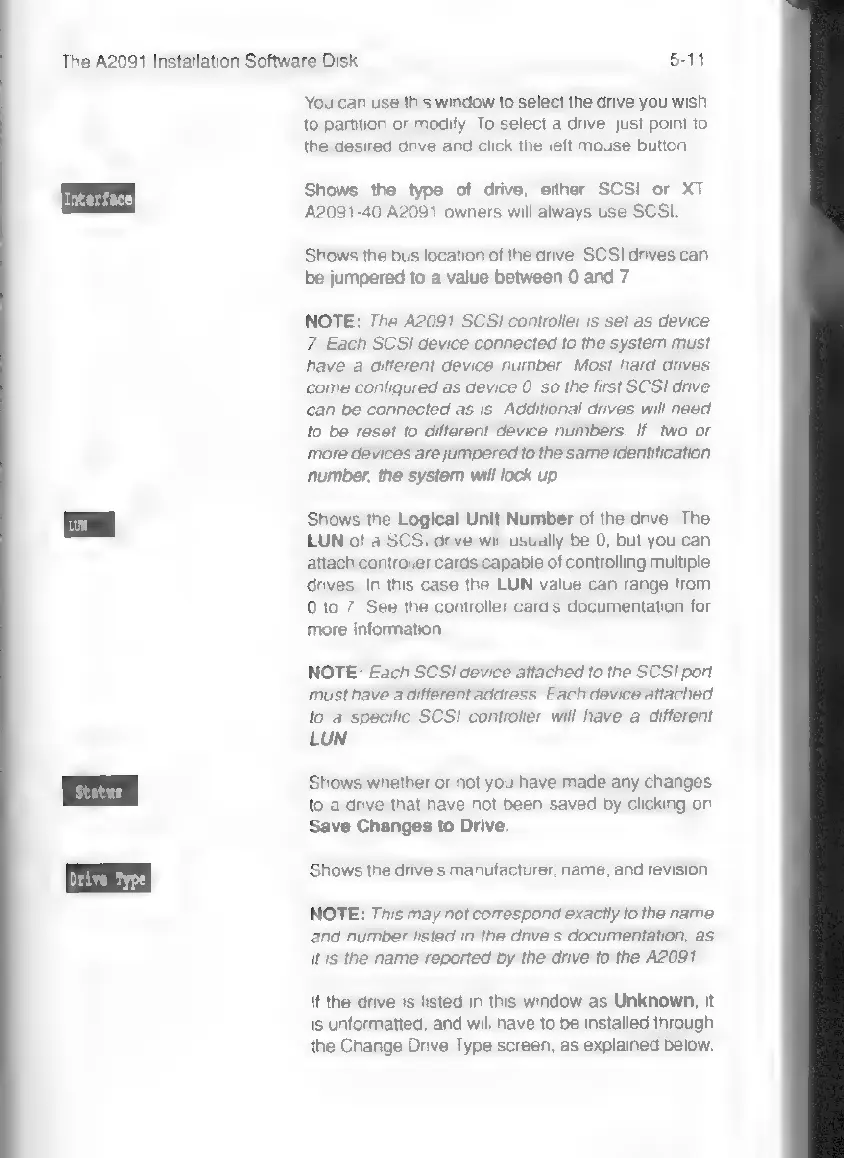

The A2091 Installation Software Disk 5-11
You can use this window to select the drive you wish
to partition or modify. To select a drive, just point to
the desired drive and click the left mouse button.
Shows the type of drive, either SCSI or XT.
A2091-40/A2091 owners will always use SCSI.
Shows the bus location of the drive. SCSI drives can
be jumpered to a value between 0 and 7.
NOTE: The A2091 SCSI controller is set as device
7. Each SCSI device connected to the system must
have a different device number. Most hard drives
come configured as device 0, so the first SCSI drive
can be connected as is. Additional drives will need
to be reset to different device numbers. If two or
more devices are jumpered to the same identification
number, the system will lock up.
Shows the Logical Unit Number of the drive. The
LUN of a SCSI drive will usually be 0, but you can
attach controller cards capable of controlling multiple
drives. In this case the LUN value can range from
0 to 7. See the controller card's documentation for
more information.
NOTE: Each SCSI device attached to the SCSI port
must have a different address. Each device attached
to a specific SCSI controller will have a different
LUN.
Shows whether or not you have made any changes
to a drive that have not been saved by clicking on
Save Changes to Drive.
Shows the drive's manufacturer, name, and revision.
NOTE: This may not correspond exactly to the name
and number listed in the drive's documentation, as
it is the name reported by the drive to the A2091.
If the drive is listed in this window as Unknown, it
is unformatted, and will have to be installed through
the Change Drive Type screen, as explained below.
