Section 2
Installation
2.1 Unpack Dehydrator and Inspect for Shipping
Damage
• Carefully remove packing material.
• Check the dehydrator for shipping damage
such as dents or loose parts.
• Open the dehydrator front door and check
for loose wires, hoses, or components.
• Refer to the wiring schematic (Figure 5 and
13) for proper placement.
If there is damage or if there are any other
problems, contact CommScope Technical
Service. Telephone numbers are listed in
Customer Support Section 9.
If everything looks correct, close the dehydrator
front door.
2.2 Perform Pre-System Startup Test
Make sure power switch is in the OFF position.
Plug the dehydrator into a proper electrical
outlet.Properinputpowerisdenedinthe
specications,Section8.Donotconnect
the air lines on the unit at this time. Turn the
dehydrator on. The pressure gauge on the
door should read 0 psig. As the unit warms
up,checkthelterbowls(SeeFigures1)to
ensure condensate is being released and not
building up in each bowl. Check the pressure
gauge at the top or bottom of the membrane
tube. Verify it is at 90 psig ±5psig. Adjust the
valve if necessary to show 90 psig. Check the
air output port at the top of the unit to make sure
thatairisowingout.Ifproblemsexist,review
troubleshooting procedures in Section 6 or
consult CommScope Technical Service. If these
items check out, turn power switch off, unplug
the unit and close the dehydrator front door.
2.3 Placing the Dehydrator
The DryLine
®
MT Series dehydrator is designed
asaoorstandingunit.Theunitisshippedwith
the power cord and air lines placed through the
top of the unit.

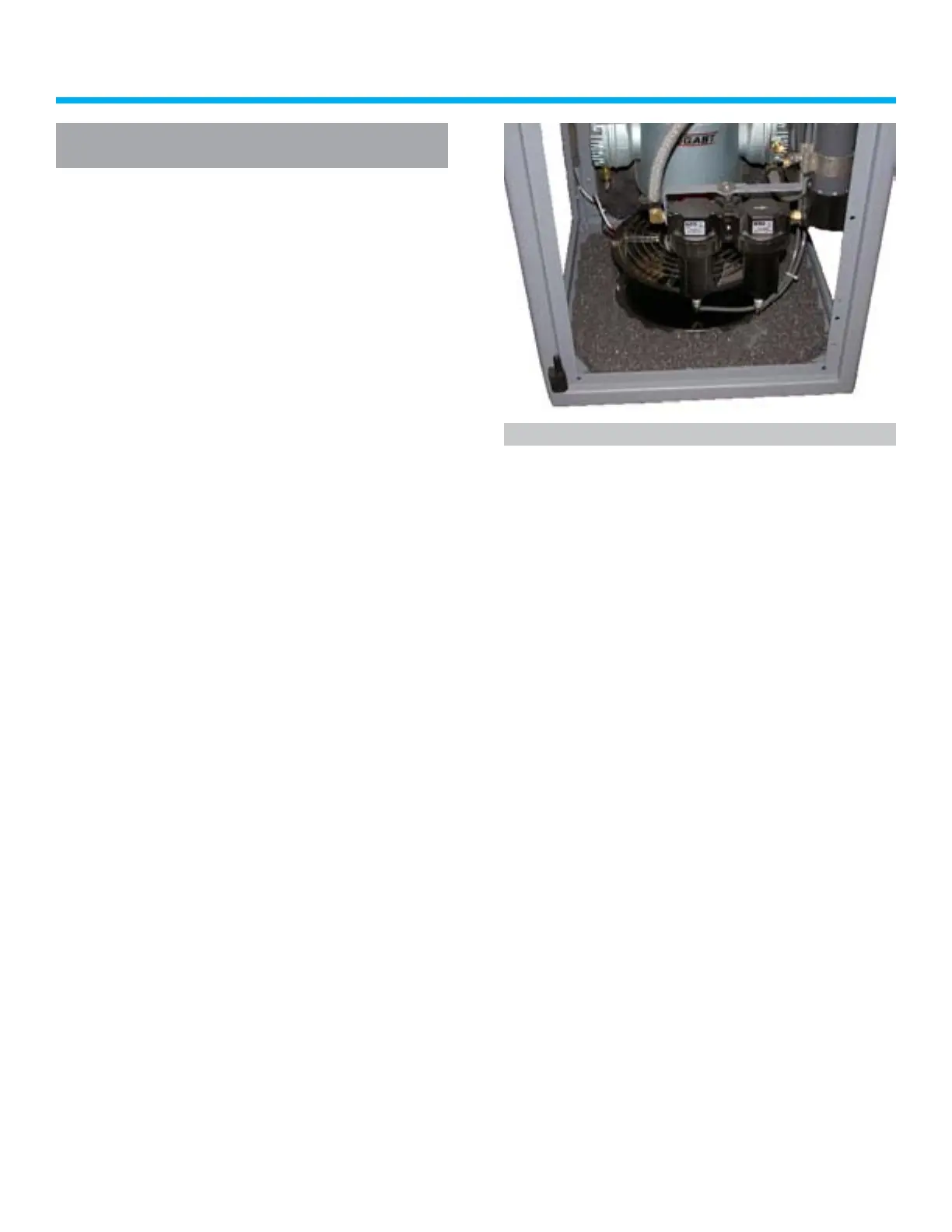

Figure 1 — Filter Bowls
