An imVision Controller X has two zone communications ports:
1 – A/IN
2 – B/OUT

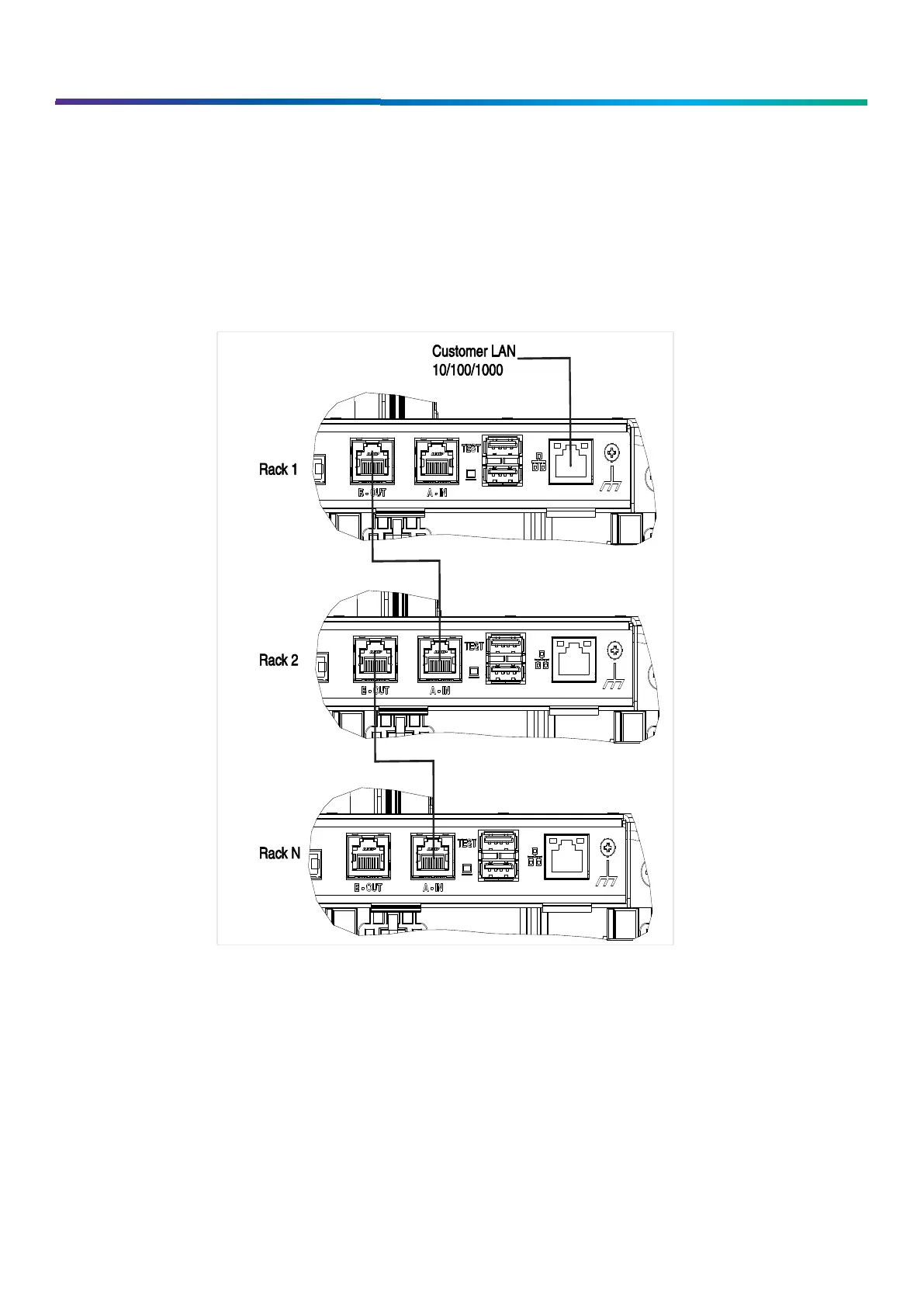

The imVision Controller X’s and imVision Controllers in a zone must be connected to each other in a chain using patch cords
between the controllers. In a zone, the “B” or “OUT” port of one controller must connect to the “A” or “IN” port of the next
controller.
If imVision Controllers are present in the zone, ensure each imVision Controller’s pushbutton switches are configured
according the installation instructions for the imVision Controller.
Configure a Zone Containing Three imVision Controller X’s
