Leave loose until
adjustment is
completed
Torque to
95Nm
5%
K2
Torque to
60Nm
5%
Torque to
60Nm
5%
Torque to
60Nm
5%

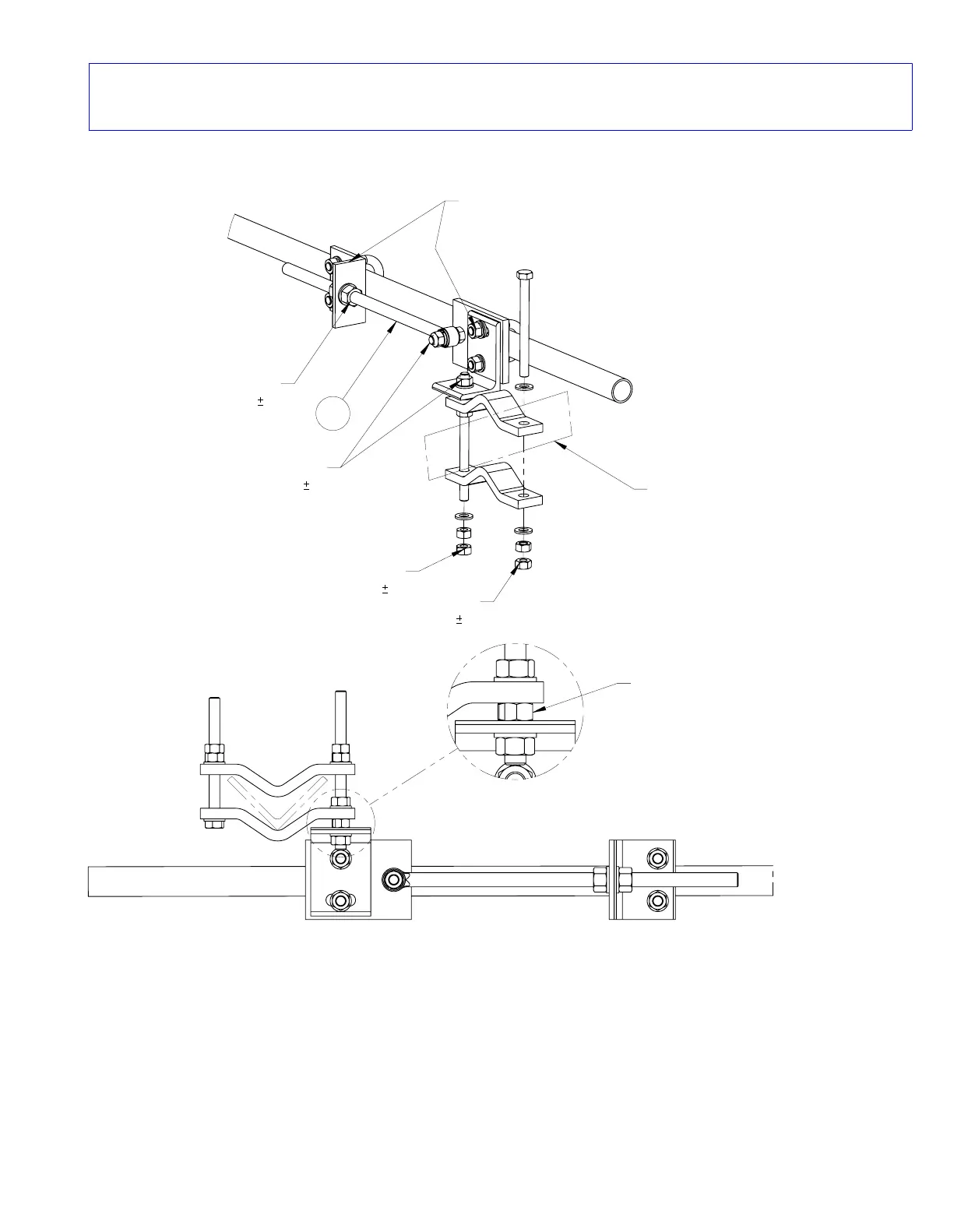

Structural Member
(Non-Circular)
Ensure brackets and nuts are
bolted rigidly together as shown
with no visible threads.
(Viewed from underside for clarity)
Page 25 of 30
7722483
SECTION 8
INSTALLATION
INSTRUCTIONS
Clamps must be attached to a non-circular structural member capable of supporting
7694N in accordance with TIA-222.
The maximum allowable relative deflection between the antenna mounting pipe
and the strut attachment point must be less than 2mm at survival wind
speed of the antenna.
MOUNT ATTACHMENT AND ALIGNMENT
ATTACHMENT TO NON-CIRCULAR STRUCTURAL MEMBERS.
