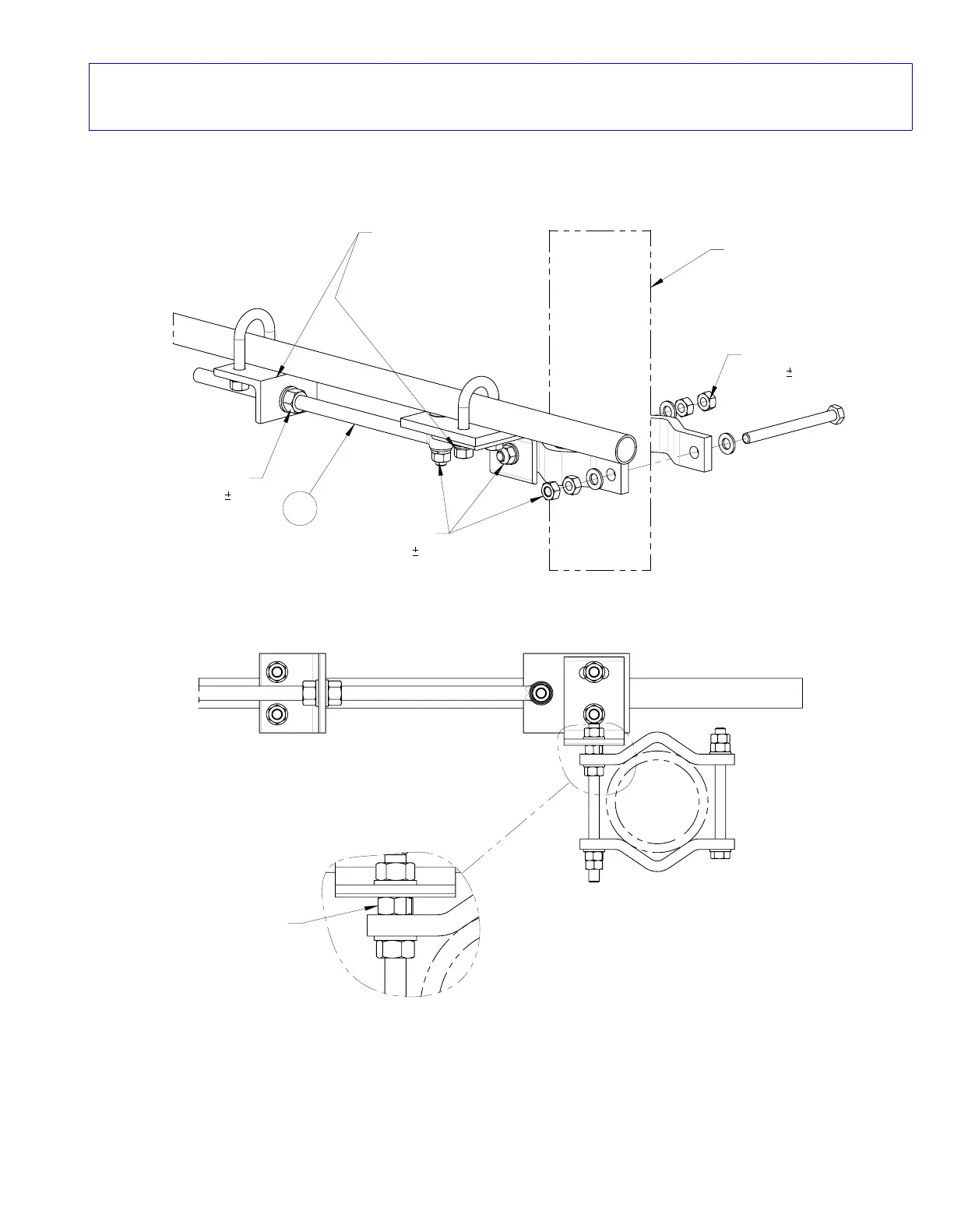

Ensure brackets and nuts are
bolted rigidly together as shown
with no visible threads.
(Viewed from underside for clarity)
Leave loose until
adjustment is
completed
Structural Member
(Circular)
Torque to
95Nm
5%
K2
Torque to
60Nm
5%
Torque to
60Nm
5%
ATTACHMENT TO CIRCULAR STRUCTURAL MEMBERS.
Page 24 of 30
7722483
SECTION 8
INSTALLATION
INSTRUCTIONS
Clamps must be attached to a circular structural member (Dia 48mm - 120mm)
capable of supporting 7694N in accordance with TIA-222.
The maximum allowable relative deflection between the antenna mounting pipe
and the strut attachment point must be less than 2mm at survival wind
speed of the antenna.
MOUNT ATTACHMENT AND ALIGNMENT
To Next Page
