K1
L
Torque to
38Nm
5%
Torque to
60Nm
5%

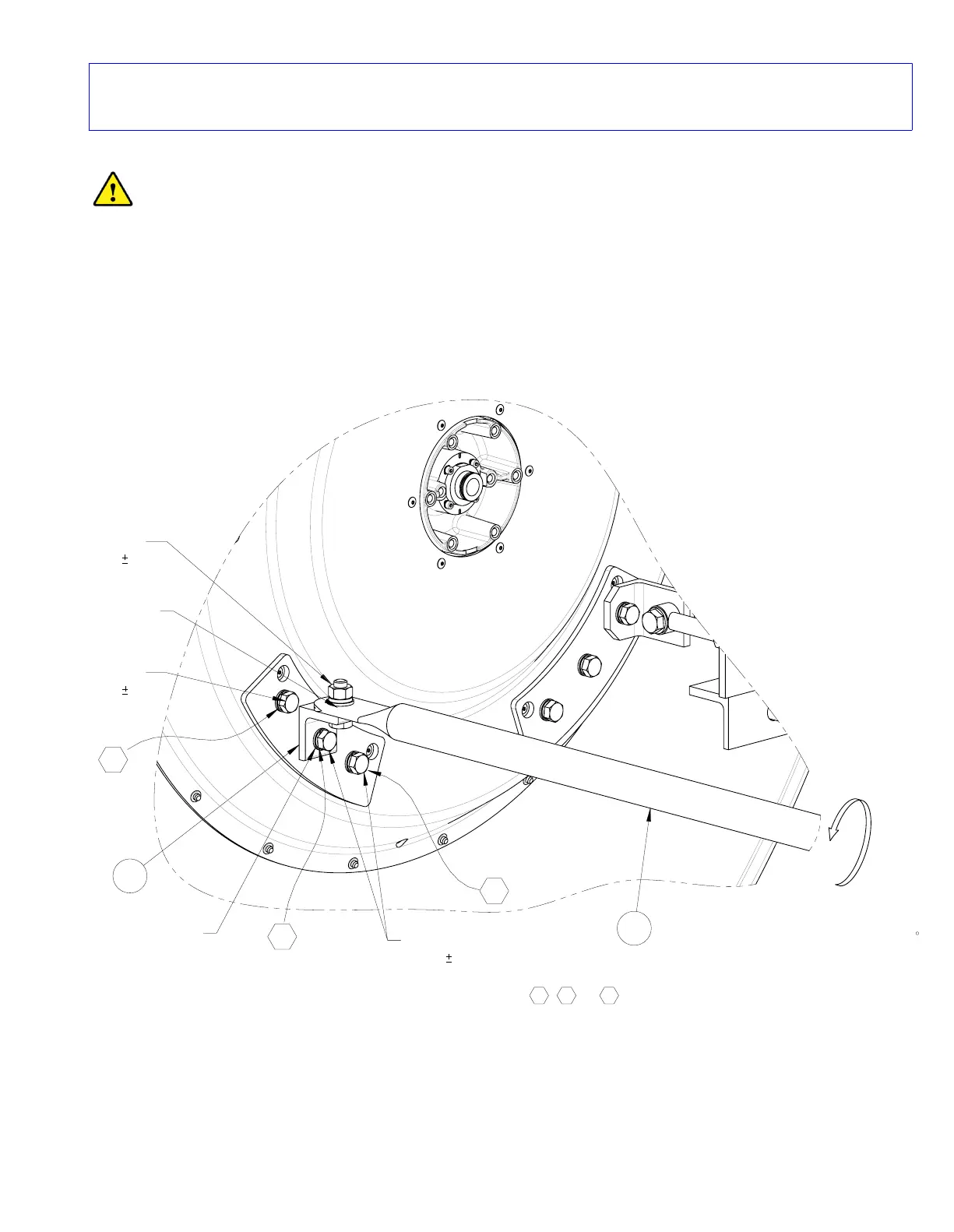

Install the strut using one of the three indicated
1 , 2
or
3
attachement
points so it does not interfere with the radio or it's cables.
Large hole for
M12 screw
Small hole for
M10 screw
Torque to
38Nm
5%
Strut bracket K1
can be installed
rotated within 360
1
2
3
Page 23 of 30
7722483
SECTION 8
INSTALLATION
INSTRUCTIONS
MOUNT ATTACHMENT AND ALIGNMENT
Prior to assembly of strut, assemble OMT, transion or customer radio.
Refer to separate installation instructions.
Strut to be fitted after Antenna is
hoisted to desired
position.
Strut to be loosely fitted until alignment is complete then tighten all
fixings to torque specified.
