CommScope ValuLine VHLP Series - Mount Assembly for Right Side Structure

J2
J2
E
F
G1
J2
J2
Torque to
60Nm
5%
Torque to
60Nm
5%
J4
Torque to 95Nm
5%
J3
Torque to
95Nm
5%
Torque to
95Nm
5%
Torque to
60Nm
5%
Torque all M10 screws
(9x) to 38Nm
5%
Page 22 of 30
7722483 SECTION 8 INSTALLATION
INSTRUCTIONS

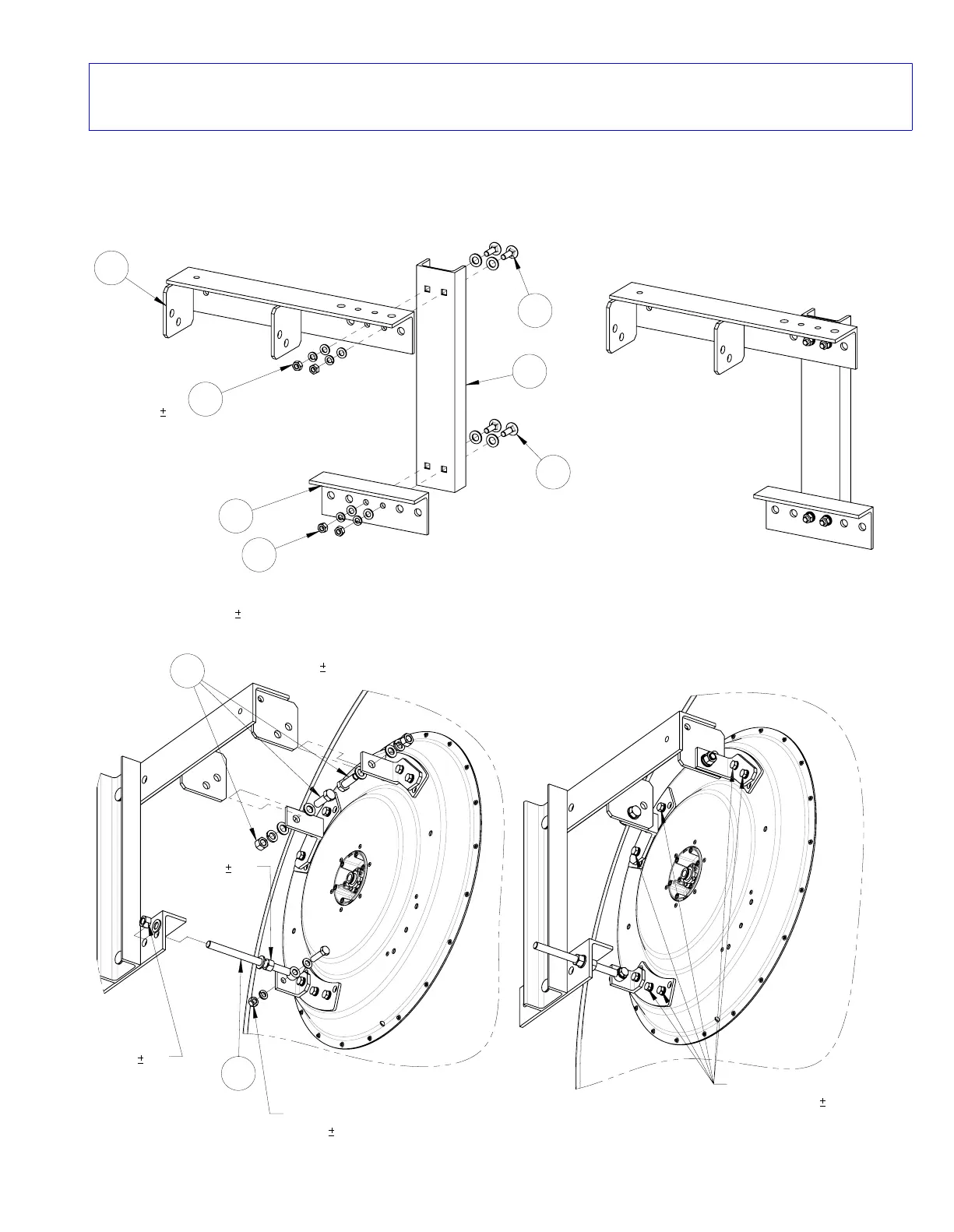

Mount assembly for mounting antenna
to the right of the support structure
MOUNT ATTACHMENT AND ALIGNMENT
