11.3 K-Factor Switch Settings

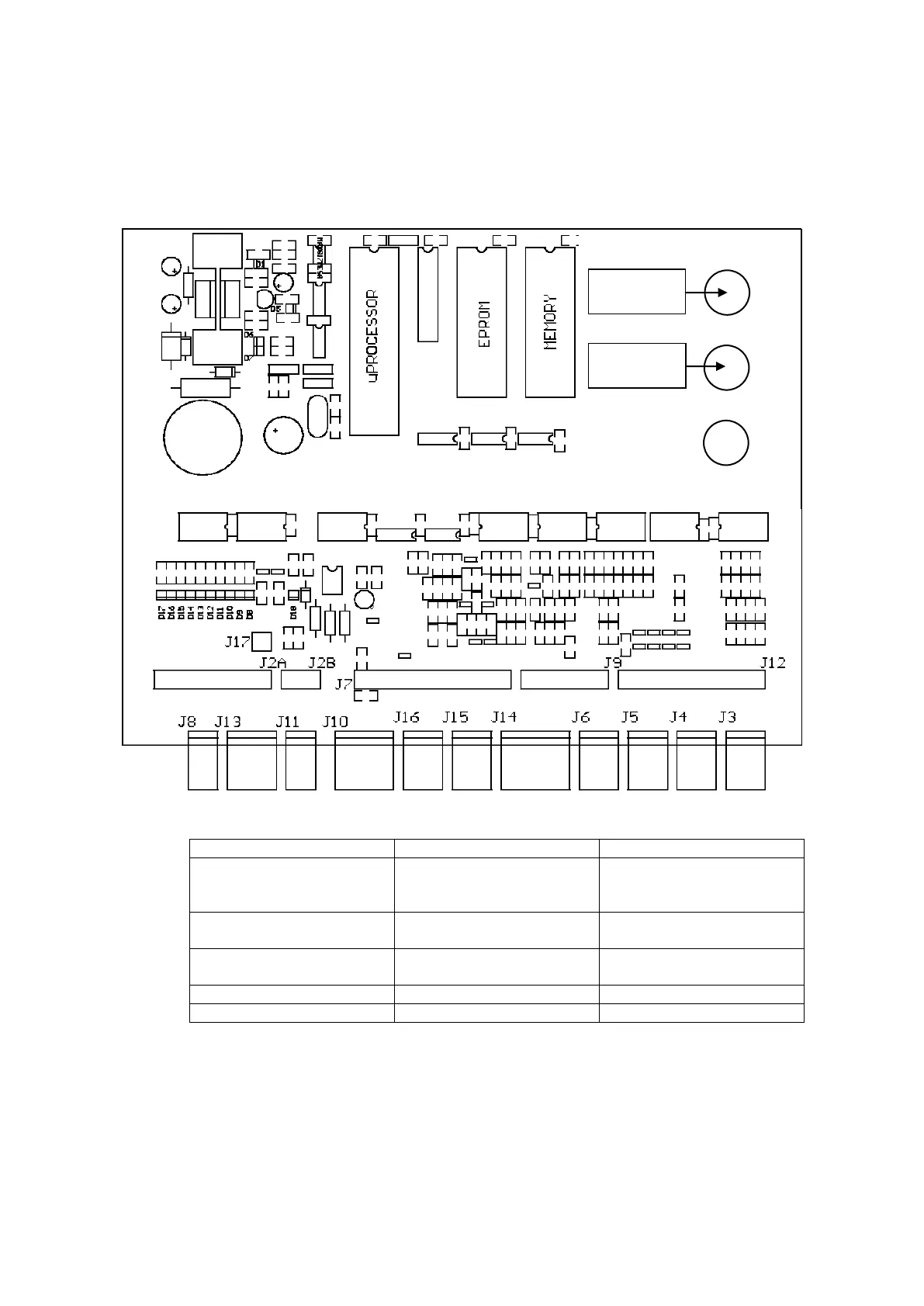

K-Factor, and other various configuration settings, are set via this switch. The position of the K-
Factor switch is shown in the diagram below:
J1: Comms Test
J7: Displays
J13: Not used
J2: To Power Supply
J8: Temperature (for
Temperature
compensation only)
J14: Not used
J3 : Input from KG Meter
Side A
J 9 Power for KG Meters
J15: Not used
J4: Input from KG Meter
Side B
J10: Totes
J16: Not used
J5 : Not Used
J11: Buzzer
J17 Backlighting
J6 Not used
J12 Nozzle Switches
Parameter
Switch
K Factor
Switch
Parameter
Switch
K factor
Switch
