Compac Industries Master MR40P - Comms Dip-Switch Settings; Standard Pump Comms Setting; Gilbarco Pump Comms Setting

G:\Masters\Installation Sheets\Master & Premier\MR40-80P Installation Sheet.doc
Page 6 of 17

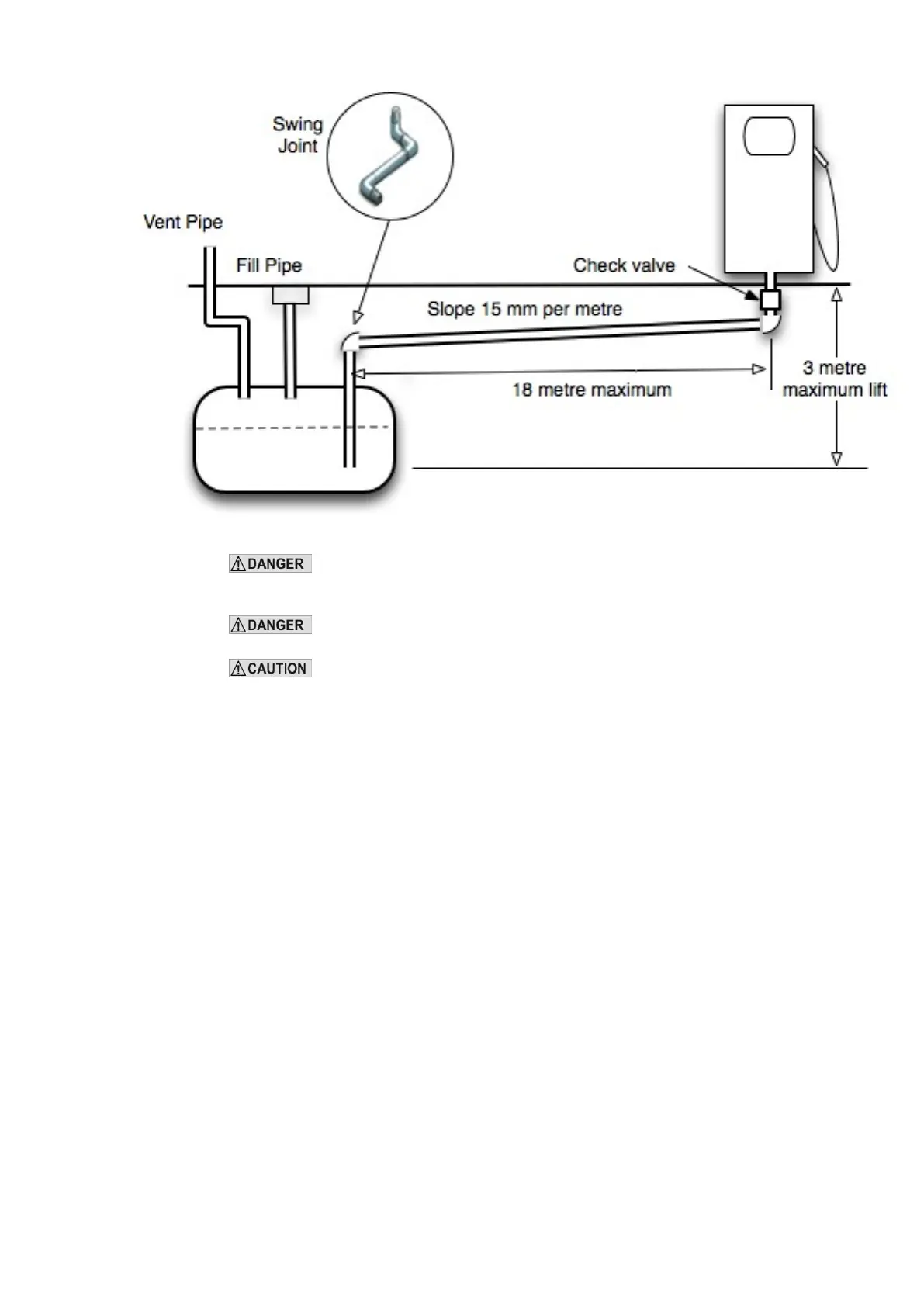

The pump inlet must not be pressurised at any time. This will cause fuel to flow
from the air eliminator. Unregulated connection to an above ground tank will cause
pressurisation.
For above ground tanks a regulator valve such as a Tokheim valve or similar
device MUST be used so that the inlet of the pump cannot become pressurised at any time.
The air switch is not to be disconnected. Disconnection will void NSC and TMU
approvals.
6. Comms Dip-switch settings
6.1 Standard Pump Comms Setting
(Dipswitch SW3)
1-ON
2-OFF
3-ON
4-OFF
These are factory set to the standard setting unless ordered otherwise.eg Gilbarco.
6.2 Gilbarco Pump comms Setting
(Special software and interface board required)
1-OFF
2-ON
3-OFF
4-ON
