9. Dispensing Hoses and Nozzles
The unit may or may not be supplied with dispensing hose and nozzle assemblies.
If customer supplied hoses assemblies, pylons, reels, safe breaks and nozzles are used they
must comply with the requirements outlined in AS/NZS 2229.
9.1 Breakaways
For all dispensers fitted with breakaways, ensure the breakaway is installed between the nozzle
and the high-mast or pylon (if fitted). Any breakaways that have been subject to a break-away
situation should be inspected and refitted or replaced in accordance with the original
manufacturer’s instructions.
10. Electrical connection (Surge Protection)
On models fitted with Surge Protection the 230v incoming mains is terminated in the extra
flame-proof box mounted vertically.
Do not wire incoming mains directly to the C4000 Power Supply. This will bypass the Surge
Protection.

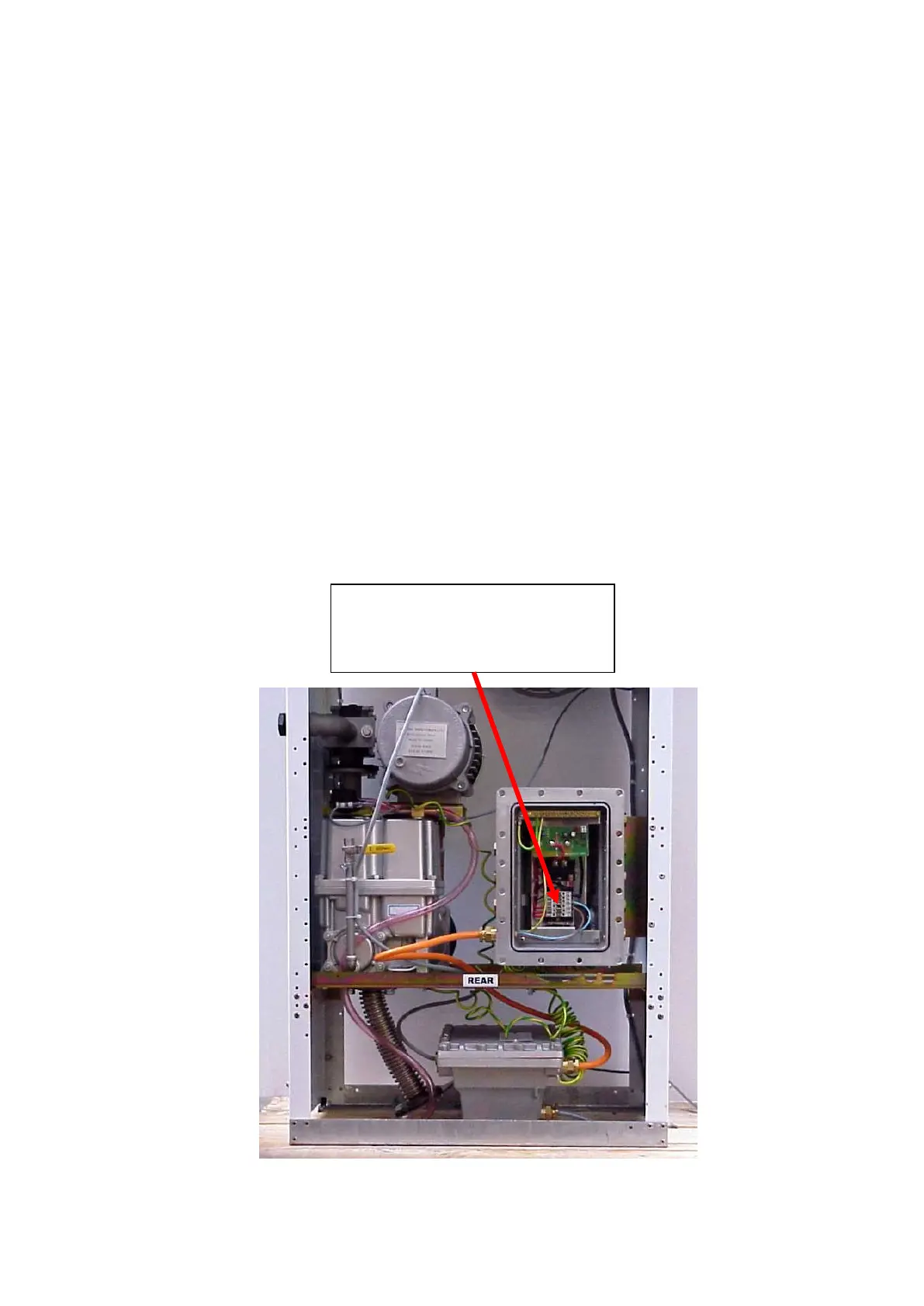

Connnect incoming 230V mains here
Phase to terminal labelled P IN
Neutral to terminal labelled N
Earth – to busbar
