Compact C 1600-12 - Connection Plan

STUDER Innotec COMPACT
COMPACT V6.6 12/83

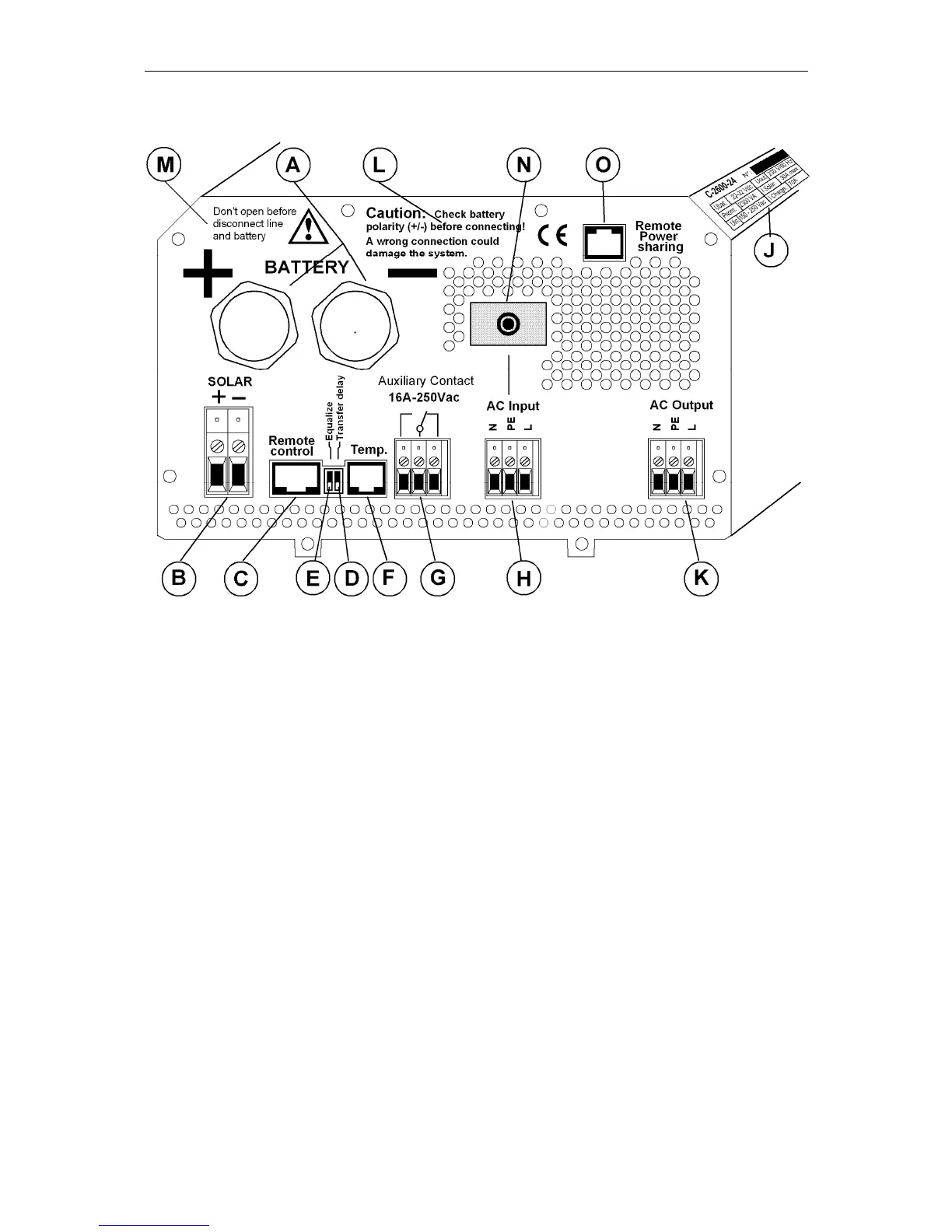

3.4 Connection Plan
A Battery +/- Battery cable (already installed)
B SOLAR +/- Connection terminal for Solar modules
C Remote contr. Connection terminal for Remote Control RCC-01
D Delayed transfer Slide switch to delay the opening of the transfer swich
E Equalize Slide switch for equalization of the Battery
F Temp. Connection terminal for Temperature sensor CT-35
G Aux. Contact Connection terminal for Auxiliary Contact
H AC Input Connection terminal for AC-input. Located directly
above this terminal is the automatic safety cut-out for
this terminal.
J ID Plate Identification plate with Technical data and Serial
number
K AC Output Connection terminal for AC-output
L Caution… Caution: Check Polarity (+/-) before connecting the
battery !
M Don’t… Do not open without disconnecting all terminals
N 16A Protection 16A Protection switch for the Transfer system
O Remote Power Sharing Input current repartition
