4 Control

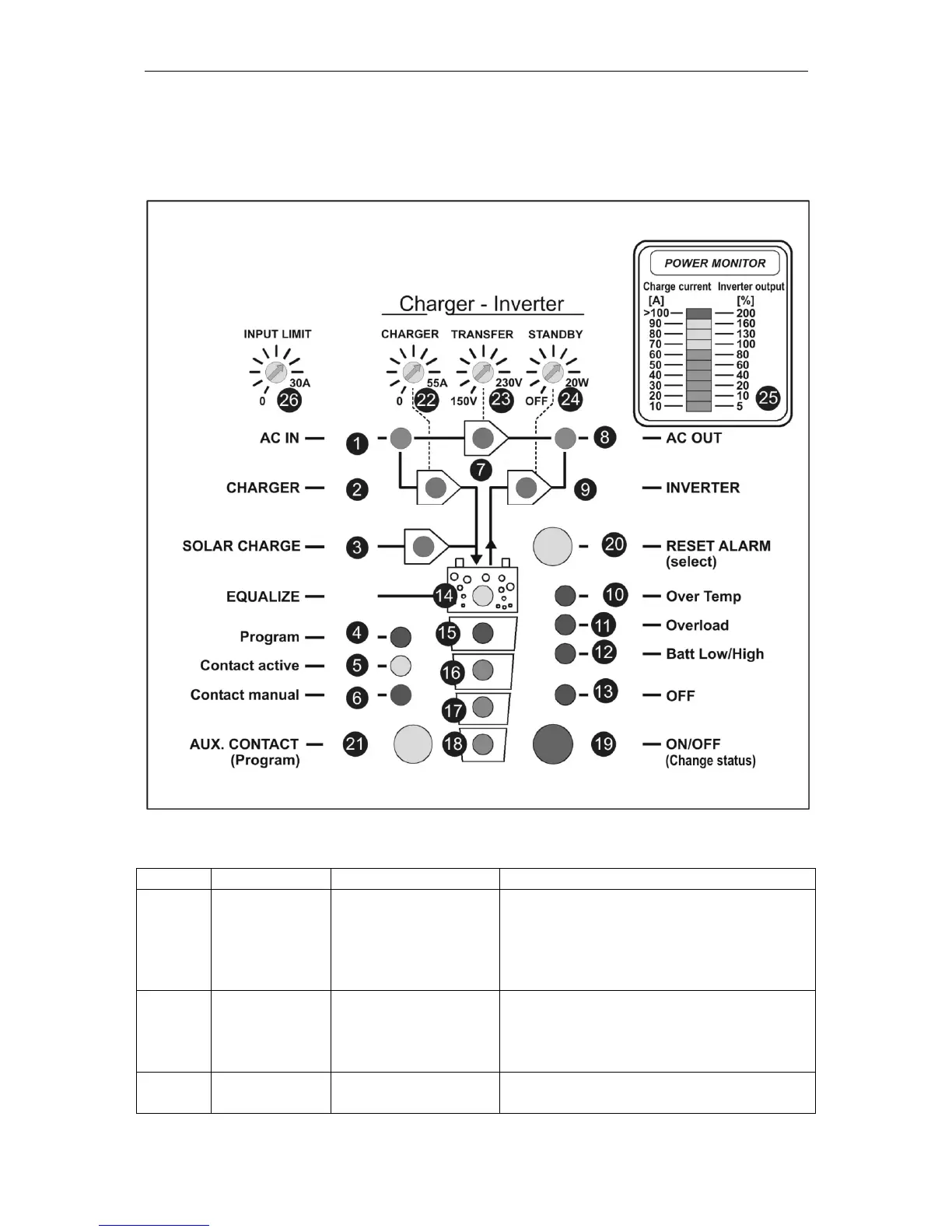

4.1 Display and control parameters
4.2 Light Emitting Diodes (LED)
LED Marking LED lit LED blinks
1 AC IN
Voltage
corresponding to
self-adjusted
values is at the AC
IN input.
A voltage outside the self-adjusted
values is at the AC IN input, or the
COMPACT is in synchronization
phases
2 CHARGER
Battery charger is
working
The battery charger is locked OFF
(see chap. 4.6) or provisory out of
order. In that last case it will restart
within 10 seconds
3
SOLAR
CHARGE
Connected solar
modules are
