Compak F10 Master Conic OD - Page 12

ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 19/07/2016 | K06315
10
8.2. Adjust the lower portalter support in models with
Dynamometric press system DYN

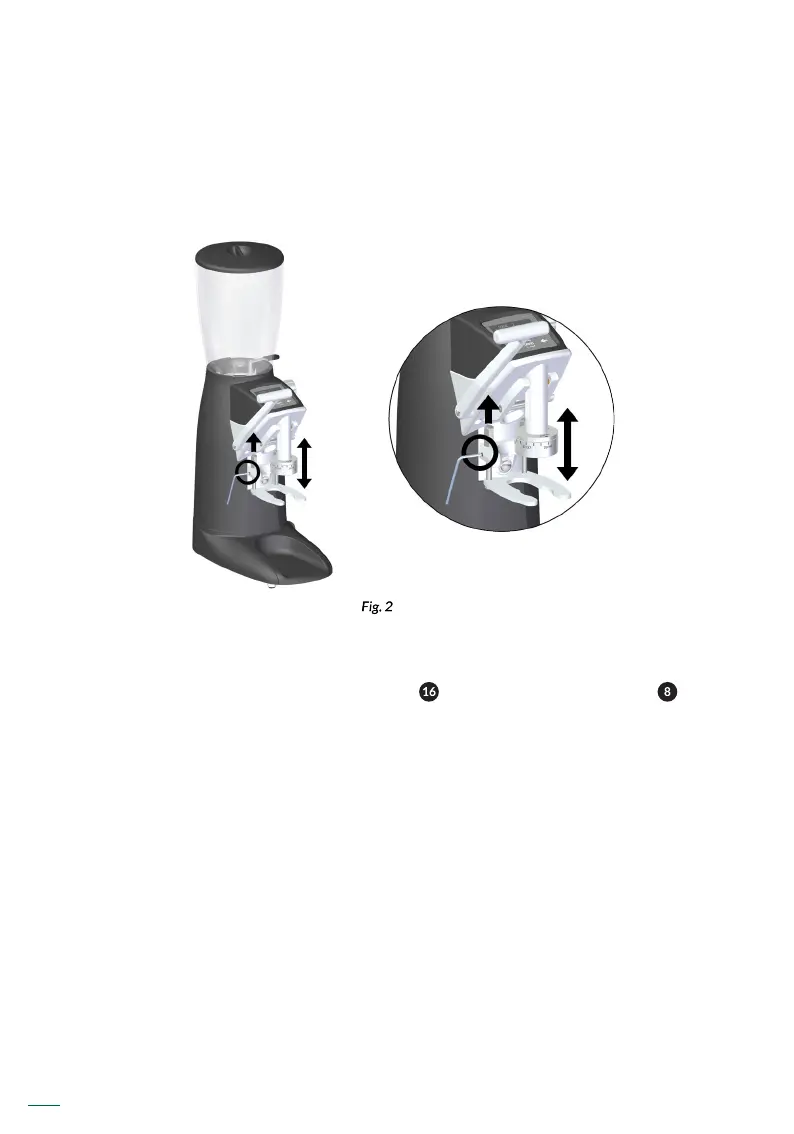

1. Remove screw caps (Fig. 2) using a at headed screw driver.
2. Adjust the mobile fork as described in section 8.1.
3. Replace and tighten the screw caps (Fig. 2).
8.3. Grind point adjustment
Place portalter in upper portalter holder ( ) and push the rell button ( ) until
ground coffee begins to dispense from exit chute.
To adjust the grind point, simply turn the grind adjustment knob. A clockwise
adjustment will render a ner grind and a counter clockwise adjustment will render
a more coarse grind.
CAUTION: Changing grind settings must be done when the grinder is on and burrs are in
motion. Not doing this suposes that the burrs will gunk up and cleaning will be required.
