8.2.Grindadjustmentsystem
8.2.1.Micrometricalsystem/Parallelmicrometricalsystem
Rotate the grind regulator ( ) until reaching the grind level desired. Rotating the
grind regulator counterclockwise will result in a courser grind; turning the regulator
clockwisewillresultinanergrinder*(Fig. 3).

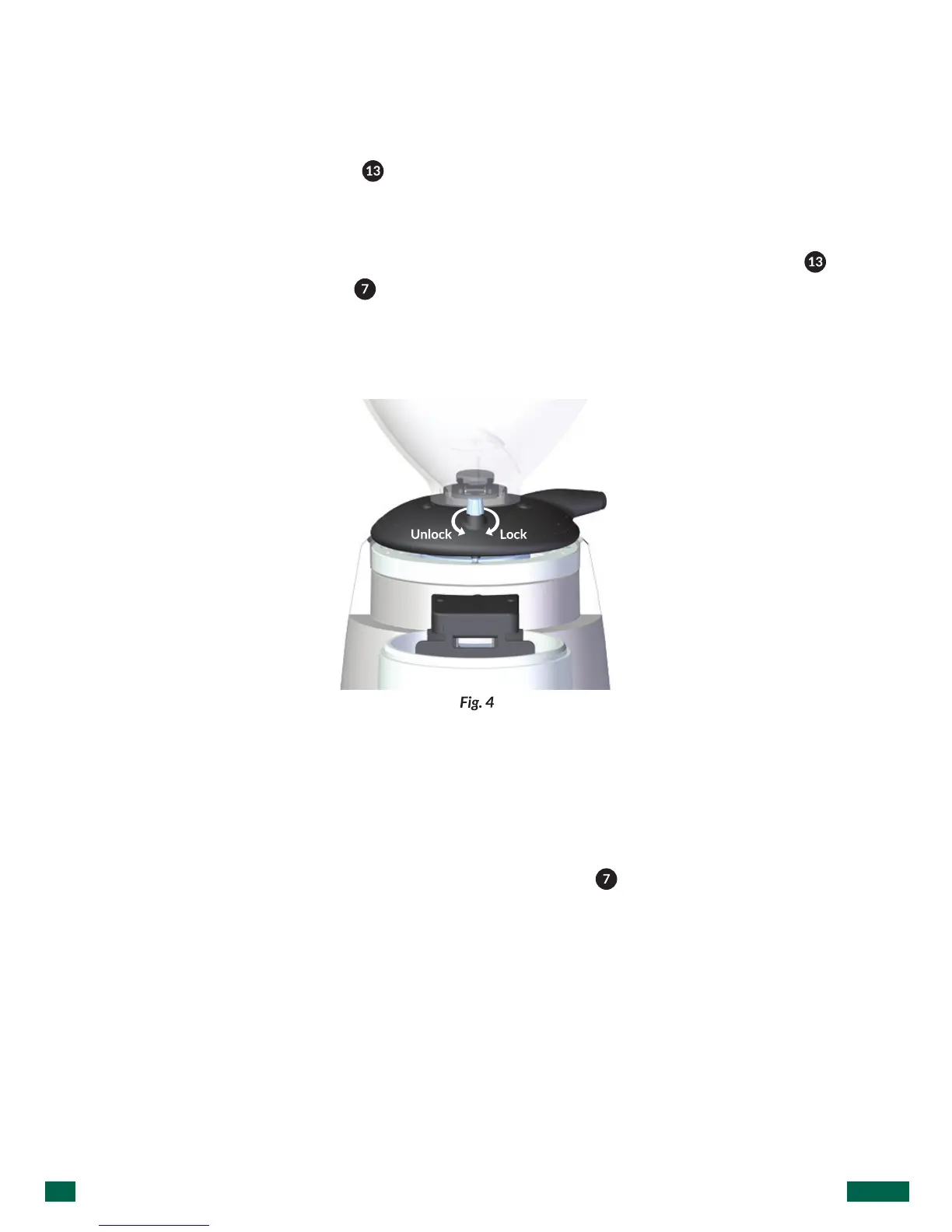

Onceyoureachthedesiredgrindingpoint,youcanxthegrindingregulation( )
using the regulation break ( ) (Fig. 4). Except K3 and K3 ELITE models.
*NOTE: Changing grind settings must be done when the grinder is on and burrs are in motion.
Not doing this suposes that the burrs will gunk up and cleaning will be required.
8.2.2.Steppedgrindadjustment
In the stepped adjustment versions, the positions on the grind regulator are limited
by“steps”thataredenedbytheholeandpinpoints(Fig. 5).
The instructions detailed in section 8.2.1. on adjusting the regulator should be
followed, while at the same time, pulling the brake post ( ) (Fig. 5) up to release the
locking action of the post.
