Compaq 5000 Series Replacing Instructions

8 R
EPLACING THE
1394 C
ARD
IV. Removing the 1394 Card
1. Turn the computer on its side (open side facing up), and
locate the 1394 card.

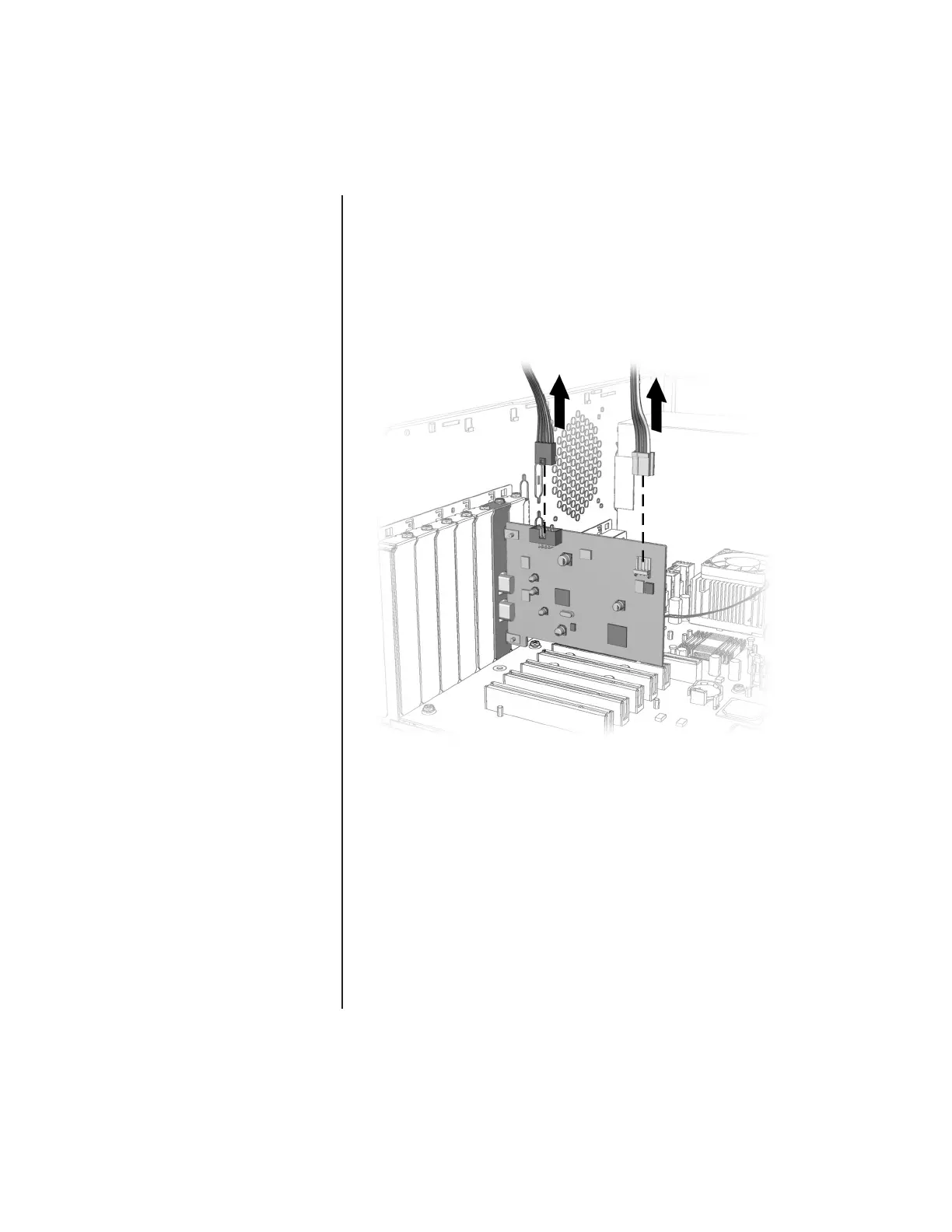

2. Disconnect the Front I/O and the power cable (4 pin
connector) from the 1394 card (see Figure 4-1).
Figure 4-1

Compaq 5000 Series Specifications

General

Memory Type	SDRAM
Optical Drive	CD-ROM or DVD-ROM
Audio	Integrated
Operating System	Windows 98
Ports	USB, Serial, Parallel, PS/2
Expansion Slots	PCI
