11

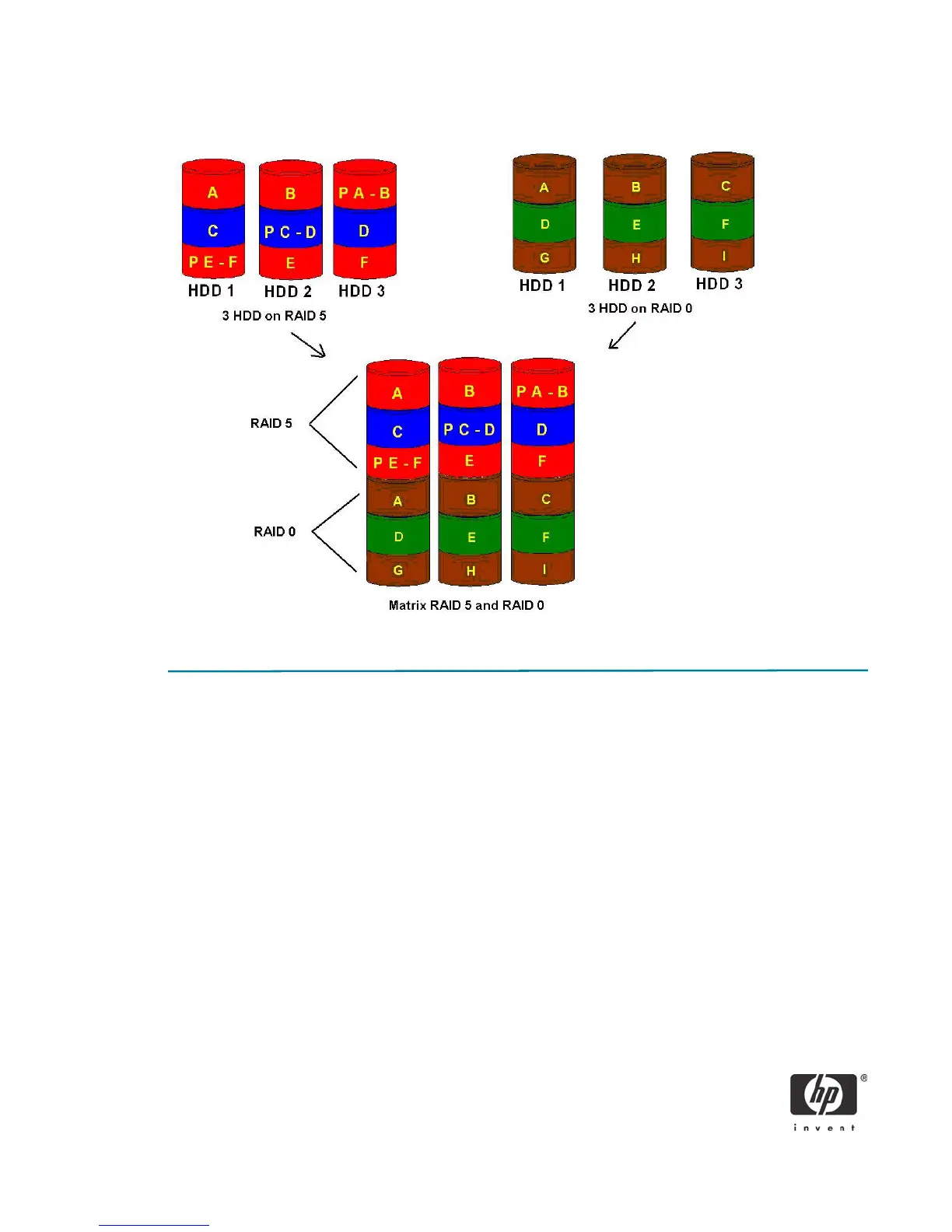

Figure 6 Matrix RAID combining reliability and performance with same three hard drives
Configurations
Recommended configurations
HP recommends factory configurations of the preinstalled RAID offerings for HP Compaq dc7800 Busi-
ness PCs.
The preinstalled RAID offering is a RAID 1 volume of two identical SATA hard drives with the following
customer choices:
Two SATA 80GB 7200RPM drives
Two SATA 250GB 7200RPM drives
Two SATA 500GB 7200RPM drives
Two SATA 80GB 10000RPM drives
Two SATA 160GB 10000RPM drives

Other manuals for Compaq dc7800 - Convertible Minitower PC

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Compaq dc7800 - Convertible Minitower PC and is the answer not in the manual?

Compaq dc7800 - Convertible Minitower PC Specifications

General IconGeneral
ChipsetIntel Q35 Express
MemoryUp to 8 GB DDR2 SDRAM
Form FactorConvertible Minitower
ProcessorIntel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
StorageSATA Hard Disk Drive or Solid State Drive
GraphicsIntegrated Intel Graphics Media Accelerator 3100
Optical DriveDVD-ROM, DVD+/-RW
NetworkingIntegrated Intel Gigabit Network Connection
PortsUSB 2.0, serial, parallel, VGA, audio in/out, PS/2
AudioIntegrated High Definition Audio
Operating SystemWindows XP, Windows Vista
Expansion Slots1 PCI Express x16, 3 PCI
Power Supply365W standard efficiency or 80 PLUS power supply
