Compaq dc7800 - Convertible Minitower PC User Manual

15
CAUTION: Do NOT turn the computer power off while the ROM is saving the F10 Computer Setup
changes as the CMOS could become corrupted. Only turn the computer off after exiting the F10 Setup
screen.
Configuring RAID Option ROM
You can only access Computer Setup at system startup. To access the Computer Setup Utilities menu and
enable RAID:
1. Turn on or restart the computer by clicking Start > Shut Down > Restart the Computer.
2. Press Ctrl + I repeatedly as soon as the monitor light turns green to enter the RAID configuration util-
ity. If you do not press Ctrl + I at the appropriate time, you must restart the computer, and then press
Ctrl + I again to access the utility.

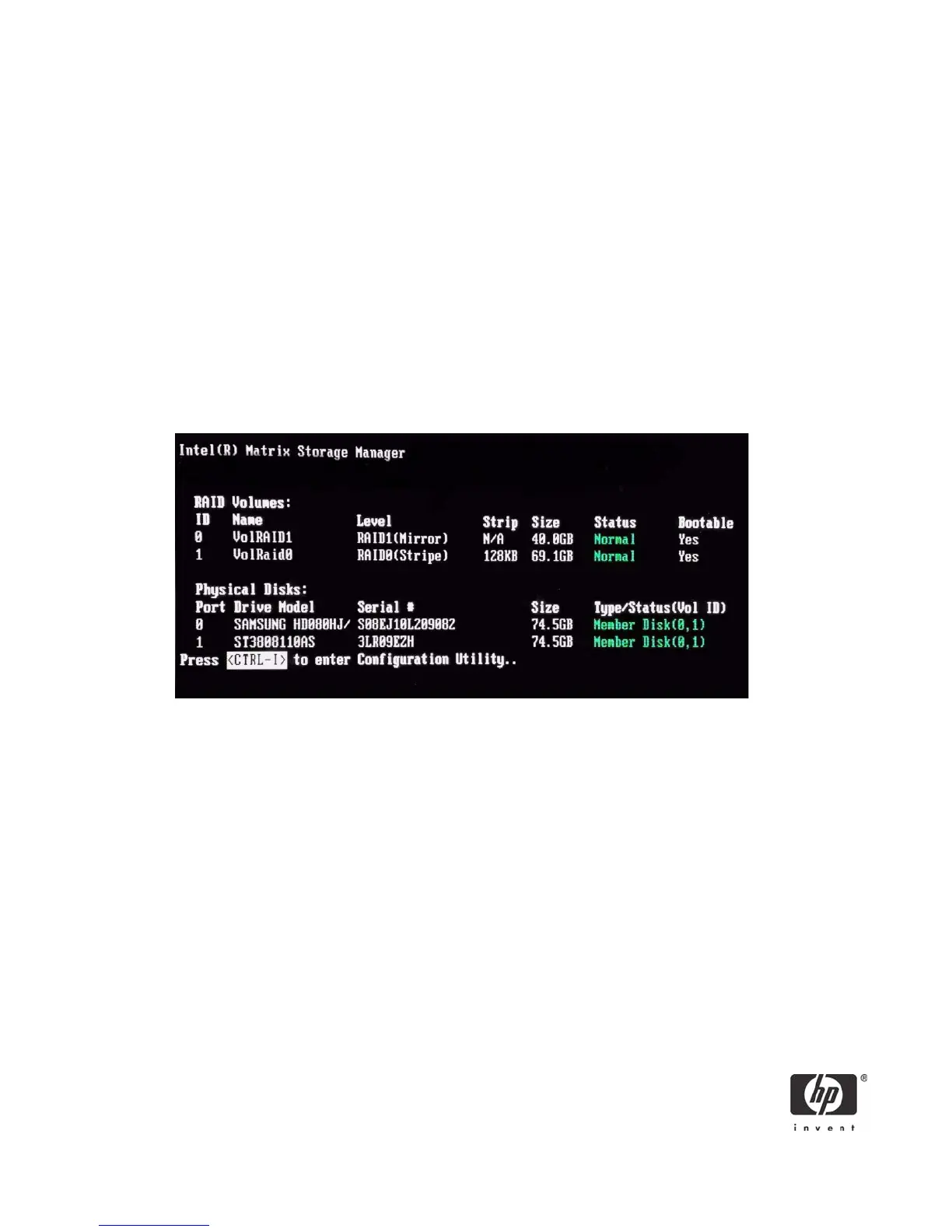

The Intel Matrix Storage Manager screen (RAID Option ROM) displays briefly during boot up. The
RAID configuration utility is English only. To configure RAID in other languages, use the Windows-
based RAID configuration utility.

Compaq dc7800 - Convertible Minitower PC Specifications

General

Chipset	Intel Q35 Express
Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Convertible Minitower
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA Hard Disk Drive or Solid State Drive
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Networking	Integrated Intel Gigabit Network Connection
Ports	USB 2.0, serial, parallel, VGA, audio in/out, PS/2
Audio	Integrated High Definition Audio
Operating System	Windows XP, Windows Vista
Expansion Slots	1 PCI Express x16, 3 PCI
Power Supply	365W standard efficiency or 80 PLUS power supply
