Compaq Deskpro EX - Front Panel and Rear Panel Details

1-2 Product Description
1.1 Product Features
Compaq Deskpro EX Series of Personal Computers Desktop Model ships with a mouse
and keyboard. Some models are also equipped with a CD-ROM drive. A Compaq color
monitor or other compatible monitor does not ship with the computer.

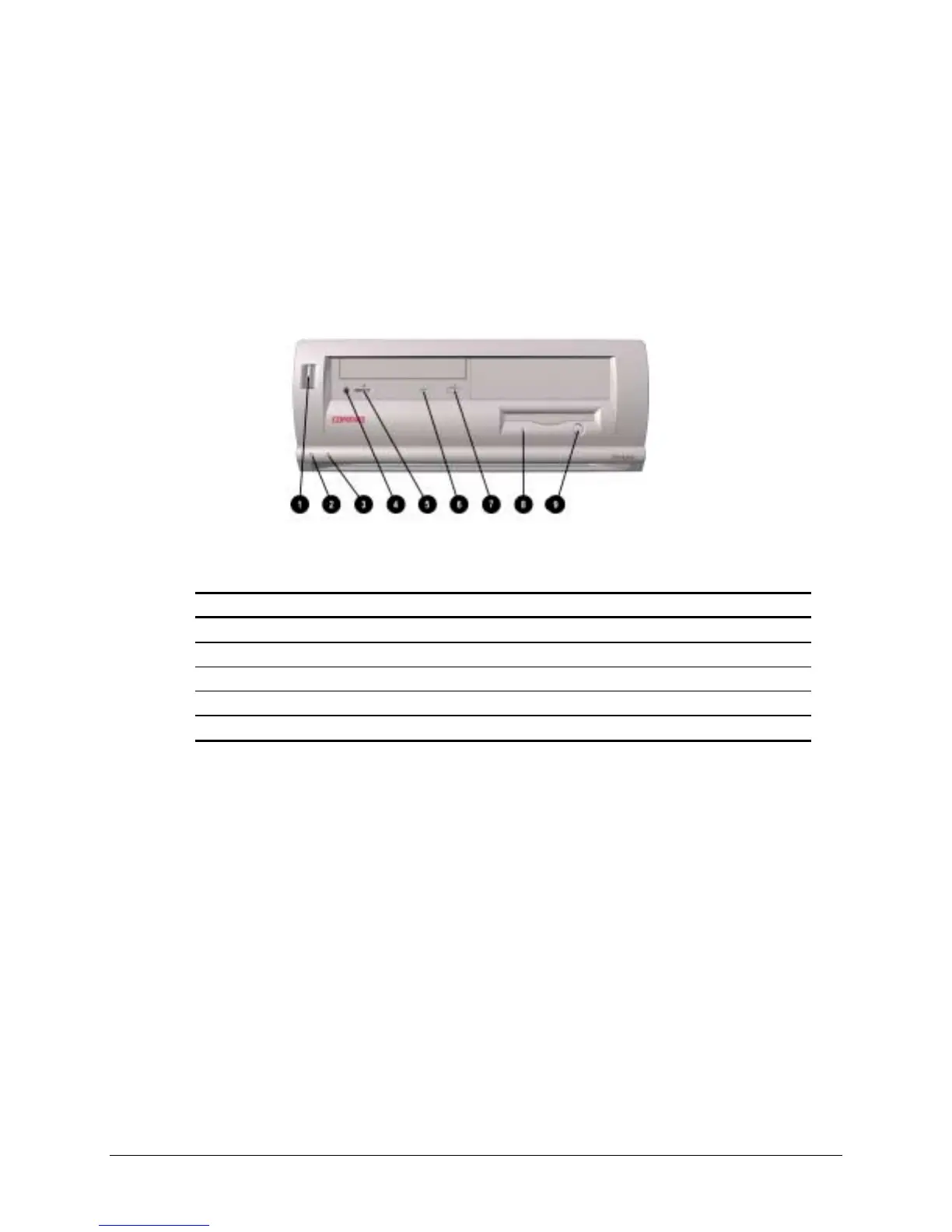

1.1.1 Front Panel Controls and LEDs
Ref. Component/Function Ref. Component/Function
1
Dual-State Power Button
6
CD-ROM Drive Busy Indicator*
2
Power-On Light
7
CD-ROM Eject Button*
3
Drive Activity Light**
8
Diskette Drive Activity Light
4
Stereo Headphone Jack
9
Diskette Eject Button
5
Headphone Volume Control
*CD-ROM models only.
**Flashes when an ATAPI device, such as the hard drive, is active.
