4-18 Removal and Replacement Procedures
Installing a GPA/AIMM Card
WARNING: Power is continuous to the system board and power supply even when the power
switch is turned off. To prevent damage to the unit, disconnect the power cord from the power
source or the unit before beginning disassembly procedures.
1. Prepare the computer for disassembly (Section 4.2).
2. Remove the computer cover (Section 4.3).
3.

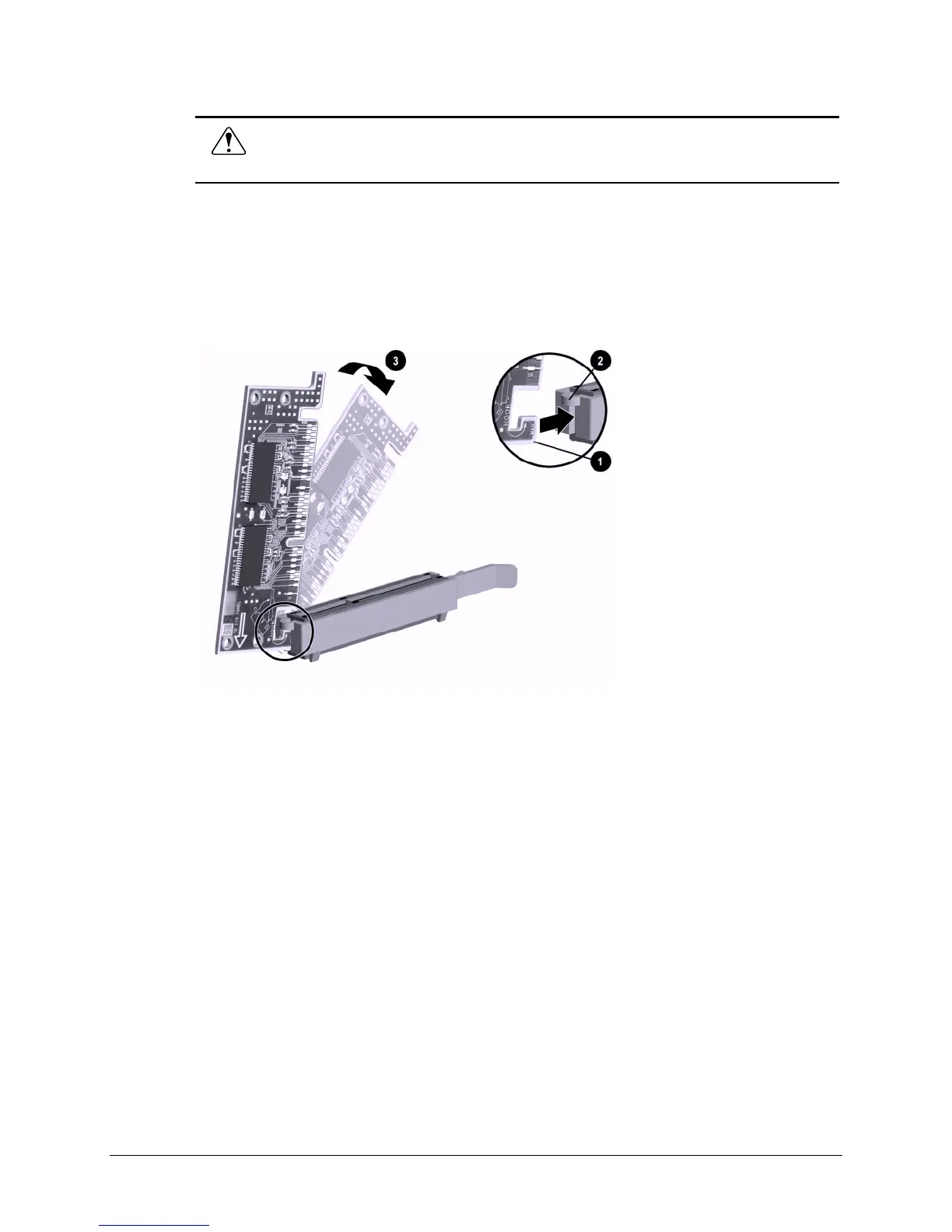

Insert the hook 1 on the left side of the GPA/AIMM card under the loop 2 on the left
side of the retention mechanism.
4.
Rotate the right side of the card down until it is at a 45 degree angle 3.
