Compaq Deskpro EX Series of Personal Computers 4-19

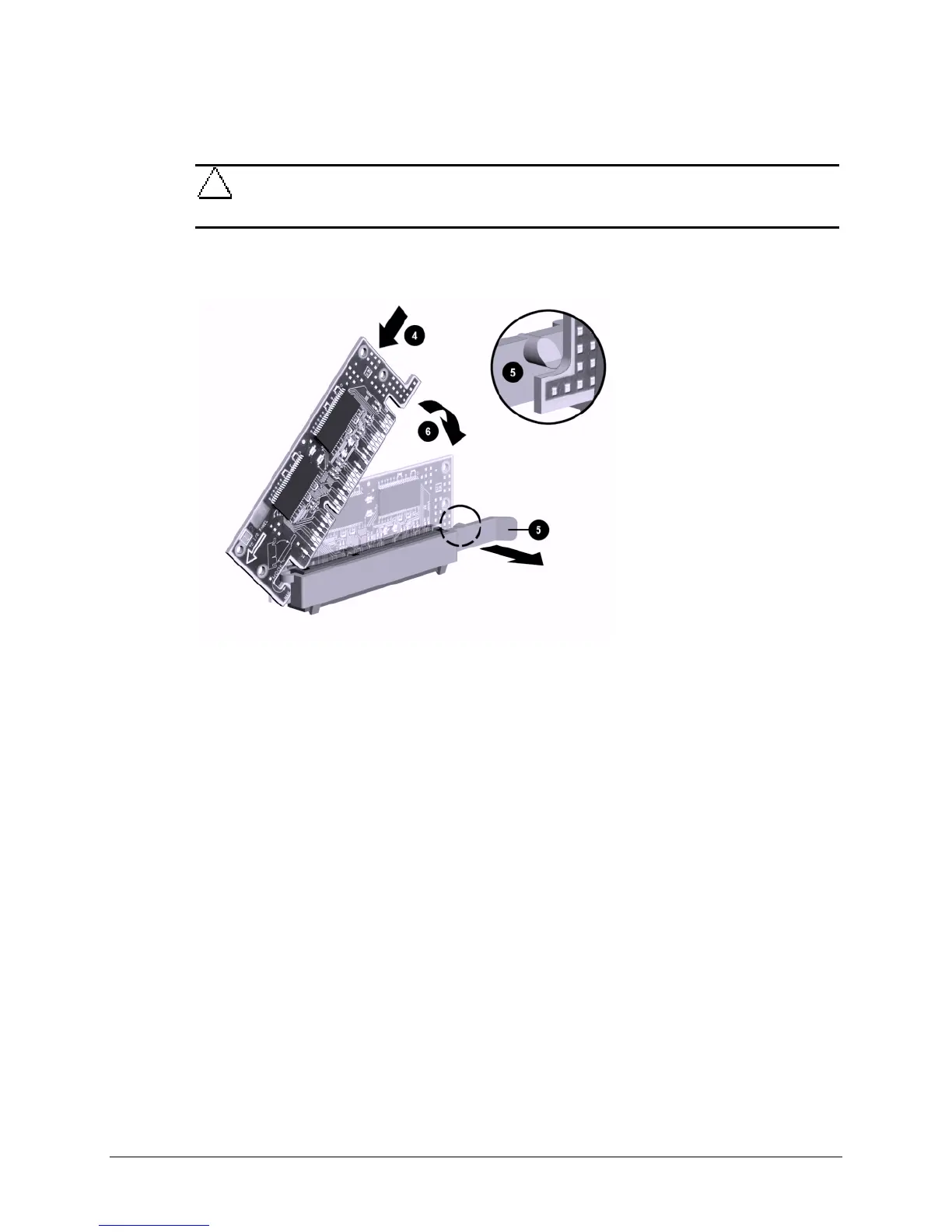

5. With the GPA/AIMM card at a 45 degree angle, slide the card toward the back of the
expansion slot 4 until the fingers on the bottom of the card line up properly with the
connectors in the expansion slot.
CAUTION:
The fingers on the bottom of the GPA/AIMM card must be properly aligned with the
expansion slot during installation. Misalignment may result in damage to the card or the AGP
connector.
6.
While pulling the arm on the right side of the retention mechanism 5, rotate the card
down into the expansion slot until seated 6.
