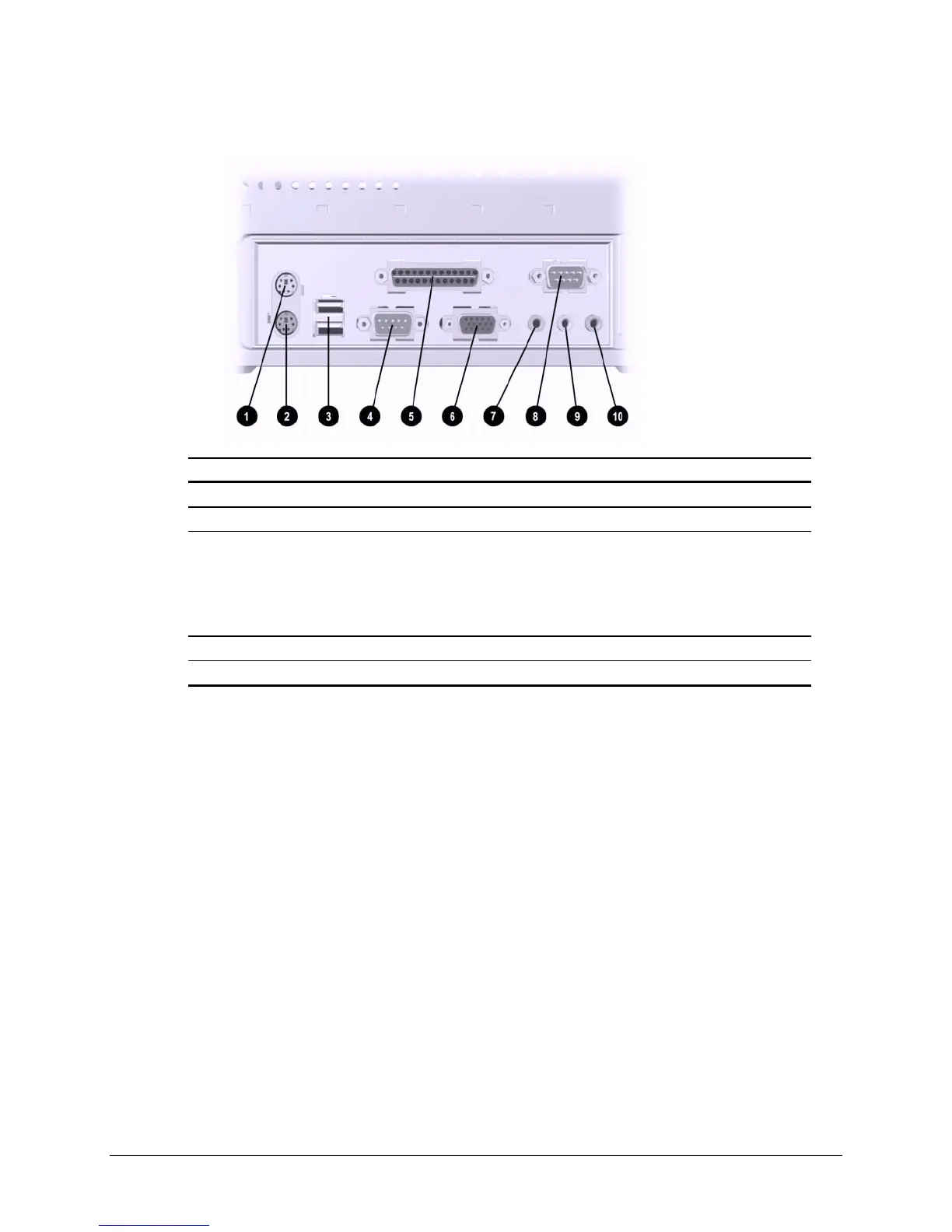

Compaq Deskpro EX - Rear Panel Connectors

Compaq Deskpro EX Series of Personal Computers 1-3
1.1.2 Rear Panel Connectors
Ref. Component Ref. Component
1
Mouse Connector
6
Monitor Connector
2
Keyboard Connector
7
Headphone/Line Out Audio Connector
3
Universal Serial Bus (USB)
Connectors (2) (connects the
computer to any USB peripheral
while the computer is operating; is
a fully functional Plug and Play
connector)
8
Serial Connector
4
Serial Connector
9
Line-In Audio Connector
5
Parallel Port Connector
:
Microphone Connector
