4-20 Removal and Replacement Procedures
4.10.2 AGP Card with a Type I Retention Mechanism
Removing an AGP Card
1. Prepare the computer for disassembly (Section 4.2).
WARNING: Power is continuous to the system board and power supply even when the power
switch is turned off. To prevent damage to the unit, disconnect the power cord from the power
source or the unit before beginning disassembly procedures.
2.
Remove the computer cover (Section 4.3).
3.
Remove the screw at the top of the expansion slot.
4. Pull the arm on the right side of the retention mechanism.
5. Pull the card straight up to remove it from the expansion slot.
✎

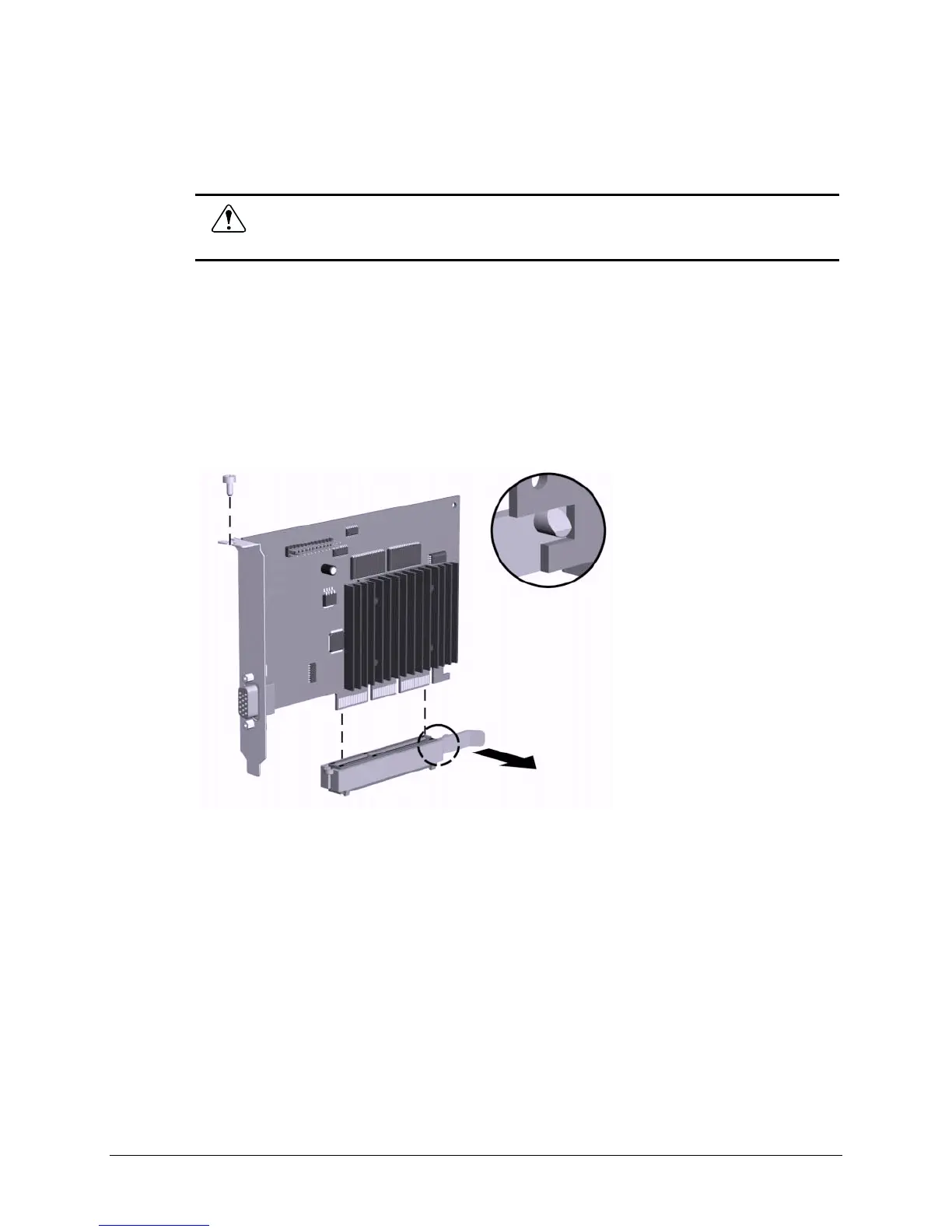

AGP card may differ from illustration.
To install the graphics card, reverse the above procedures.
