Upgrade Guide 17
Upgrading and Replacing Hardware

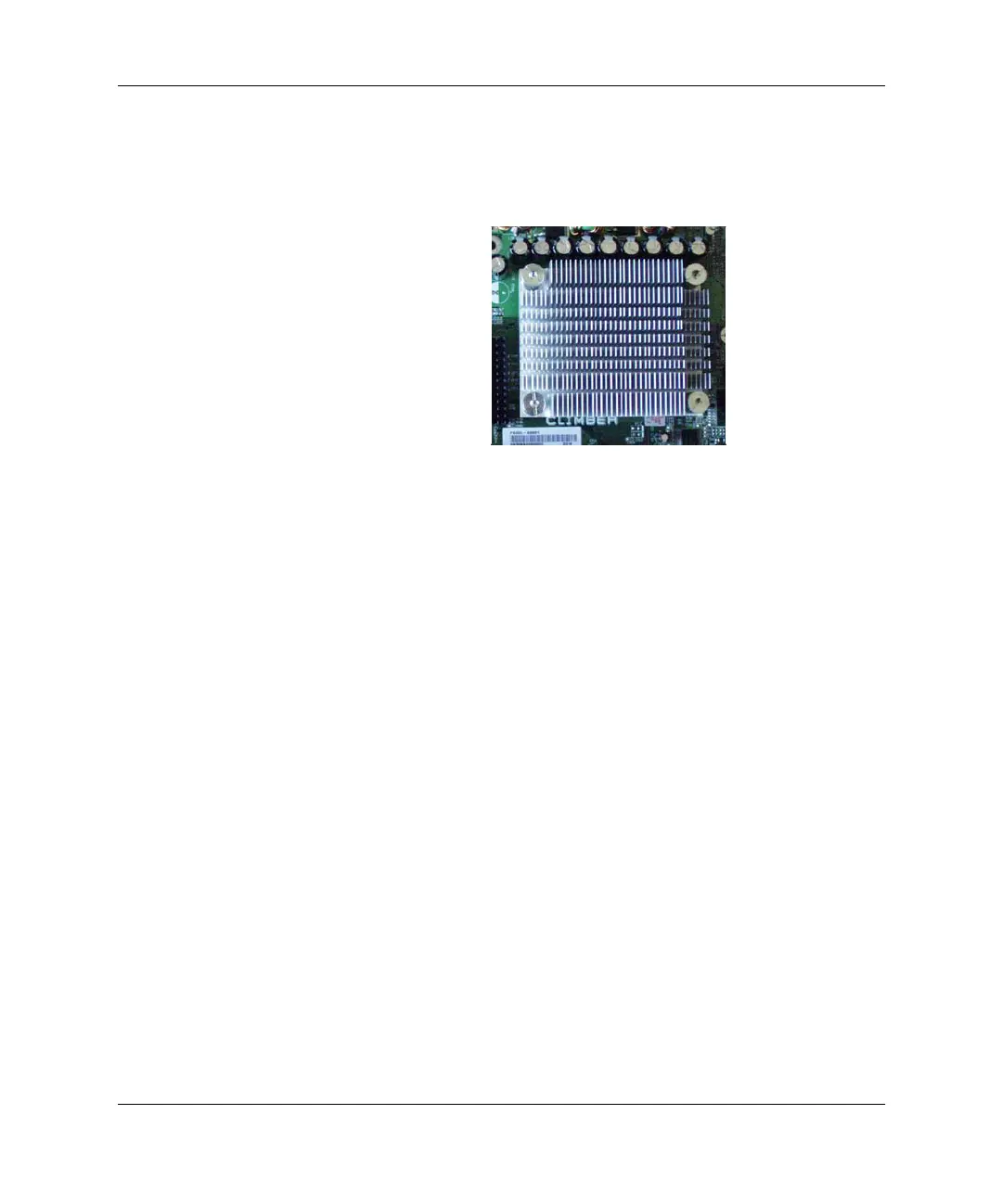

9. Secure the heatsink using the springs and screws. Attach the
screws in the order shown, first with just a few turns and then,
once all four are in place, screwing them in fully.
10. Replace the system board in the chassis.
11. Replace the chassis in the enclosure.
12. Ensure that the latest version of BIOS is installed on your e-pc.
To learn which version of BIOS is currently installed on your
e-pc, restart the e-pc. When the Compaq logo is displayed, press
F8,
then select Summary from the list of options. To get the
latest BIOS version for your e-pc, connect to the support Web site
at
http://www.compaq.com/support.
1
3
4
2
