18 Upgrade Guide
Upgrading and Replacing Hardware
Replacing the Power Supply Unit
1. Open the e-pc as shown in “Opening the e-pc” on page 3.

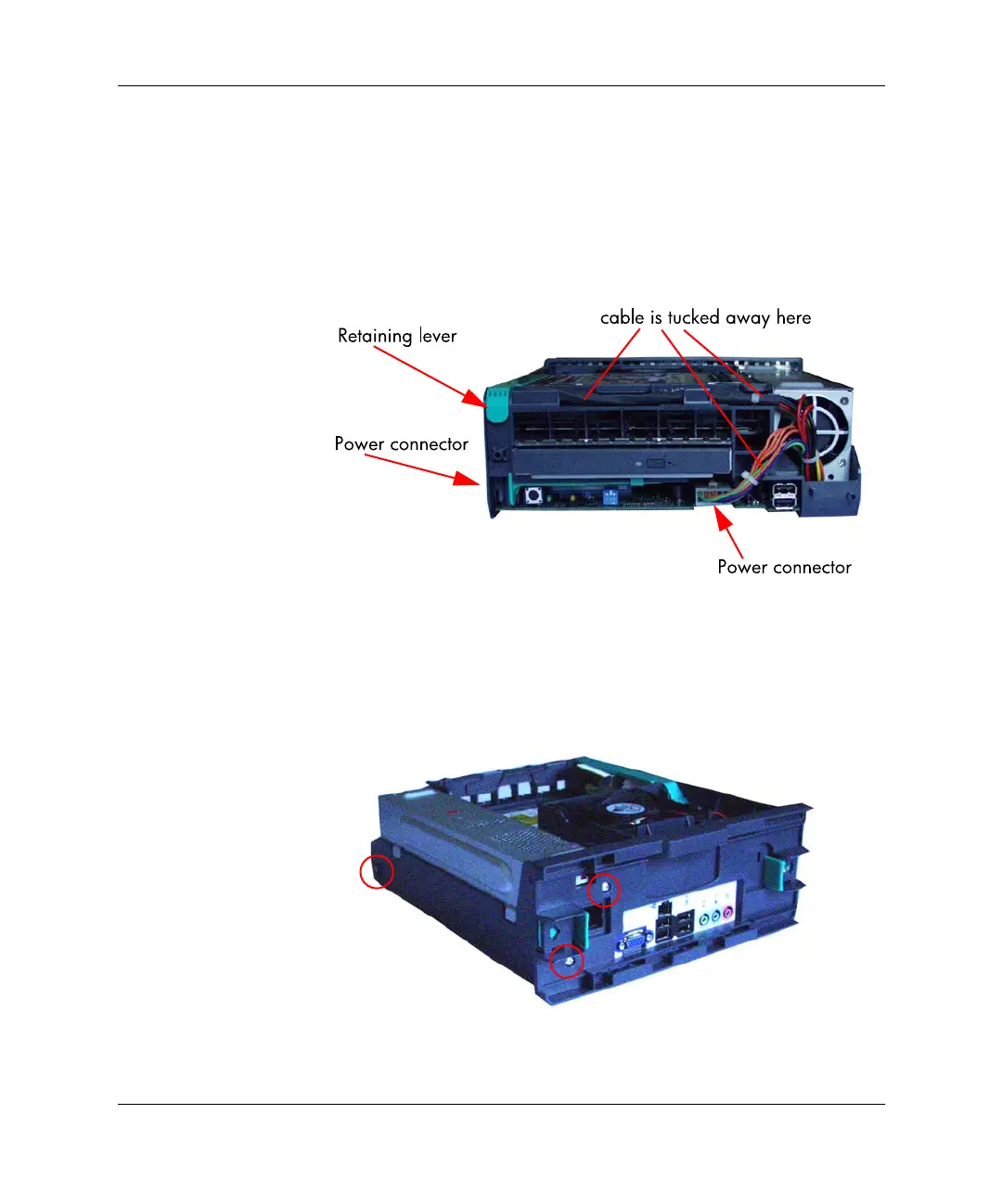

2. Remove the two internal power supply connectors. Lift the
retaining lever and free the cable from the tabs that hold it in
place.
3. Remove the three external screws securing the power supply to
the chassis.
305513-001.bookPage18Tuesday,August20,20024:35PM
