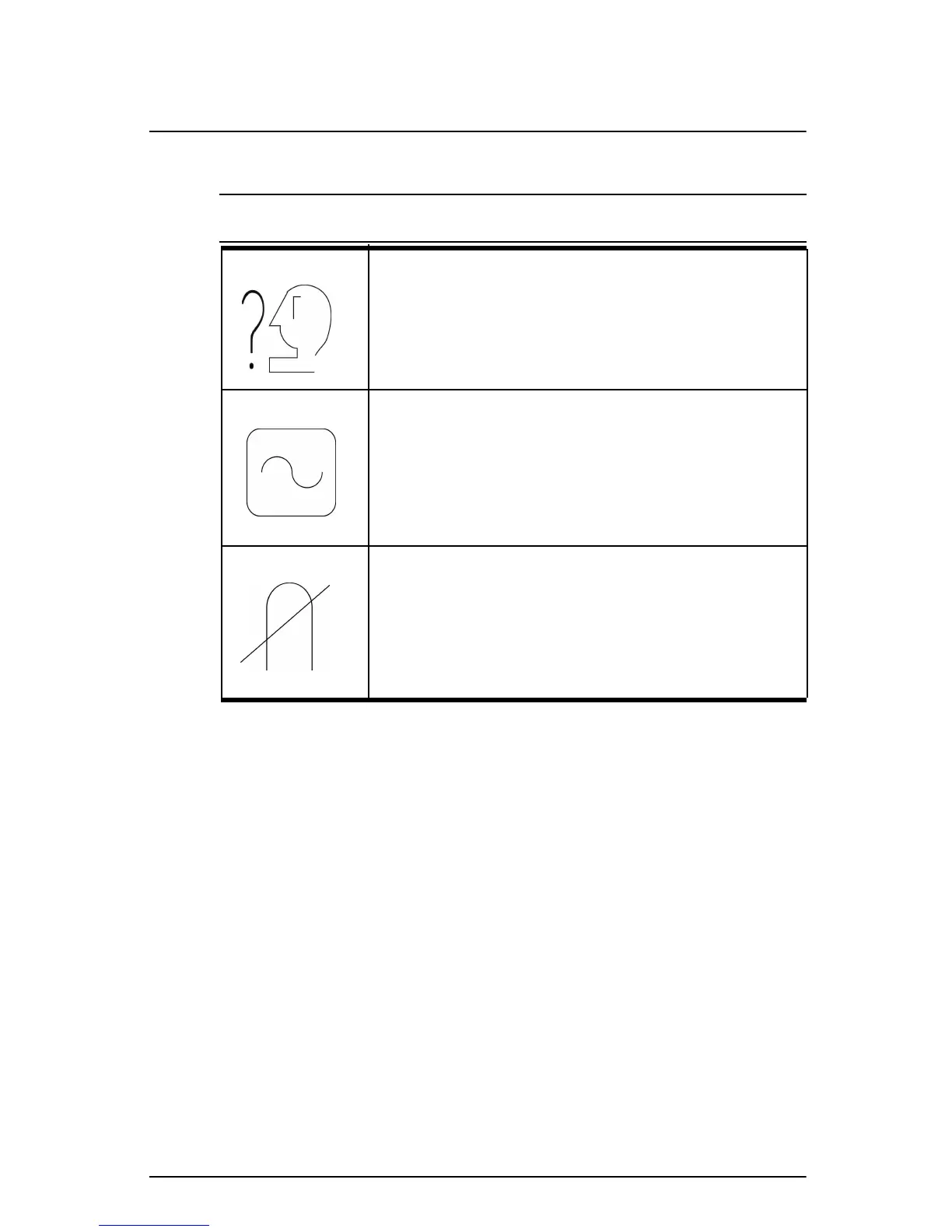

Language selection
The language of the On-Screen Menu can be
selected among English, French, German, Italian
and Spanish. Select with the <> buttons.
Disp. Freq (Input Frequency Display)
Disp. Freq displays the input synchronization signal
frequency.
It identifies the horizontal and vertical frequency
sent to the monitor from the video card currently in
use.
Manual Degaussing
After moving the selector to the degauss icon,
press the 2 button. The degaussing action takes
place a few seconds later.
Note: A sharp snap noise may be heard when
degaussing occurs. This is normal.
Individual Adjustments

Compaq S920 Specifications

General

Screen Size	19” (48 cm) visual diagonal Viewable screen size 18” (46 cm) Anti-Glare Coating
Dot Pitch	0.26 mm (Diagonal) 0.22 mm (Horizontal)
Display Area Default	262 x 350 (mm) typical
Full Scan (H x W)	276 x 368 (mm), depends on signal timing
Display Colors	Infinite
Max. Resolution	1600 Dots x 1200 Lines
Compatibility	All graphic modes with horizontal frequencies between 30 KHz to 96 KHz
Synchronization Horizontal:	30 to 96 KHz
Synchronization Vertical:	50 to 160 Hz
Max Pixel Clock	202 MHz Max.
Input Signal	Video RGB Analog Sync. TTL Separate
Signal Cable	15-pin D-sub connector
Power Input Voltage Frequency	European Models: 200 to 240V AC Other Models: 100 to 240V AC 50-60 Hz
Current Rating	2.0 Amps
Power Consumption	120 W (Max.)

Weight and Dimensions

Dimension (W x H x D)	452 x 459 x 468 mm (approximate) 17.8” x 18.1” x 18.4”
Weight	20 kg Max. 44 lb Max.
