Compaq UPS R3000 XR User Manual

Removal and Replacement Procedures
3-5
11
2 3 4 5 6 7
810
1
9

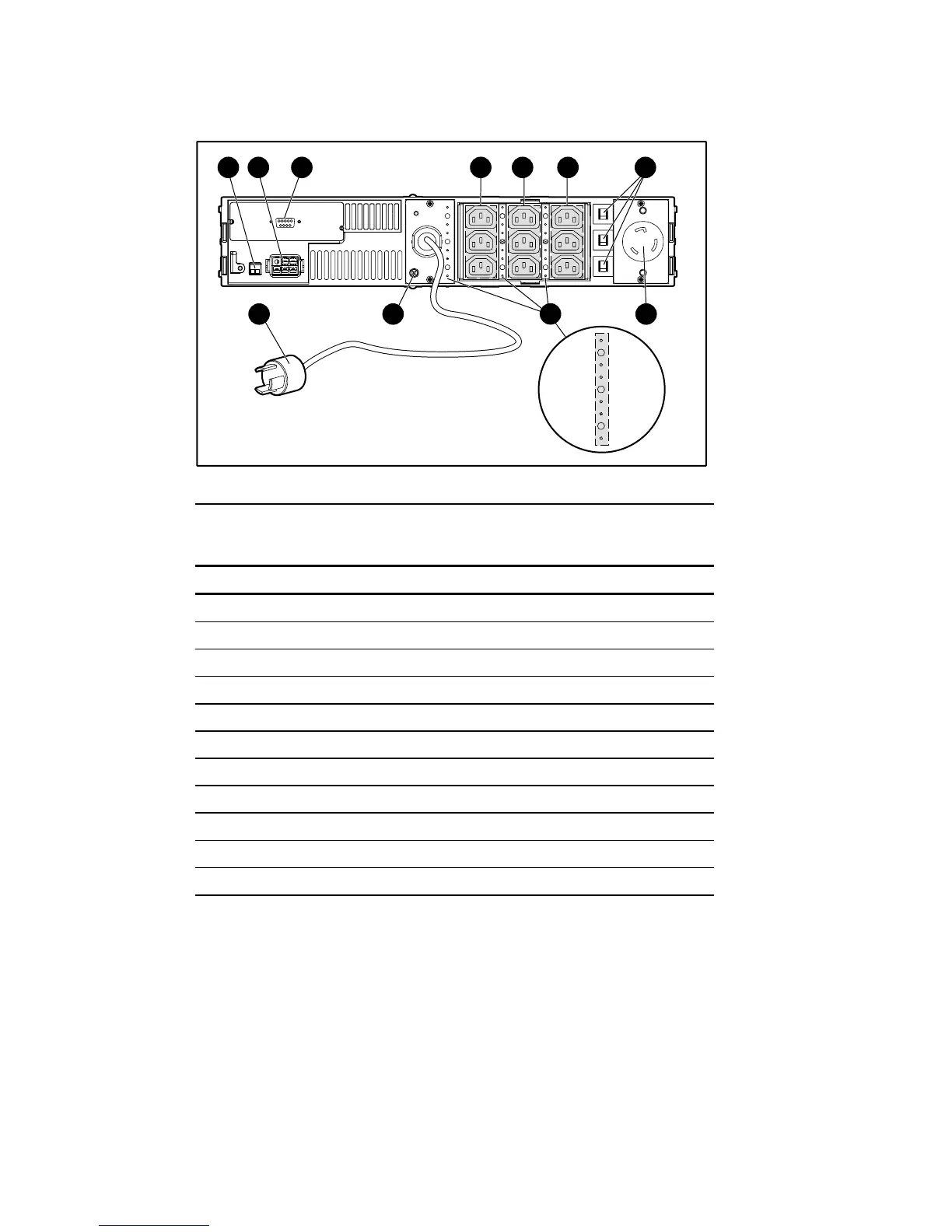

Figure 3-4. High voltage unit rear panel components
Table 3-3
Rear Panel Components
Item Description
1
REPO port
2
ERM connector
3
Communications port/Options slot
4
Load segment 1
5
Load segment 2
6
Load segment 3
7
Load segment circuit protectors
8
Compaq PDU output receptacle (Load segment 1)
9
Cord retention clip attachment locations
:
Ground bonding screw
;
Power cord with plug

Compaq UPS R3000 XR Specifications

General

Power Capacity	3000 VA / 2700 W
Rack Size	2U
Battery Type	Sealed Lead-Acid (SLA)
Frequency	50/60 Hz
Battery Recharge Time	3 hours to 90%
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 45°C
Humidity	0-95% non-condensing
Communication Ports	RS-232, USB
Input Voltage	200-240 VAC
Output Voltage	200-240 VAC
Interface	RS-232, USB
Transfer Time	4 ms typical
Dimensions	85 x 440 x 660 mm
Form Factor	Rack/Tower Convertible
