Compaq V50 User Manual

. . . . . . . . . . . . . . . . . . . . . . . . .
A-2 Specifications
Part Number; 264154-002 - Writer: Marianne Silvetti - Saved by; Marianne Silvetti
Saved date: 09/19/96 10:57 AM - File Name: APPA.DOC
Specifications Continued
Environmental
Requirements
Temperature
Operating
Humidity
32°F to 104°F
20% to 90%
0°C to 40°C
Power Source AC 90-132, 195-262 VAC,
50-60 Hz, <115 watts
Power
Consumption <115 watts
Inrush Current 30A Max at 120 VAC
50A Max at 220 VAC
Input Terminal 15-pin D-type connector with cable

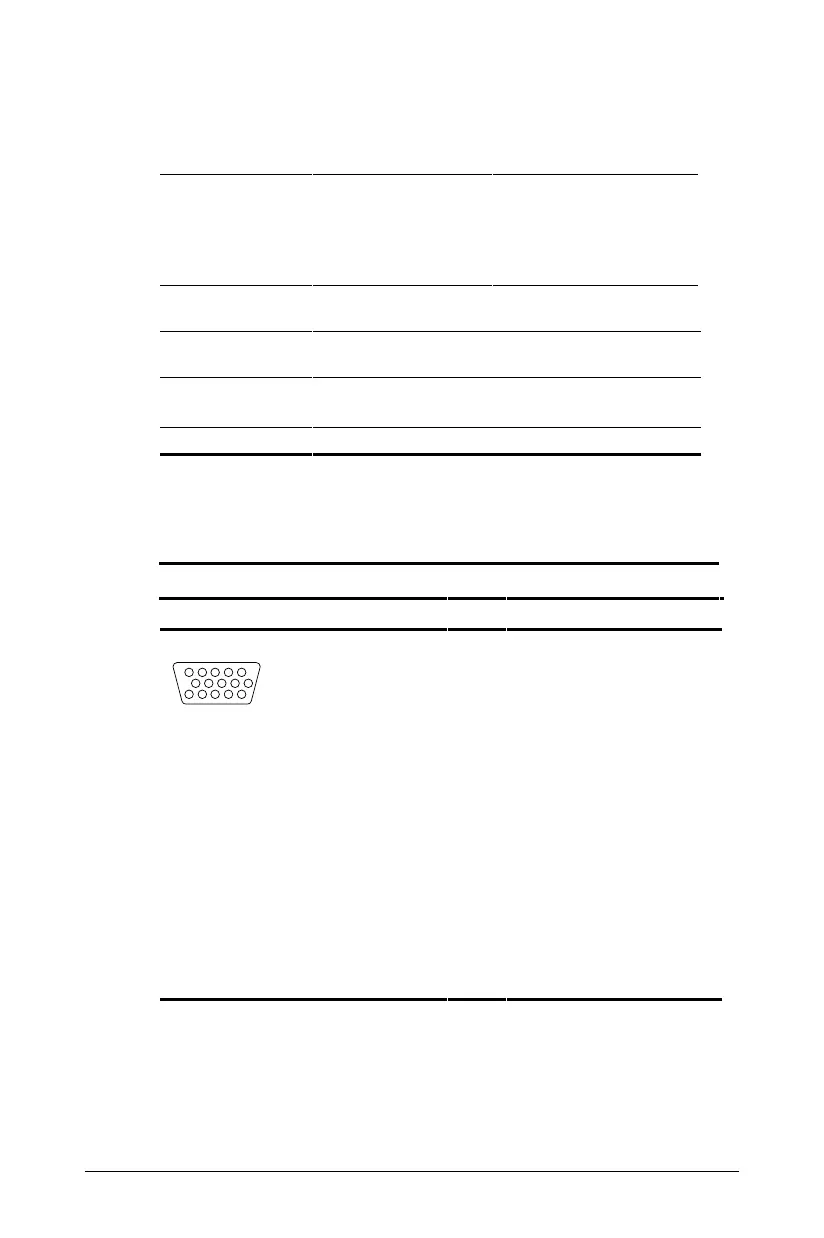

Connector Pin Assignments
Signal Cable
Connector Pin Signal
KEY 10
45
15 14
78
123
13 12 11
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red Video
Green Video/Sync on green
Blue Video
Open
Return
Red Gnd
Green Gnd
Blue Gnd
Reserved (No Pin)
Sync Return
Open
*Bi-Directional Data (SDA)
H-Sync/Composite Sync
V-Sync
*Data Clock (SCL)
*
DDC Signals

Compaq V50 Specifications

General

Brand	Compaq
Model	V50
Category	Monitor
Language	English
