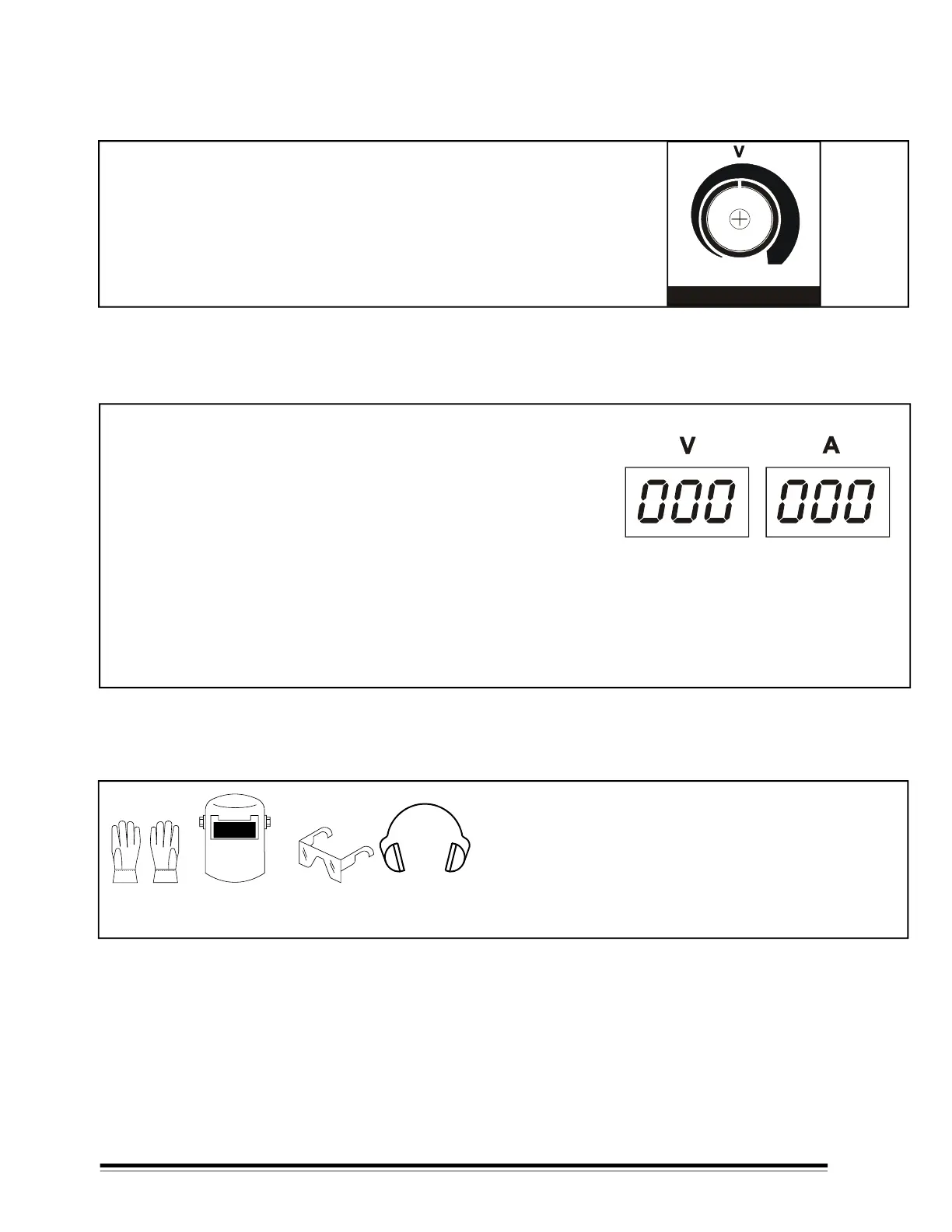

Figure 4-6. Digital voltmeter and ammeter.
DIGITAL VOLTMETER AND AMMETER.
Whith "contactor off". Voltmeter display PRESET voltage and ammeter is turn off.
Whith "contactor on". Voltmeter and ammeter display actual output voltage and
amperage, ammeter remains off if current is zero amperes.
While welding, the meters measure and display the output arc voltage and amperage.
once extinguished the arc, the digital meters retained the arc values approx 4 sec.,
subsequently shown PRESET value.
9
* VOLTAGE ADJUSTMENT control.
To increase arc voltage output, turn control clockwise.
Voltmeter value changes as control is turned. While welding this
control can be adjusted.
Figure 4-5. ''VOLTAGE ADJUST''
4-5 ''VOLTAGE ADJUSTMENT'' CONTROL
4-6 DIGITAL METERS.
Figure 4-7 Safety equipment.
4-7 SAFETY EQUIPMENT.
1.- Insulator gloves.
2.- Safety Glases with side shields.
3.- Welding Helmet.
4.- Ear Muffs.
1 3 2 4
Wear dry insulating gloves, safety glasses with side shields
and a welding helmet with correct filter shade (See ANSI
Z49.1).
Wear aproved ear muffs of ear plugs if noise exposure exceeds
