SECTION 3 - INSTALLATION
3.1 SELECTING A LOCATION AND MOVING WELDING POWER SOURCE.

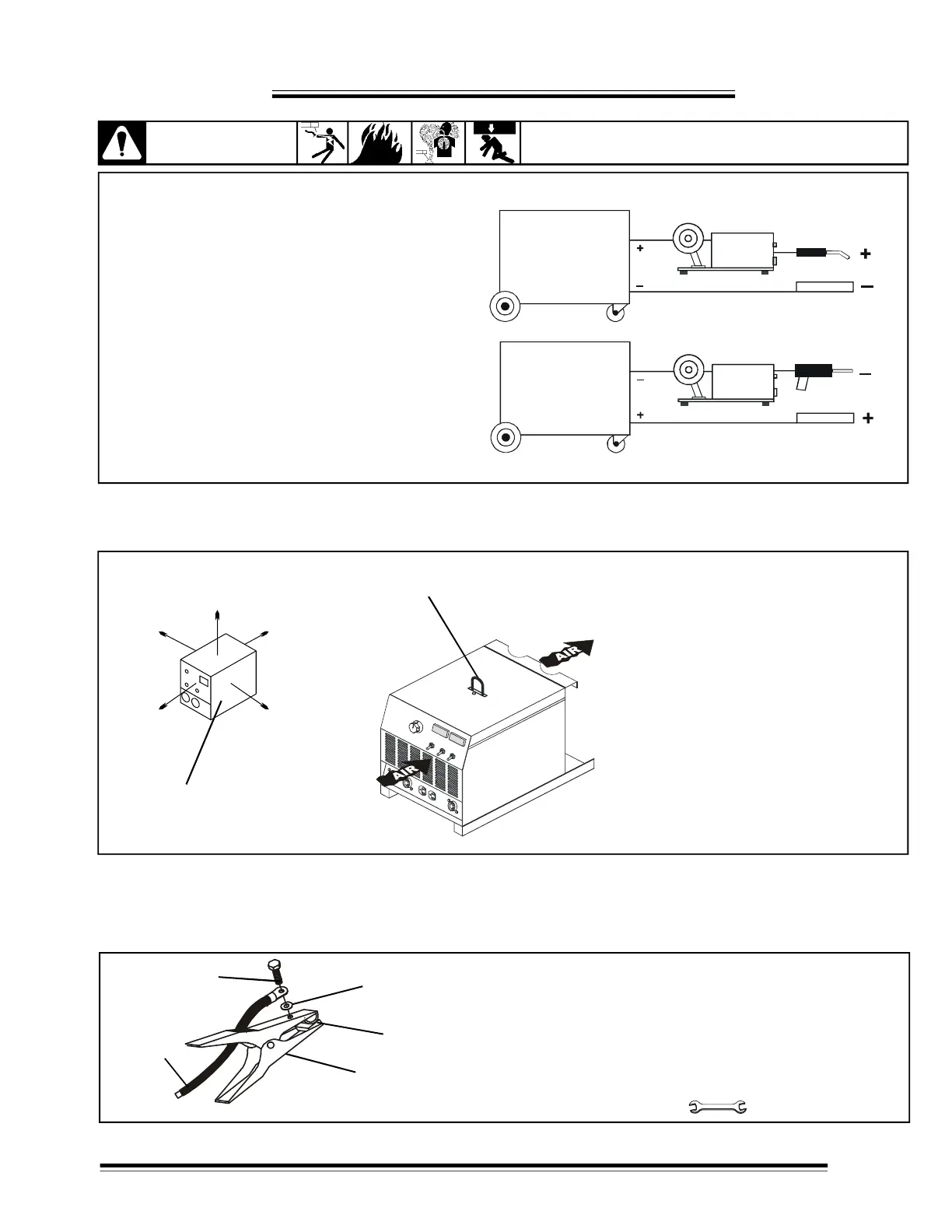

Figure 3-1. Connection for GMAW & FCAW process.
3
CAUTION
SEE SAFETY SIGNAL AT THE BEGINING THIS MANUAL
Figure 3-2 Location and moving welding power source.
2
Rear
Left
Front
Right
Up
1
Figure 3-3 Work clamp.
3-2 INSTALLING WORK CLAMP.
Power Source
14 Pins
Wire
Feeder
GMAW Gun
Work Piece
Power Source
14 Pins
Wire
Feeder
GMAW Gun
Work Piece
-Solid Wire Weld Connection (GMAW);
Reverse Polarity (Electrode Positive.)
-Flux cored weld connection(FCAW); Straight
Polarity (Electrode Negative.)
1.- 10 in (254 mm) open space
on right side and left of unit
for good airflow.
2.- Lifting eye. Use only lifting
eye for lift unit.
9.5, 11.1 mm(3/8, 7/16")
1.- Work Cable from Unit.
2.- Contact Piece.
3.- Screw.
4.- Work Clamp.
5.- Washer.
Tools Needed
3
1
5
2
4
